Western Envirocube Cab 5000 Litre

Product Ref: ENV05

Customer Offloading 3 Year Guarantee Steel Diesel, Gas Oil, HVO Diesel, Gas Oil, HVO Diesel, Gas Oil, HVO Bunded
  • Volume: 5331ltr
  • Weight: 1445.000kg
  • Dimensions: L:3059mm W:1150mm H:2589mm
  • Lead time approx. 3 - 4 working days

    Custom Delivery Required

    Delivery price on application.

    Choose Pump Specification Required:

    updown
    You may also need:
    Boot Cleaner Premium
    Boot Cleaner Premium
    £467.00 ex VAT
    (£560.40 inc VAT)
    65 Litre Fuel Spill Kit - Round Drum OSK6
    65 Litre Fuel Spill Kit - Round Drum OSK6
    £85.00 ex VAT
    (£102.00 inc VAT)
    Cim-Tek Hydrosorb Fuel Filter 70062 - 70 LPM
    Cim-Tek Hydrosorb Fuel Filter 70062 - 70 LPM
    £35.99 ex VAT
    (£43.19 inc VAT)

    Western Envirocube Cab 5000 Litre What is a bunded tank?

    A bunded tank consists of a 'tank within a tank'.

    The inner tank is the primary storage vessel, whilst the outer tank acts as a failsafe.

    In the event of a spill, surplus fuel will safely and securely be stored within the outer tank and an environmental pollution incident will be averted.

    Western Envirocube Cab 5000 Litre Downloadable Documents

    Western Envirocube Cab 5000 Litre Description

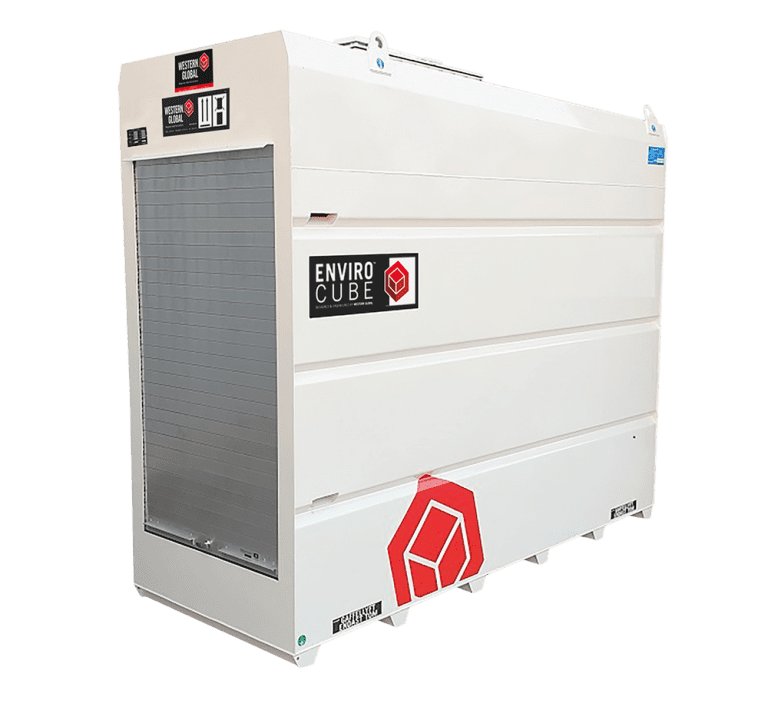

    Envirocube Cab 5000 Litre Static Diesel Dispenser

    110% bunded fuel storage tank to comply with PPG2 ({Pollution Prevention Guidelines) Regulations. Manufactured to BS799 Part 5- Specification for Oil Storage Tanks. Steel tank enclosed in steel, weatherproof outer bund- robust, durable product providing secure storage. Fitted with lifting eyes and fork-liftable base for ease of handling and relocation of tank (empty only). Secure, lockable bund compartment houses pump, nozzle, hoses and feed & return connections.Feed & return hoses can be fed through openings enabling generator to be run whilst compartment locked - helps to prevent theft and vandalism. All outlets are mounted above fuel level helping prevent seepage of fuel. Suction pipe to help remove any fluid from the bund. Inspection cover provides access to inner tank for maintenance and inspection.

    We have a range of pump options for the Western Envirocube Cab including:

    • 240V pump kit with hose and auto shut off nozzle with options for filters and flow meters
    • 110V pump kit with hose and auto shut off nozzle with options for filters and flow meters
    • 12v pump kit including 4m delivery hose and manual nozzle with options for filters and flow meters
    • K2 hand pump kit with 4m delivery hose and manual nozzle
    • There are also other options available, including 24v pumps, 240v pumps, 110v pumps, digital flow meters and filters. Please enquire for details.

    Features

    • Access hatch for easy access to the inner tank for routine maintenance and cleaning.
    • Fully Bunded
    • High Security locking system to protect your liquid assets.
    • Built-in lockable equipment cabinet, providing safety and security from equipment or fuel theft.
    • Roller Shutter Door
    • 600mm depth cabinet
    • 3” Fill Point
    • 2” Fill Point
    • 2" Vent
    • 1 x ½” Generator Feed
    • 2 x ½” Return Ports
    • Contents Gauge
    • 1/2" Pump Feed
    • Inspection Cover
    • Lifting Eyes and Forklift Pockets for Easy Tank Handling and Relocation when Empty.



    Uses and Applications

    Standby Power Application

    The Envirocube Cab tanks are an ideal solution for large projects that require generator power installations, or other standby applications. They can be connected to 2 diesel powered pieces of equipment and refuel equipment via the pump at the same time.

    Complete Fuelling Solution

    Used for transport depots, plant yards and farms -offering a complete static fuelling point on site, reducing the risk of spills and unnecessary tank movements.

    Bulk Fuel Storage

    Envirocube Cab static tanks can be used to refuel vehicles, construction machinery and agricultural equipment efficiently. Ideal for large equipment fleets that require constant fuel storage on site - allowing significant cost savings with purchasing of fuel.



    ENV05 Specifications:

     Model  ENV05
     Capacity - Nominal  5331 Litres
     Capacity - Safe Fill (95%)  5064 Litres
     Dimensions (L x W x H)  3059 x 1150 x 2589 mm
     Weight - Empty  1445 kg
     Design Approvals  BS799 Part 5 & to Comply with PPG2 Regulations, Optional MSBFS2018:3





    Pumps Explained

    12V Pump

    Electric fuel pump for dispensing diesel.

    • 12v Pump, 4 m cable c/w battery clips
    • Heavy duty 3/4'' 4 m delivery hose
    • 1.2 m suction hose
    • Bypass
    • Mechanical flow meter

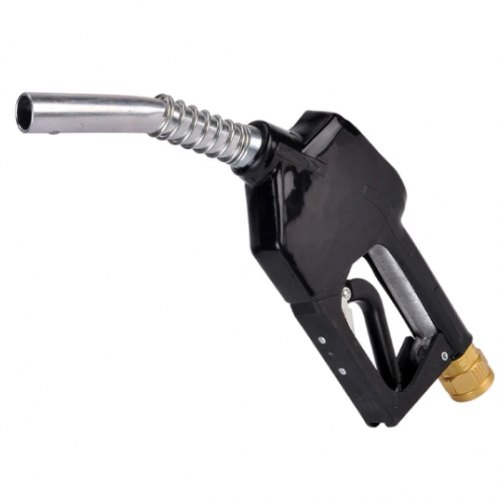

    • 3/4'' Automatic shut off trigger nozzle
    • 45 lpm flow rate
    • 30m duty run-time



    Hand Pump

    • Manual operation
    • Semi Rotary fuel pump
    • Suction Hose
    • Heavy Duty 3/4'' 4 m Delivery hose
    • Manual Operating trigger nozzle
    • Continuous duty cycle



    240v Pump

    Electric fuel pump for dispensing diesel

    • 240v pump, 4 m cable c/w battery clips
    • Heavy duty 1'' 4 m delivery hose
    • 1.2 m suction hose
    • Bypass
    • 1'' Automatic shut off trigger nozzle
    • 80 lpm flow rate
    • 30m duty run-time



    110 v Pump

    Electric fuel pump for dispensing diesel

    • 240v pump, 4 m cable c/w battery clips
    • Heavy duty 1'' 4 m delivery hose
    • Mechanical Flow Meter
    • 1.2 m suction hose
    • Bypass
    • 1'' Automatic shut off trigger nozzle
    • 80 lpm flow rate
    • 30m duty run-time



    Images for representative purposes only



    Western Envirocube Cab 5000 Litre Specification

    • Product Code: WT
    • Delivery Options: Customer Offloading
    • Guarantee: 3 Year Guarantee
    • Made From: Steel
    • Suitable For Fuel: Diesel, Gas Oil, HVO
    • Tank Type: Bunded

    Western Envirocube Cab 5000 Litre Delivery Information

    Our supplier can deliver to mainland UK and Northern Ireland locations but excludes offshore islands and locations and delivery is not included in the tank price

    Delivery is a kerbside delivery service only and not a "drop at your door service".

    Arrangements must be made by the customer to manoeuvre tanks into position.

    Deliveries can be made by articulated lorry and it is the customers' responsibility to ensure safe and adequate access for large lorries plus off loading facilities at the delivery address.

    Off loading of heavy items should be made by fork lift or similar heavy lifting equipment

    Tanks cannot be left without a customer signature

    Western Envirocube Cab 5000 Litre Tank Compliance

    Envirocube Cab static 110% bunded fuel tank

    Built to BS799 Part 5 & to comply with PPG2 Regulations 110% bunded fuel storage tank to comply with PPG2 (Pollution Prevention Guidelines) Regulations.

    Manufactured to BS799 Part 5- Specification for Oil Storage Tanks

    Optional MSBFS2018:3
