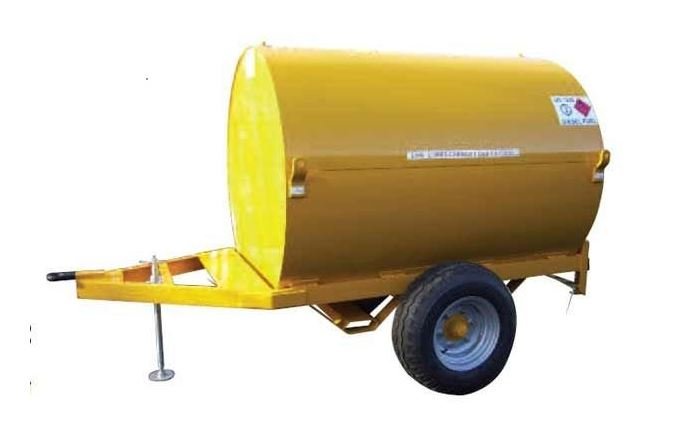

2140 Litre UN Approved Bunded Diesel & Adblue Site Tow Bowser

Product Ref: 2140SITE120AD

Comes supplied K2 Semi rotary hand pump fitted with 15' of 1" fuel hose c/w trigger nozzle and stowed on bracket

Customer Offloading Plastic, Steel Plastic, Steel Diesel, Gas Oil, AdBlue, HVO Diesel, Gas Oil, AdBlue, HVO Diesel, Gas Oil, AdBlue, HVO Diesel, Gas Oil, AdBlue, HVO Bunded, Transportable
  • Volume: 2260ltr
  • Weight: 744.000kg
  • Dimensions: L:3378mm W:1803mm H:1982mm
  • Lead time approx. 8 weeks but please check for current lead time

    Custom Delivery Required

    Delivery price on application.

    Choose Pump Required:

    updown
    from £5,570.00 ex VAT
    (£6,684.00 inc VAT)

    2140 Litre UN Approved Bunded Diesel & Adblue Site Tow Bowser Tank Compliance

    Fuel bowser manufacturers offer the option to have a Bunded Diesel Twin Axle EU Highway Bowsertwin axle highway towable fuel bowser (single axle trailer also available) to suit customers personal preferences.

    This bunded diesel twin axle EU Highway Bowser twin axle road towable fuel bowser offers a comfortable and reliable towing capability.

    The bunded diesel twin axle EU Highway Bowser trailer is fully welded to ensure its reliability as many other manufacturers offer trailers which are bolted together in which may come loose over time.

    Constructed from a polyethylene inner tank to ensure a clean storage solution of fuels, secured in a steel outer bund in which has fork truck lifting points (for when the tank is out of the chassis), Four lifting points and lockable rear door

    The strong twin axle chassis is manufactured for transporting a 2140 litre fuel bowser which is fully U.N certified for 10 Years. Please see link https://www.hse.gov.uk/cdg/commonproblems/bowsers.htm

    2140 Litre UN Approved Bunded Diesel & Adblue Site Tow Bowser Downloadable Documents

    2140 Litre UN Approved Bunded Diesel & Adblue Site Tow Bowser Video

    2140 Litre UN Approved Bunded Diesel & Adblue Site Tow Bowser Description

    2140 LITRE U.N. APPROVED BUNDED DIESEL and 120L Adblue - Site Tow Bowser

    (PLEASE NOTE THE SECOND IMAGE IS FOR ILLUSTRATION PURPOSES ONLY)

    2140 litre (470 gallons) bunded diesel transportable skid bowser with Additional 120L Adblue Tank designed for off-road use.

    Like to view the bowser ? Please click on the video tab below for a walk around showing the design & features of this bowser

    Chassis: Constructed from 100 x 50 RSC fully welded with front standing plate and A frame drawbar. Hot dip galvanized

    Axle/Suspension: Single solid beam axle fitted with heavy duty 6 stud 205mm pcd hubs fitted with taper roller bearings

    Wheels & Tyres: 2 no 10.75" x 15.3" flotation tyres on 6 stud rims

    Coupling: 2" forged welded ring eye

    Ancillary Equipment: Telescopic screw jack on drawbar

    Outer bund tank:

    • Cylindrical in section with removable top section for tank access
    • Rear access door fitted with stainless steel hinge and fully lockable
    • Bund contains 110% of inner tank content
    • 4 lifting eyes
    • Fork lift pockets (for use when tank off of chassis only)

    Inner Fuel Tank:

    • Constructed from translucent heavy duty polyethylene
    • 2" filler cap & chain
    • 2" vent valve
    • Top mounted 1/2" BSP feed & return points
    • Ball valve in base of tank to pump
    • Pressure relief valve

    Pump:

    • K2 Semi rotary hand pump fitted with 15' of 1" fuel hose c/w trigger nozzle and stowed on bracket
    • Fitted with in-line 'Y' strainer
    • All contained within lockable bund area
    • 12V Pump upgrade available at extra cost

    Finish:

    • Primer & 2 top coats - single British Standard (BS) colour



    ADBLUE TANK:

    TANK: Polyethylene with stainless moulded sockets, 1/2" sightglass, vent, 2" filler and 2" pump socket, c/w 2" stainless retaining strap. finished in blue.

    FRAME: Hot dipped galvanised, with 3 counter sunk holes for mounting to the stand plate of the bowser. Easy fitting, 3x M10 holes to be drilled.

    PUMP OPTIONS: Rotary hand pump or electric pump c/w 3-metre hose and trigger nozzle.

    Size of Adblue Tank (915mm x 270mm x 730mmH) - Unladen Weight: 44kg



    2140 Litre UN Approved Bunded Diesel & Adblue Site Tow Bowser Specification

    • Product Code: TE
    • Delivery Options: Customer Offloading
    • Made From: Plastic, Steel
    • Suitable For Fuel: Diesel, Gas Oil, AdBlue, HVO
    • Tank Type: Bunded, Transportable
    • UN Certified / Approved for Transport under ADR: Yes

    2140 Litre UN Approved Bunded Diesel & Adblue Site Tow Bowser Delivery Information

    Our supplier can deliver to mainland UK and Northern Ireland locations but excludes offshore islands and locations and delivery is not included in the tank price

    Delivery is a kerbside delivery service only and not a "drop at your door service".

    Arrangements must be made by the customer to manoeuvre tanks into position.

    Deliveries can be made by articulated lorry and it is the customers' responsibility to ensure safe and adequate access for large lorries plus off loading facilities at the delivery address.

    Off loading of heavy items should be made by fork lift with extended forks or similar heavy lifting equipment

    Tanks cannot be left without a customer signature

    2140 Litre UN Approved Bunded Diesel & Adblue Site Tow Bowser Returns Information

    Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

    All Items must be returned unused, refunds cannot be issued for used or previously installed items.

    Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

    If you wish to return goods, please complete the form on this page to provide further information.

    Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

    Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

    Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.
