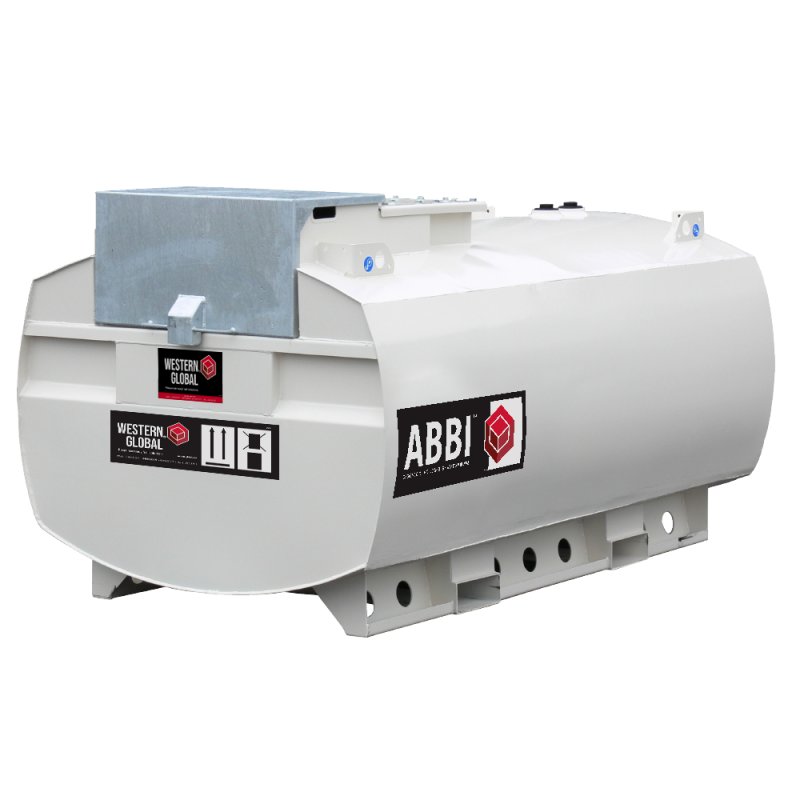

Western ABBI 1940 Litre Skid Bowser

Western ABBI 1940 Litre Diesel Skid Bowser What is a bunded tank?

A bunded tank consists of a 'tank within a tank'.

The inner tank is the primary storage vessel, whilst the outer tank acts as a failsafe.

In the event of a spill, surplus fuel will safely and securely be stored within the outer tank and an environmental pollution incident will be averted.

Western ABBI 1940 Litre Diesel Skid Bowser Downloadable Documents

Specification Sheet

Information Sheet

Pump Selection Sheet

Pumps Available for Western Tanks

Western ABBI 1940 Litre Diesel Skid Bowser Description

Western ABBI 20ART Skid Bowser

The Western ABBI 1940 Litre skid bowser is a fully transportable diesel tank which is approved for transport of diesel fuel under the ADR Regulations. The Western ABBI is fully bunded steel in steel to ensure environmental compliance with Pollution Prevention Guidelines (PPG2). The ABBI Skid Bowsers have larger cabinets than the Transcubes enabling you to store larger pumps and hose reels as necessary. The ABBI bowsers have easy floor access, meaning the users do not need to climb on the bowser to use pumping equipment. Also, as standard, is the manhole access for inner tank inspection and maintenance.

We have a range of pump options for the Western ABBI's including:

12v pump kit including 4 m delivery hose and manual nozzle
K2 hand pump kit with 4 m delivery hose and manual nozzle
There are other options available, including 24v pumps, 240v pumps, 110v pumps, digital flow meters and filters. Please enquire for details.

Key Benefits of Western ABBI DELUXE

Full load lifting eyes and internal baffles designed to allow handling of the ABBI full of fuel
2 way forklift pockets for easy manoeuvring
Secure lockable access hatch to house pumps (electric or hand), and feed and return connections for up to 1 generator

ABBI 20ART Specification

1 x 3” Fill Cap
1 x 2” Fill Cap
Contents Gauge
1” Pump Feed
Pressure / Vacuum Vent
Optional Generator Feed & Return Ports
Pump Bracket
Tank Inspection Plate

Applications and Uses

Fast Mobile Refuelling

A safe and reliable fuel storage solution for any location that requires quick refuelling of construction or auxiliary equipment.

Limited-Access Work Sites

Due to its mobile design, the ABBI tank can transport fuel to any site - reaching even the most difficult locations. The ABBI can be safely lifted but crane or forklift precisely and quickly.

Small and Short-Term Fuel Requirement

An ideal solution for short term, on site fuel storage. The ABBI can be used as a standby tank or a mobile refueller - offering both applications as one unit.

10ART Specifications
Model	20ART
Capacity (Nominal)	1940 Litres
Capacity (safe fill 95%)	1843 Litres
Dimensions (L x W x H)	2300 x 1410 x 1280 mm
Weight - Empty	705 kg
Weight - Full	2450 kg
Design Approvals	UN-IBC

Pumps Explained

12V Pump

Electric fuel pump for dispensing diesel.

12v Pump, 4 m cable c/w battery clips
Heavy duty 3/4'' 4 m delivery hose
1.2 m suction hose
Bypass
Mechanical flow meter
3/4'' Automatic shut off trigger nozzle
45 LPM flow rate
30 m duty run-time

Hand Pump

Manual operation
Semi Rotary fuel pump
Suction Hose
Heavy Duty 3/4'' 4 m Delivery hose
Manual Operating trigger nozzle
Continuous duty cycle

Western ABBI 1940 Litre Diesel Skid Bowser Specification

Product Code: WT
Delivery Options: Customer Offloading
Guarantee: 8 Year Warranty
Made From: Steel
Suitable For Fuel: Diesel, Gas Oil, HVO
Tank Type: Bunded, Transportable
UN Certified / Approved for Transport under ADR: Yes
Footprint (L+W): 2300mm + 1410mm

Western ABBI 1940 Litre Diesel Skid Bowser Delivery Information

Our supplier can deliver to mainland UK and Northern Ireland locations but excludes offshore islands and locations and delivery is not included in the tank price

Delivery is a kerbside delivery service only and not a "drop at your door service".

Arrangements must be made by the customer to manoeuvre tanks into position.

Deliveries can be made by articulated lorry and it is the customers' responsibility to ensure safe and adequate access for large lorries plus off loading facilities at the delivery address.

Off loading of heavy items should be made by fork lift or similar heavy lifting equipment

Tanks cannot be left without a customer signature

Western ABBI 1940 Litre Diesel Skid Bowser Tank Compliance

A steel in steel U.N (United Nations) Approved IBC (Intermediate Bulk Container) suitable for transporting diesel fuel on the highway.

The new ABBI-ART Mk2 is fully bunded to ensure environmental compliance with Pollution Prevention Guidelines (PPG2)

Western ABBI 1940 Litre Diesel Skid Bowser Returns Information

Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

All Items must be returned unused, refunds cannot be issued for used or previously installed items.

Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

If you wish to return goods, please complete the form on this page to provide further information.

Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.

View Fuel Tank Shop return policy now.
