950 Litre Bunded Site Tow Diesel Bowser

Product Ref: 950SITE

Comes supplied with 1/2" BSP feed and return connections

Customer Offloading Steel Diesel, Gas Oil, HVO Diesel, Gas Oil, HVO Diesel, Gas Oil, HVO Bunded, Transportable
  • Volume: 950ltr
  • Weight: 450.000kg
  • Dimensions: L:3175mm W:1448mm H:1498mm
  • Lead time approx. 7 - 14 working days

    Custom Delivery Required

    Delivery price on application.

    Choose Pump Required:

    You may also need:
    Boot Cleaner Premium
    Boot Cleaner Premium
    £463.00 ex VAT
    (£555.60 inc VAT)
    65 Litre Fuel Spill Kit - Round Drum OSK6
    65 Litre Fuel Spill Kit - Round Drum OSK6
    £85.00 ex VAT
    (£102.00 inc VAT)

    950 Litre Bunded Site Tow Diesel Bowser Tank Compliance

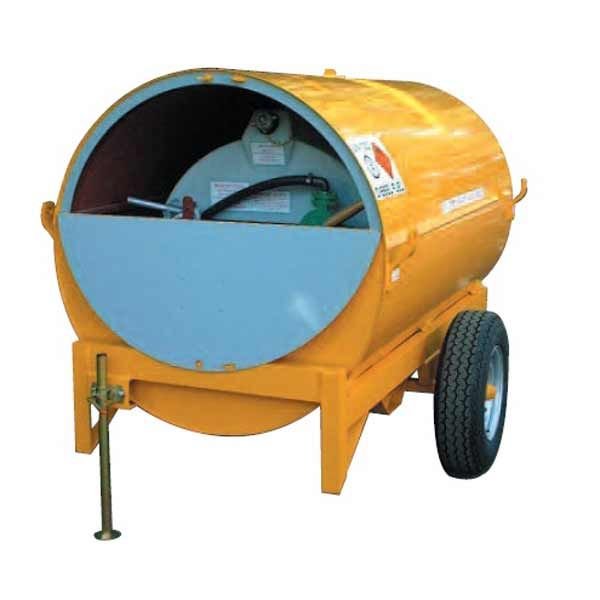

    The 950 litre bunded diesel site tow bowser is constructed from a polyethylene inner tank to ensure a clean fuel storage solution, secured in a steel outer bund.

    This bunded diesel site tow bowser comes with lockable rear door, four lifting points and two fork sockets (for when the tank is out of the chassis). Complete with a fully welded single axle site towable trailer. The A-frame trailer is manufactured from steel and then galvanised as standard, Painted chassis are available upon request

    The 950 litre bunded diesel site tow bowser is fully U.N. certified for 10 YEARS for the storage and transportation of fuel. Please see link https://www.hse.gov.uk/cdg/commonproblems/bowsers.htm

    950 Litre Bunded Site Tow Diesel Bowser Downloadable Documents

    950 Litre Bunded Site Tow Diesel Bowser Description

    950 Litre Bunded Diesel Bowser - Site Bowser

    950 litre (208 gallons) bunded transportable diesel bowser designed for off-road use.

    Chassis: Constructed from 100 x 50 RSC fully welded with front standing plate and A frame drawbar

    Axle/Suspension: Single solid beam axle fitted welded to chassis and fitted with 4 stud unbraked hubs

    Wheels & Tyres: 2 no 175 x 13 x 8 ply radial tyres fitted to 4 stud 5 1/2" pcd rims

    Coupling: 2" forged solid ring eye

    Ancillary Equipment: Rear support stand & front sliding prop stand

    Outer bund tank:

    • Cylindrical in section with removable top section for tank access
    • Rear access door fitted with stainless steel hinge and fully lockable
    • Bund contains110% of inner tank content
    • 4 lifting eyes
    • Fork lift pockets (for use when tank off of chassis only)

    Inner Fuel Tank:

    • Constructed from translucent heavy duty polyethylene
    • 2" Filler cap & chain
    • 1" manual vent valve
    • Top mounted 1/2" BSP feed & return points
    • Ball valve in base of tank to pump
    • Pressure relief valve


    • K1 Semi rotary hand pump fitted with 15' of 1" fuel hose c/w trigger nozzle and stowed on bracket
    • Fitted with in-line 'Y' strainer
    • All contained within lockable bund area
    • 12V Pump upgrade available at extra cost


    • Primer & 2 top coats - single British Standard (BS) colour



    950 Litre Bunded Site Tow Diesel Bowser Specification

    • Product Code: TE
    • Delivery Options: Customer Offloading
    • Made From: Steel
    • Suitable For Fuel: Diesel, Gas Oil, HVO
    • Tank Type: Bunded, Transportable
