Dymac Setanta Fuel Warrior 1000L - Road Tow Model
Product Ref: SFW-RT-1000L
Custom Delivery Required
Delivery price on application.
login to saveDymac Setanta Fuel Warrior 1000L - Road Tow Model Safety Recommendations
- Confirm towing vehicle is rated for 1000L diesel load
- Always use wheel chocks on uneven ground
- Comply wit local towing regulations
- Avoid overfilling beyond maximum safe fill level

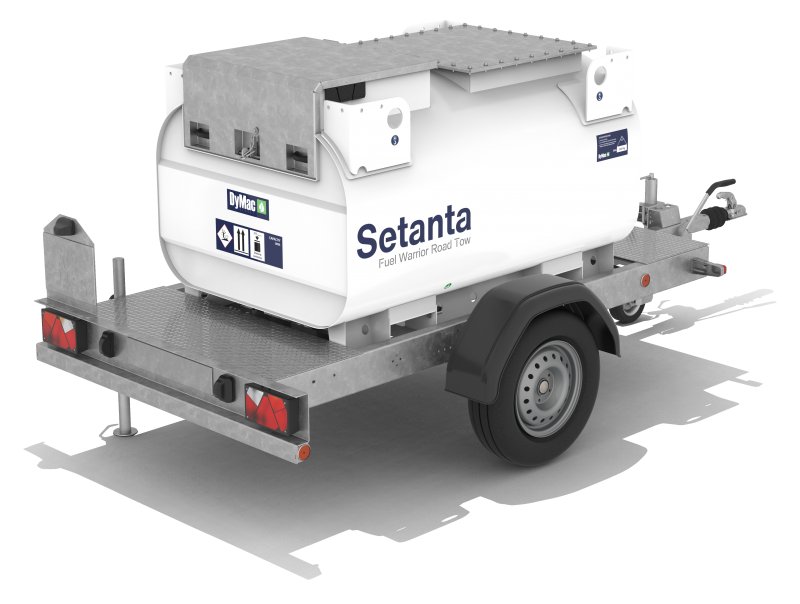

Dymac Setanta Fuel Warrior 1000L - Road Tow Model
Mobile, high-strength Fuel bowser for on-site & off-grid refuelling.
The Fuel Warrior 1000L Row Tow model is engineered for professionals needing safe deisel transport on UK and EU roads.
Built on a type-approved towing chassis, it deliveres exceptional mobility and reliability for on-the-go fuel distribution across farms, construction sites, forestry operations and remote locations.
This is the ideal bowser for contractors or farmers who regularly move fuel between different worksites.
Recommended Applications
- Agricultural contractors travelling between farms
- Plant hire operators needing mobile refuelling
- Construction & civil engineering with multiple work zones
- Utility companies & roadside services
- Forestry & quarry operations
- Long-distance fleet support vehicles
The Fuel Warrior comes complete with:
- FILL VENT - 1x 2" BSP Galvanised External Threaded Pipe with 2" BSP Cap.
- FILL - 1x 3" BSP Galvanised External Threaded Pipe with 3" BSP Fusible Cap.
- P.VENT - 1x 2" NPT Internal Threaded Coupling with 2" Pressure Vent.
- LEVEL GAUGE - 1x 1.5" BSP Internal Threaded Coupling with Level Gauge.
- SPARE - 1x 1.5" BSP Internal Threaded Coupling with 1.5" MS Galvanised Plug.
- FEED - 1x 1.5" BSP Pipe Block with 1 port & Galvanised Metal Stopper, 1" Feed Downpipe with 1" HDPE NRV & 1.5" Internal Threaded Coupling.
- E.VENT - 1x 1/4" BSP Internal Threaded Coupling with 1/4" LEV (actuator).
- PUMP ANTISIPHON - 1x 1/8" BSP Internal Threaded Coupling with 1/8" MS Galvanised Plug.
Key Features & Benefits
Type-Approved Road Tow Chassis
Approved for legal towing behind road vehicles.
Heavy-Duty Suspensions & Braking
Ensures safe transport even on uneven ground.
Fully Bunded Diesel Bowser
Environmental compliance with 110% bunding
High Stability for Towing
Low centre of gravity and reinforced drawbar for secure movement.
Lockable Dispense Area
Protects pumps, hoses, and meters from weather and theft.
Fast Setup On Arrival
Simply unhitch, connect power to pump and begin dispensing
Certified to:
ULCS601, UL 142,UN31A/Y & ADR approved for transporting on all major freeways when full of fluids. CE marked.
Specifications
| Baffle Thickness | 2mm |
| Nominal Capacity | 1025 Litres |
| Safe Fill Capacity | 974 Litres |
| Dry Weight | 505 kg |
| Length | 1700 mm |
| Width | 1140 mm |
| Height | 1080 mm |
Single Axel Galvanised Road Tow Trailer Specifications
| Maximum Load Capacity | 1800 kg |
| Length | 3308 mm |
| Width | 1917 mm |
| Height | 773 mm |
| Trailer Weight | 280 - 305 kg |
Dymac Setanta Fuel Warrior 1000L - Road Tow Model Specification
- Product Code: DYM
- Delivery Options: Customer Offloading
- Guarantee: 5 Year Guarantee
- Made From: Steel
- Suitable For Fuel: Diesel, Gas Oil, HVO
- Tank Type: Bunded, Transportable
- UN Certified / Approved for Transport under ADR: Yes
Dymac Setanta Fuel Warrior 1000L - Road Tow Model Frequently Asked Questions (FAQs)
Can this be legally towed on public roads?
Yes - it's fully type-approved
Is it suitable for petrol?
No, diesel and gas oil only
Does it have braking?
Yes - overrun braking is included depending on model
