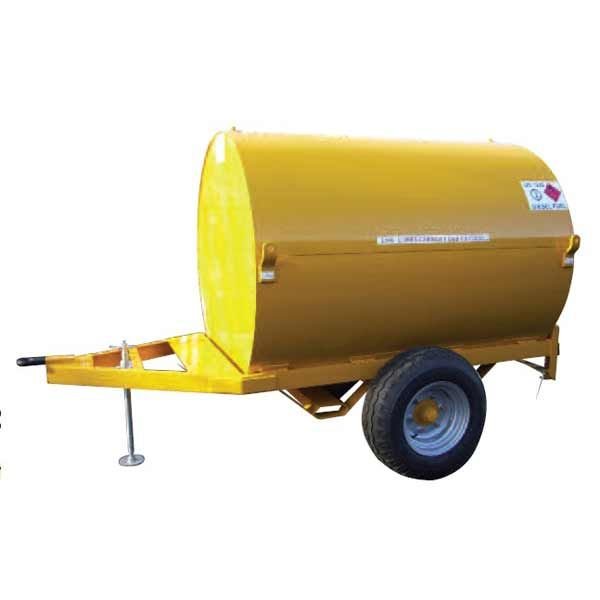

2140 Litre UN Approved Site Tow Diesel Bowser

Product Ref: 2140SITE

Comes supplied with 1/2" BSP feed and return connections

Customer Offloading Steel Diesel, Gas Oil, HVO Diesel, Gas Oil, HVO Diesel, Gas Oil, HVO Bunded, Transportable
  • Volume: 2140ltr
  • Weight: 700.000kg
  • Dimensions: L:3378mm W:1803mm H:1982mm
  • Lead time approx. 3 - 4 weeks but please check for current lead time

    Custom Delivery Required

    Delivery price on application.

    Choose Pump Required:

    updown
    from £4,735.00 ex VAT
    (£5,682.00 inc VAT)
    You may also need:
    Boot Cleaner Premium
    Boot Cleaner Premium
    £467.00 ex VAT
    (£560.40 inc VAT)
    65 Litre Fuel Spill Kit - Round Drum OSK6
    65 Litre Fuel Spill Kit - Round Drum OSK6
    £89.00 ex VAT
    (£106.80 inc VAT)

    2140 Litre UN Approved Site Tow Diesel Bowser Tank Compliance

    All of the fuel bowsers in this range come with the option of being fitted to a highway towable chassis, site towable chassis or as a skidbase static tank.

    This 2140 litre site towable fuel bowser is fully U.N certified for 10 YEARS and comes complete with lifting points, fork truck sockets (for when the tank is not in the chassis), lockable rear door, stabilizing drop stands and fitted into a fully welded site tow chassis which is very capable offroad.

    These fuel bowser tanks have a polyethylene inner tank to ensure a clean fuel storage solution and secured in a steel outer bund



    2140 Litre UN Approved Site Tow Diesel Bowser Downloadable Documents

    2140 Litre UN Approved Site Tow Diesel Bowser Video

    2140 Litre UN Approved Site Tow Diesel Bowser Description

    2140 Litre UN Approved Bunded Diesel Bowser - Site Bowser

    2140 litre (470 gallons) bunded transportable diesel bowser designed for off-road use.

    Like to view the bowser ? Please click on the video tab below for a walk around showing the design & features of this bowser

    Chassis: Constructed from 100 x 50 RSC fully welded with front standing plate and A frame drawbar. Hot dip galvanized

    Axle/Suspension: Single solid beam axle fitted with heavy duty 6 stud 205mm pcd hubs fitted with taper roller bearings

    Wheels & Tyres: 2 no 10.75" x 15.3" flotation tyres on 6 stud rims

    Coupling: 2" forged welded ring eye

    Ancillary Equipment: Telescopic screw jack on drawbar

    Outer bund tank:

    • Cylindrical in section with removable top section for tank access
    • Rear access door fitted with stainless steel hinge and fully lockable
    • Bund contains 110% of inner tank content
    • 4 lifting eyes
    • Fork lift pockets (for use when tank off of chassis only)

    Inner Fuel Tank:

    • Constructed from translucent heavy duty polyethylene
    • 2" filler cap & chain
    • 2" vent valve
    • Top mounted 1/2" BSP feed & return points
    • Ball valve in base of tank to pump
    • Pressure relief valve

    Pump:

    • K2 Semi rotary hand pump fitted with 15' of 1" fuel hose c/w trigger nozzle and stowed on bracket
    • Fitted with in-line 'Y' strainer
    • All contained within lockable bund area
    • 12V Pump upgrade available at extra cost

    Finish:

    • Primer & 2 top coats - single British Standard (BS) colour



    2140 Litre UN Approved Site Tow Diesel Bowser Specification

    • Product Code: TE
    • Delivery Options: Customer Offloading
    • Made From: Steel
    • Suitable For Fuel: Diesel, Gas Oil, HVO
    • Tank Type: Bunded, Transportable
