2140 Litre UN Approved EU Highway Diesel & Adblue Bowser - Twin Axle

Product Ref: 2140ROADTWIN120AD

Comes supplied K2 Semi rotary hand pump fitted with 15' of 1" fuel hose c/w trigger nozzle and stowed on bracket

Customer Offloading Plastic, Steel Plastic, Steel Diesel, Gas Oil, AdBlue, HVO Diesel, Gas Oil, AdBlue, HVO Diesel, Gas Oil, AdBlue, HVO Diesel, Gas Oil, AdBlue, HVO Bunded, Transportable
  • Volume: 2260ltr
  • Weight: 944.000kg
  • Dimensions: L:3582mm W:1790mm H:1930mm
  • Lead time approx. 8 weeks but please check for current lead time

    Custom Delivery Required

    Delivery price on application.

    Choose Bowser Hitch:
    Choose Pump Required:

    updown
    from £6,840.00 ex VAT
    (£8,208.00 inc VAT)

    2140 Litre UN Approved EU Highway Diesel & Adblue Bowser - Twin Axle Tank Compliance

    Fuel bowser manufacturers offer the option to have a Bunded Diesel Twin Axle EU Highway Bowsertwin axle highway towable fuel bowser (single axle trailer also available) to suit customers personal preferences.

    This bunded diesel twin axle EU Highway Bowser twin axle road towable fuel bowser offers a comfortable and reliable towing capability.

    The bunded diesel twin axle EU Highway Bowser trailer is fully welded to ensure its reliability as many other manufacturers offer trailers which are bolted together in which may come loose over time.

    Constructed from a polyethylene inner tank to ensure a clean storage solution of fuels, secured in a steel outer bund in which has fork truck lifting points (for when the tank is out of the chassis), Four lifting points and lockable rear door

    The strong twin axle chassis is manufactured for transporting a 2140 litre fuel bowser which is fully U.N certified for 10 Years. Please see link https://www.hse.gov.uk/cdg/commonproblems/bowsers.htm

    2140 Litre UN Approved EU Highway Diesel & Adblue Bowser - Twin Axle Downloadable Documents

    2140 Litre UN Approved EU Highway Diesel & Adblue Bowser - Twin Axle Video

    2140 Litre UN Approved EU Highway Diesel & Adblue Bowser - Twin Axle Description

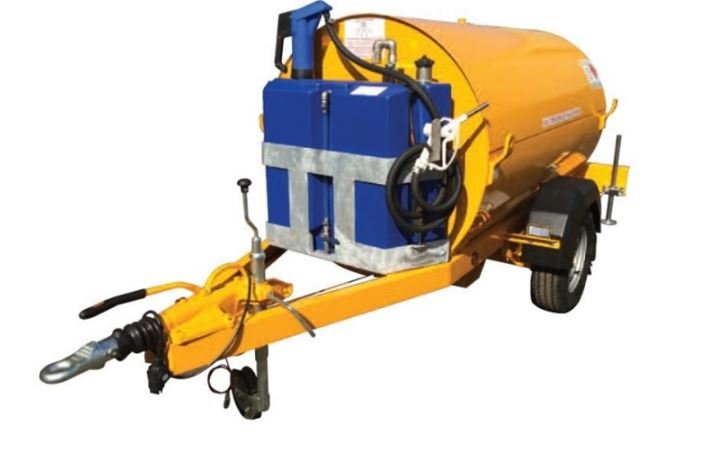

    2140 LITRE U.N. APPROVED BUNDED DIESEL and 120L Adblue - TWIN AXLE EU HIGHWAY BOWSER (Please note image is of a Single Axle).

    2140 litre (470 gallons) road towable bunded diesel bowser with Additional 120L Adblue Tank.  Certified UN 1202 (For Road Haulage).

    Like to view the bowser ? Please click on the video tab below for a walk around showing the design & features of this bowser

    Chassis: Constructed from with 5mm pressed steel section, fully welded with 100 x 50 RSC, ‘A’ frame drawbar & front standing plate, pressed rear lighting channel. Hot dip galvanized.

    Axle/Suspension: Knott-Avonride twin 1500Kg torsion beams fitted with 200 x 50 Auto reverse brakes.

    Wheels & Tyres: 4 No 175 x 13 x 8 ply radial tyres on 4 stud 5 ½” pcd rims.

    Coupling: Knott-Avonride 3000kg posibrake over run auto, reverse c/w spring assisted handbrake lever, breakaway cable. Coupling fitted with 40mm ring eye or 50mm ball

    Ancillary Equipment: Tandem moulded mudguards, mud flaps, telescopic front jockey wheel, side reflectors, front markers, full road lighting c/w 13 pin plug and 7 pin adaptor.

    Outer bund Diesel tank:

    • Cylindrical in section with removable top section for tank access
    • Rear access door fitted with stainless steel hinge and fully lockable
    • Bund contains 110% of inner tank content
    • 4 lifting eyes
    • Fork lift pockets (for use when tank off of chassis only)

    Inner Diesel Fuel Tank:

    • Constructed from translucent heavy duty polyethylene
    • 2" filler cap & chain
    • 2" manual vent valve
    • Top mounted 1/2" BSP feed & return points
    • Ball valve in base of tank to pump
    • Pressure relief valve

    Pump:

    • K2 Semi rotary hand pump fitted with 15' of 1" fuel hose c/w trigger nozzle and stowed on bracket
    • Fitted with in-line 'Y' strainer
    • All contained within lockable bund area
    • Optional upgrades at extra cost available on request: Electric Pump, Petrol Pump, Non Resale Flowmeter

    Finish:

    • Primer & 2 top coats - single British Standard (BS) colour

    •

    ADBLUE TANK:

    TANK: Polyethylene with stainless moulded sockets, 1/2" sightglass, vent, 2" filler and 2" pump socket, c/w 2" stainless retaining strap. finished in blue.

    FRAME: Hot dipped galvanised, with 3 counter sunk holes for mounting to the stand plate of the bowser. Easy fitting, 3x M10 holes to be drilled.

    PUMP OPTIONS: Rotary hand pump or electric pump c/w 3-metre hose and trigger nozzle.

    Size of Adblue Tank (915mm x 270mm x 730mmH) - Unladen Weight: 44kg



    2140 Litre UN Approved EU Highway Diesel & Adblue Bowser - Twin Axle Specification

    • Product Code: TE
    • Delivery Options: Customer Offloading
    • Made From: Plastic, Steel
    • Suitable For Fuel: Diesel, Gas Oil, AdBlue, HVO
    • Tank Type: Bunded, Transportable
    • UN Certified / Approved for Transport under ADR: Yes
