Dymac Setanta Dual Fluid - 1450/350L
Product Ref: SDF- 1450/350L
Custom Delivery Required
Delivery price on application.
login to saveDymac Setanta Dual Fluid - 1450/350L Frequently Asked Questions (FAQs)
Can i add additional hose reels or meters?
Yes - the cabinet is designed to accept multiple reels, meters, and filter modules
Is this suitable for permanent outdoor installation?
Yes - built for depot use with weatherproof finish and heavy-duty components
Dymac Setanta Dual Fluid - 1450/350L Video

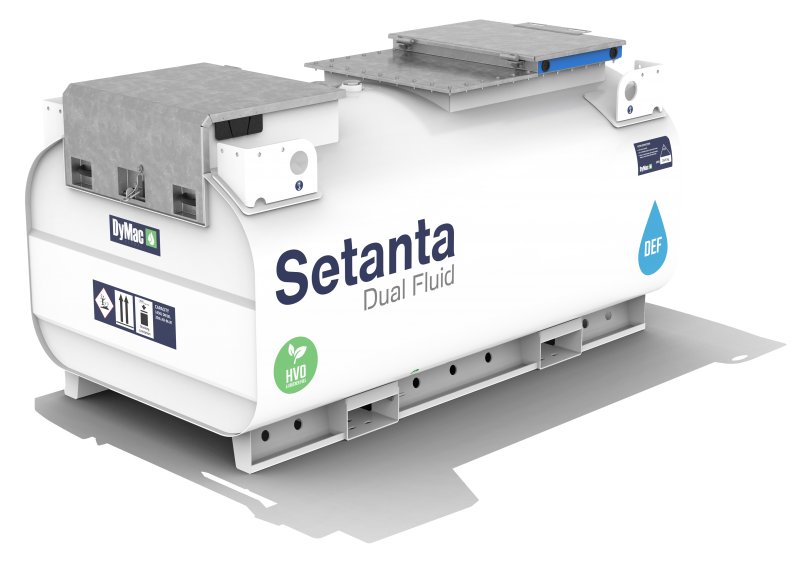

Dymac Setanta Dual Fluid - 1450/350L with Cabinet and Pump pack
The Setanta Dual Fluid SDF-1450/350L is a high-capacity deal-compartment Setanta unit built for larger fleets and intensive on-site refuelling operations.
With a 1450L primary chamber plus a 350L Secondary chamber and supplied with the larger dispensing cabinet and heavy-duty pump package, this system is engineered for depot-level performance where fast turnaround and high throughput are required.
Recommended Applications
- Large agriculture enterprises and contractor depots
- Fleet depots refuelling trucks, buses and heavy plant (diesel + Ad Blue/ DEF or diesel + lubricant)
- Construction & civil engineering bases needing depot refuelling points
- Generator farms and power plant maintenance areas
The Dual Fluid comes complete with:
- FILL VENT - 1x 2" BSP Galvanised External Threaded Pipe with 2" BSP Cap.
- FILL - 1x 3" BSP Galvanised External Threaded Pipe with 3" BSP Fusible Cap.
- P.VENT - 1x 2" NPT Internal Threaded Coupling with 2" Pressure Vent.
- LEVEL GAUGE - 1x 1.5" BSP Internal Threaded Coupling with Level Gauge.
- SPARE - 1x 1.5" BSP Internal Threaded Coupling with 1.5" MS Galvanised Plug.
- FEED - 1x 1.5" BSP Pipe Block with 1 port & Galvanised Metal Stopper, 1" Feed Downpipe with 1" HDPE NRV & 1.5" Internal Threaded Coupling.
- E.VENT - 1x 1/4" BSP Internal Threaded Coupling with 1/4" LEV (actuator).
- PUMP ANTIPHON - 1x 1/8" BSP Internal Threaded Coupling with 1/8" MS Galvanised Plug.
- 3 YEAR build warranty for the tank and 1-Year warranty on the paint coating
Secondary DEF insert tank ports & fittings plate specifications:
- 0.75” BSP Breather Vent To dispensing nozzle
- Pump suction 0.75” BSP Spare
- 0.5” BSP Dipstick
- 0.75” BSP Spare
- 0.75” BSP Spare
- 0.5” Suction line assembly
- 2” BSP Fill Vent
Key Features & Benefits
High Volume Capacity (1450L + 350L)
Reduces refill frequency and keeps busy operations moving
Heavy Cabinet
Larger, secure service bay for twin pumps, filters, metering and hose reels.
Industrial-Grade Bunding & Access Platforms
For safe servicing
Modular Configuration
Easy to specify extra meters, hose reels or filter stations as required
Certified to:
UN31A/Y & ADR approved for transporting on all major motorways when full of fluids. CE marked.
Specifications
| Baffle Thickness | 2mm |
| Nominal Capacity | 1430 Litres |
| Safe Fill Capacity | 1359 Litres |
| Dry Weight | 870 kg |
| Length | 2280 mm |
| Width | 1300 mm |
| Height | 1212 mm |
350L DEF HDPE Poly plastic insert tank
| Total Capacity | 350 L |
| Length | 765 mm |
| Width | 855 mm |
| Height | 962 mm |
| Tank Thickness | 10 mm |
| Safe Fill Capacity | 344 L |
Dymac Setanta Dual Fluid - 1450/350L Specification
- Product Code: DYM
- Delivery Options: Customer Offloading
- Guarantee: 3 Year Guarantee
- Made From: Steel
- Suitable For Fuel: Diesel, Gas Oil, HVO
- Tank Type: Bunded, Transportable
- UN Certified / Approved for Transport under ADR: Yes
