2140 Litre UN Approved Bunded - Twin Axle Highway Bowser

2140 Litre UN Approved EU Highway Diesel Bowser - Twin Axle Tank Compliance

Fuel bowser manufacturers offer the option to have a Bunded Diesel Twin Axle EU Highway Bowsertwin axle highway towable fuel bowser (single axle trailer also available) to suit customers personal preferences.

This bunded diesel twin axle EU Highway Bowser twin axle road towable fuel bowser offers a comfortable and reliable towing capability.

The bunded diesel twin axle EU Highway Bowser trailer is fully welded to ensure its reliability as many other manufacturers offer trailers which are bolted together in which may come loose over time.

Constructed from a polyethylene inner tank to ensure a clean storage solution of fuels, secured in a steel outer bund in which has fork truck lifting points (for when the tank is out of the chassis), Four lifting points and lockable rear door

The strong twin axle chassis is manufactured for transporting a 2140 litre fuel bowser which is fully U.N certified for 10 Years. Please see link https://www.hse.gov.uk/cdg/commonproblems/bowsers.htm

2140 Litre UN Approved EU Highway Diesel Bowser - Twin Axle Downloadable Documents

Bowser Specification Sheet

Pressure Test Bowser

2140 Litre UN Approved EU Highway Diesel Bowser - Twin Axle Video

2140 Litre UN Approved EU Highway Diesel Bowser - Twin Axle Description

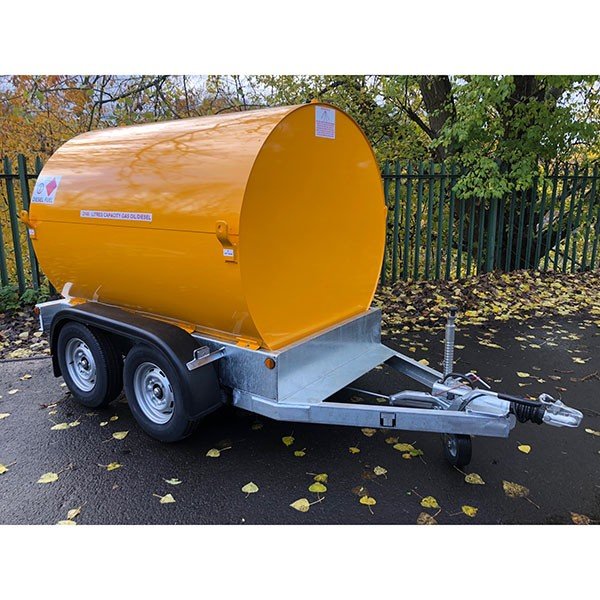

2140 LITRE U.N. APPROVED BUNDED DIESEL - TWIN AXLE EU HIGHWAY BOWSER

2140 litre (470 gallons) road towable bunded diesel bowser. Certified UN 1202 (For Road Haulage).

Like to view the bowser ? Please click on the video tab below for a walk around showing the design & features of this bowser

Chassis: Constructed from with 5mm pressed steel section, fully welded with 100 x 50 RSC, ‘A’ frame drawbar & front standing plate, pressed rear lighting channel. Hot dip galvanized.

Axle/Suspension: Knott-Avonride twin 1500Kg torsion beams fitted with 200 x 50 Auto reverse brakes.

Wheels & Tyres: 4 No 175 x 13 x 8 ply radial tyres on 4 stud 5 ½” pcd rims.

Coupling: Knott-Avonride 3000kg posibrake over run auto, reverse c/w spring assisted handbrake lever, breakaway cable. Coupling fitted with 40mm ring eye or 50mm ball

Ancillary Equipment: Tandem moulded mudguards, mud flaps, telescopic front jockey wheel, side reflectors, front markers, full road lighting c/w 13 pin plug and 7 pin adaptor.

Outer bund tank:

Cylindrical in section with removable top section for tank access
Rear access door fitted with stainless steel hinge and fully lockable
Bund contains 110% of inner tank content
4 lifting eyes
Fork lift pockets (for use when tank off of chassis only)

Inner Fuel Tank:

Constructed from translucent heavy duty polyethylene
2" filler cap & chain
2" manual vent valve
Top mounted 1/2" BSP feed & return points
Ball valve in base of tank to pump
Pressure relief valve

Pump:

K2 Semi rotary hand pump fitted with 15' of 1" fuel hose c/w trigger nozzle and stowed on bracket
Fitted with in-line 'Y' strainer
All contained within lockable bund area
Optional upgrades at extra cost available on request: Electric Pump, Petrol Pump, Non Resale Flowmeter

Finish:

Primer & 2 top coats - single British Standard (BS) colour

2140 Litre UN Approved EU Highway Diesel Bowser - Twin Axle Specification

Product Code: TE
Delivery Options: Customer Offloading
Made From: Plastic, Steel
Suitable For Fuel: Diesel, Gas Oil, HVO
Tank Type: Bunded, Transportable
UN Certified / Approved for Transport under ADR: Yes
