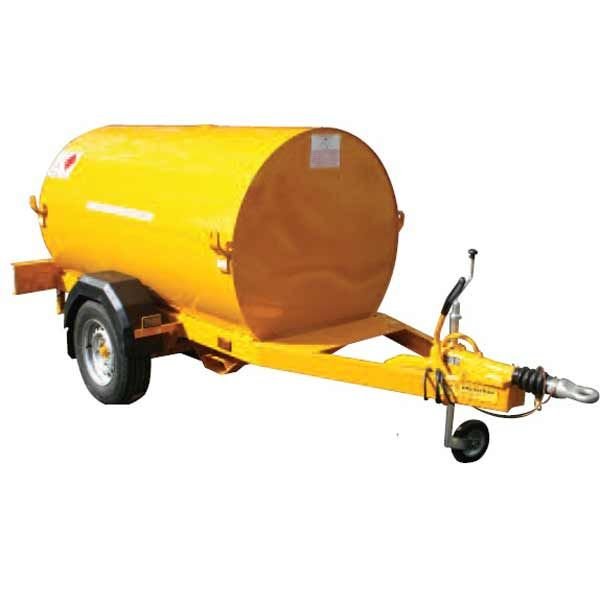

950 Litre Highway Diesel Bowser

Product Ref: 950ROAD

Comes supplied with 1/2" BSP feed and return connections

Customer Offloading Steel Diesel, Gas Oil, HVO Diesel, Gas Oil, HVO Diesel, Gas Oil, HVO Bunded, Transportable
  • Volume: 950ltr
  • Weight: 476.000kg
  • Dimensions: L:3555mm W:1550mm H:1524mm
  • Lead time approx. 7 - 14 working days

    Custom Delivery Required

    Delivery price on application.

    Choose Pump Required:

    updown
    from £4,466.00 ex VAT
    (£5,359.20 inc VAT)
    You may also need:
    Boot Cleaner Premium
    Boot Cleaner Premium
    £467.00 ex VAT
    (£560.40 inc VAT)
    65 Litre Fuel Spill Kit - Round Drum OSK6
    65 Litre Fuel Spill Kit - Round Drum OSK6
    £89.00 ex VAT
    (£106.80 inc VAT)

    950 Litre Highway Diesel Bowser Tank Compliance

    The 950 litre bunded diesel EU highway bowser is constructed from a polyethylene inner tank to ensure a clean fuel storage solution, secured in a steel outer bund.

    This bunded diesel EU highway bowser comes with lockable rear door, four lifting points and two fork sockets (for when the tank is out of the chassis). Complete with a fully certified single axle highway towable trailer. The A-frame trailer is fully welded and manufactured from steel and then galvanised as standard, Painted chassis are available upon request

    The 950 litre bunded diesel EU highway bowser is fully U.N. certified for 10 YEARS for the storage and transportation of fuel. Please see link https://www.hse.gov.uk/cdg/commonproblems/bowsers.htm

    950 Litre Highway Diesel Bowser Downloadable Documents

    950 Litre Highway Diesel Bowser Video

    950 Litre Highway Diesel Bowser Description

    950 Litre Bunded Diesel Bowser - Highway Bowser

    950 litre (208 gallons) road towable bunded diesel bowser.  Certified UN 1202 (For Road Haulage).

    Like to view the bowser ? Please click on the video tab below for a walk around showing the design & features of this bowser

    Chassis: Constructed from 100 x 50 RSC fully welded with front standing plate and A frame drawbar

    Axle/Suspension: Single Avonride 1500kg torsion beam axle and fitted with 200 x 50 auto reverse brakes

    Wheels & Tyres: 2 no 185 x 13 x 8 ply radial tyres on 4 stud 5 1/2" pcd hubs

    Coupling: Knott 2000kg posibrake over run auto reverse c/w spring assisted handbrake lever, breakaway cable and 40mm ring eye or 50mm ball

    Ancillary Equipment: Moulded mudguards, mud flaps, rear support stand, telescopic front jockey wheel, side reflectors, front reflectors, full road lighting c/w 13 pin plug & 7 pin adaptor

    Outer bund tank:

    • Cylindrical in section with removable top section for tank access

    • Rear access door fitted with stainless steel hinge and fully lockable

    • Bund contains 110% of inner tank content

    • 4 lifting eyes

    • Fork lift pockets (for use when tank off of chassis only)

    Inner Fuel Tank:

    • Constructed from translucent heavy duty polyethylene

    • 2" Filler cap & chain

    • 1" Manual vent valve

    • Pressure relief valve

    • Top mounted 1/2" BSP feed & return points

    • Ball valve in base of tank to pump

    • Bottom outlet valve

    • Pressure relief valve in tank top

    Pump:

    • K1 Semi rotary hand pump fitted with 15' of 1" fuel hose c/w trigger nozzle and stowed on bracket

    • Fitted with in-line 'Y' strainer

    • All contained within lockable bund area

    • 12V Pump upgrade available at extra cost

    Finish:

    • Primer & 2 top coats - single British Standard (BS) colour

    950 Litre Highway Diesel Bowser Specification

    • Product Code: TE
    • Delivery Options: Customer Offloading
    • Made From: Steel
    • Suitable For Fuel: Diesel, Gas Oil, HVO
    • Tank Type: Bunded, Transportable
    • UN Certified / Approved for Transport under ADR: Yes
