2140 Litre UN Approved EU Highway Diesel & Adblue Bowser - Single Axle
Product Ref: 2140ROAD120AD
Comes supplied K2 Semi rotary hand pump fitted with 15' of 1" fuel hose c/w trigger nozzle and stowed on bracket
Lead time approx. 8 weeks but please check for current lead time
Custom Delivery Required
Delivery price on application.
2140 Litre UN Approved EU Highway Diesel & Adblue Bowser - Single Axle Description

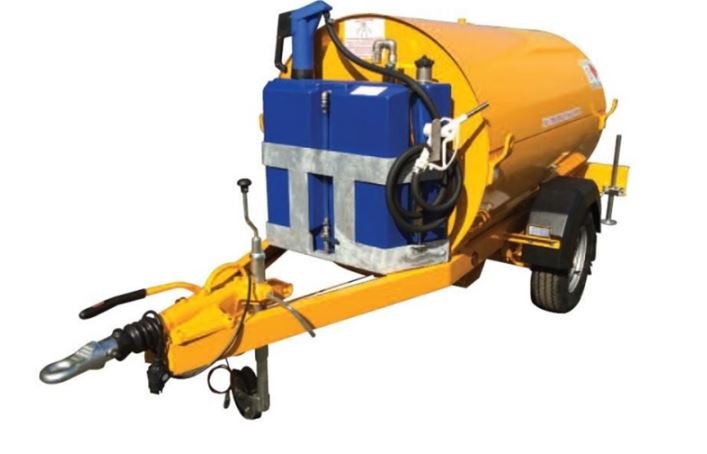

2140 LITRE U.N. APPROVED BUNDED DIESEL and 120L Adblue - Single AXLE EU HIGHWAY BOWSER
2140 litre (470 gallons) road towable bunded diesel bowser with Additional 120L Adblue Tank. Certified UN 1202 (For Road Haulage).
Like to view the bowser ? Please click on the video tab below for a walk around showing the design & features of this bowser
Chassis: Constructed from 100 x 50 RSC fully welded with front standing plate and A frame drawbar & hot dip galvanized
Axle/Suspension: Single Avonride 3000kg rubber torsion beam axle and fitted with Knott 300 x 60 Auto reverse brakes operated by cables and rod
Wheels & Tyres: 2 no 235/85 x 16 x 12 ply radial tyres fitted to 5 stud 6 1/2" pcd rims
Coupling: Knott-Avonride 3000kg posibrake over run auto, reverse c/w spring assisted handbrake lever, breakaway cable. Coupling fitted with 40mm ring eye or 50mm ball
Ancillary Equipment: Tandem moulded mudguards, mud flaps, telescopic front jockey wheel, side reflectors, front markers, full road lighting c/w 13 pin plug and 7 pin adaptor.
Outer bund Diesel tank:
- Cylindrical in section with removable top section for tank access
- Rear access door fitted with stainless steel hinge and fully lockable
- Bund contains 110% of inner tank content
- 4 lifting eyes
- Fork lift pockets (for use when tank off of chassis only)
Inner Diesel Fuel Tank:
- Constructed from translucent heavy duty polyethylene
- 2" filler cap & chain
- 2" manual vent valve
- Top mounted 1/2" BSP feed & return points
- Ball valve in base of tank to pump
- Pressure relief valve
Pump:
- K2 Semi rotary hand pump fitted with 15' of 1" fuel hose c/w trigger nozzle and stowed on bracket
- Fitted with in-line 'Y' strainer
- All contained within lockable bund area
- Optional upgrades at extra cost available on request: Electric Pump, Petrol Pump, Non Resale Flowmeter
Finish:
-
Primer & 2 top coats - single British Standard (BS) colour
-
ADBLUE TANK:
TANK: Polyethylene with stainless moulded sockets, 1/2" sightglass, vent, 2" filler and 2" pump socket, c/w 2" stainless retaining strap. finished in blue.
FRAME: Hot dipped galvanised, with 3 counter sunk holes for mounting to the stand plate of the bowser. Easy fitting, 3x M10 holes to be drilled.
PUMP OPTIONS: Rotary hand pump or electric pump c/w 3-metre hose and trigger nozzle.
Size of Adblue Tank (915mm x 270mm x 730mmH) - Unladen Weight: 44kg
