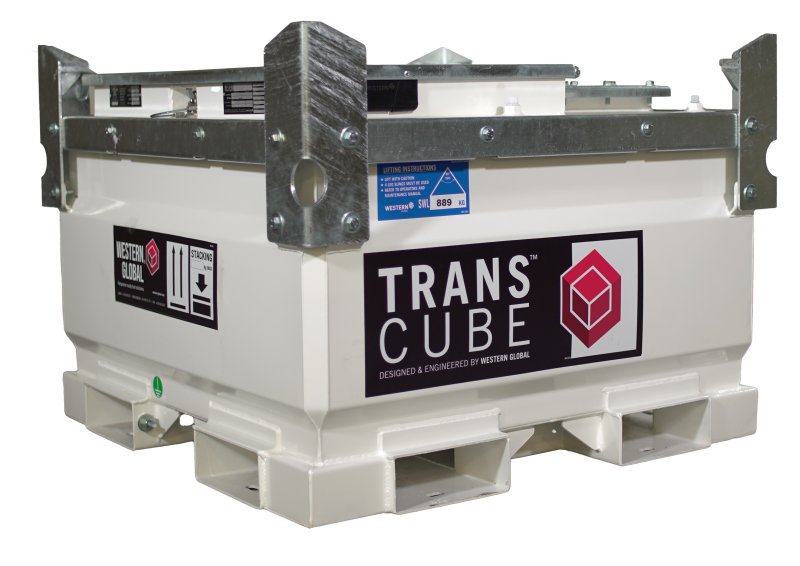

Western Transcube Global 500 Litre

Product Ref: 05TCG

3 Year Guarantee Steel Diesel, Gas Oil, HVO Diesel, Gas Oil, HVO Diesel, Gas Oil, HVO Bunded, Transportable
  • Volume: 500ltr
  • Weight: 414.000kg
  • Dimensions: L:1150mm W:1150mm H:836mm
  • Footprint (L+W): 1150mm + 1150mm
  • Lead time approx. 3 - 4 working days

    Home Delivery

    United Kingdom mainland delivery from FREE ex VAT

    FREE Delivery to Mainland UK, Customer Offload - Postcode Exclusions Apply

    check delivery cost

    Choose Pump Specification Required:

    updown
    from £2,760.00 ex VAT
    (£3,312.00 inc VAT)

    Western Transcube Global 500 Litre What is a bunded tank?

    A bunded tank consists of a 'tank within a tank'.

    The inner tank is the primary storage vessel, whilst the outer tank acts as a failsafe.

    In the event of a spill, surplus fuel will safely and securely be stored within the outer tank and an environmental pollution incident will be averted.

    Western Transcube Global 500 Litre Downloadable Documents

    Western Transcube Global 500 Litre Description

    Western Transcube Global 05TCG

    The Western Transcube Global 500 Litre is a fully transportable diesel tank which is approved for transport of diesel fuel under the ADR Regulations. The Transcube Global is fully bunded steel in steel to ensure environmental compliance with Pollution Prevention Guidelines (PPG2). Transcube Global tanks have a larger cabinet than the Contract versions which provides additional storage for larger pumps. Transcube Globals also have 3 sets of ports meaning you can run 3 generators and pump diesel all at the same time. Access manhole allows easy maintenance and inspection of the inner tank which is required for the ADR certification renewal.

    We have a range of pump options for the Western Transcubes including:

    • 12v pump kit including 4m delivery hose and manual nozzle
    • K2 hand pump kit with 4m delivery hose and manual nozzle
    • 5m feed & return hose assemblies for connecting to a generator and available in 3/4", 1/2" and 3/8" Q/R couplers
    • There are are also other options available, including 24v pumps, 240v pumps, 110v pumps, digital flow meters and filters. Please enquire for details.

    Key Benefits of Western Transcube Global

    • 500 litre model can be transported full of diesel without the need for ADR driver training
    • Easily stacked 2 high full or 3 high empty to reduce storage space requirements.
    • Access manhole for maintenance and inspection of inner tank.
    • Full load lifting eyes, forklift pockets and internal baffles designed to allow handling of the TransCube Global full of fuel.
    • Secure lockable access hatch to house pumps (electric and hand), and feed and return connections for up to 3 generators.
    • Ability to supply fuel for up to 3 generators and refuel plant machinery all at the same time.
    • Sized to stack inside shipping containers and across truck beds providing economical transportation.
    • Protective galvanised framework preventing damage to tank, paintwork and decals.



    Features

    • 3” Fill Point
    • 2” Fill Point
    • Gauge
    • Pressure Vacuum Vent
    • Breather Vent :
    • 1 x ¾” Pump Feed
    • 1 x ½” Generator Feed & Return
    • 4 x 1½” Sockets
    • Inspection Manhole
    • Pump Bracket



    Applications and Uses

    Onsite Fuel Supply

    Easily refuel machinery on site when needed and cut back on fuel delivery waiting times.

    Fuel Transport

    Meeting multiple worldwide transport regulations, the TransCube can transport fuel safety anywhere you need it.

    Generator and Auxiliary Equipment

    With the ability to quickly and efficiently connect to 3 diesel powered pieces of equipment and refuel equipment via pump at the same time.

    05TCG Specifications

     Model  05TCG
     Capacity - Nominal 500 Litres
     Capacity - Safe Fill (95%)  474 Litres
     Dimensions (L x W x H)  1150 x 1150 x 836 mm
     Weight - Empty  414 kg
     Weight - Full  860 kg
     Design Approvals  UL142, CAN/ULC-S601, UN-IBC, AS-1692 2006, ADG, VLAREM, KIWA



    Pumps Explained

    12V Pump

    Electric fuel pump for dispensing diesel.

    • 12v Pump, 4 m cable c/w battery clips
    • Heavy duty 3/4'' 4 m delvery hose
    • 1.2 m suction hose
    • Bypass
    • Mechanical flow meter
    • 3/4'' Automatic shut off trigger nozzle
    • 45 lpm flow rate
    • 30 m duty run-time



    Hand Pump

    • Manual operation
    • Semi Rotary fuel pump
    • Suction Hose
    • Heavy Duty 3/4'' 4 m Delivery hose
    • Manual Operating trigger nozzle
    • Continuous duty cycle



    Western Transcube Global 500 Litre Specification

    • Product Code: WT
    • Guarantee: 3 Year Guarantee
    • Made From: Steel
    • Suitable For Fuel: Diesel, Gas Oil, HVO
    • Tank Type: Bunded, Transportable
    • UN Certified / Approved for Transport under ADR: Yes
    • Footprint (L+W): 1150mm + 1150mm

    Western Transcube Global 500 Litre Compliancy

    Compliant with:

    • BS799 part 5
    • Oil Pollution Prevention Guidelines (England & Wales) 2001 PPG2 - Above Ground Oil Storage Tanks
    • Oil Pollution Prevention Guidelines (England & Wales) 2001 PPG26 – Drum and Intermediate Bulk Container Storage
    • UN 1202 certified (for road haulage)

    Western Transcube Global 500 Litre Delivery Information

    Tanks:

    The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page.  Standard tank deliveries are "kerbside" which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.



    Tanks Over 2500L – Articulated Lorry – Customer Offload:

    These tanks will be delivered on an articulated vehicle (approximately 16.5m long x 2.6m wide x 3m high) which has no offloading on board, it is the customer's responsibility to offload the tank, which may require a telehandler / forklift.  Curtain sided vehicles are also used, so please note that if there are obstacles or hanging branches on the road to the delivery site etc, the driver may refuse to drive the vehicle to the customer's location due to the possibility of damaging the vehicle. Please let us know if there are any obstructions before delivery, so we can arrange alternative transport.



    18 Tonne Tail Lift HGV

    This vehicle is the size of the largest bin lorries (for comparison) and is approximately 8.2m long x 2.6m wide x 4m high, often curtain sided so please note that if there are hanging branches etc, these vehicles will not attempt to drive down due to the possibility of damaging the vehicle and so it is recommended that a smaller vehicle is requested. Tanks will be lowered to the ground but not positioned as this is a kerbside delivery.  If a smaller vehicle is required, please email us at sales@fueltankshop.co.uk quoting your order number and name.



    HIAB Delivery

    HIAB delivery is available but must be requested and there will be an additional cost for this service. If a HIAB delivery is required, please email us at sales@fueltankshop.co.uk quoting your order number and name, and we will come back to you with a price for this service.



    Accessories:

    Most accessories will be delivered within 1-3 working days. If you require them quicker, we can on occasions offer a next day service (please contact us to discuss). If the item(s) are out of stock, we will advise you of the expected lead time, and you will of course have the opportunity to cancel with a full refund.
