Western Transcube Global 3000 Litre

Product Ref: 30TCG

Customer Offloading 8 Year Warranty Steel Diesel, Gas Oil, HVO Diesel, Gas Oil, HVO Diesel, Gas Oil, HVO Bunded, Transportable
  • Volume: 2980ltr
  • Weight: 1100.000kg
  • Dimensions: L:2296mm W:1550mm H:1323mm
  • Lead time approx. 3 - 4 working days

    Home Delivery

    United Kingdom mainland delivery from FREE ex VAT

    FREE Delivery to Mainland UK, Customer Offload - Postcode Exclusions Apply

    check delivery cost

    Choose Pump Specification Required:

    Western Transcube Global 3000 Litre What is a bunded tank?

    A bunded tank consists of a 'tank within a tank'.

    The inner tank is the primary storage vessel, whilst the outer tank acts as a failsafe.

    In the event of a spill, surplus fuel will safely and securely be stored within the outer tank and an environmental pollution incident will be averted.

    Western Transcube Global 3000 Litre Downloadable Documents

    Western Transcube Global 3000 Litre Video

    Western Transcube Global 3000 Litre Description

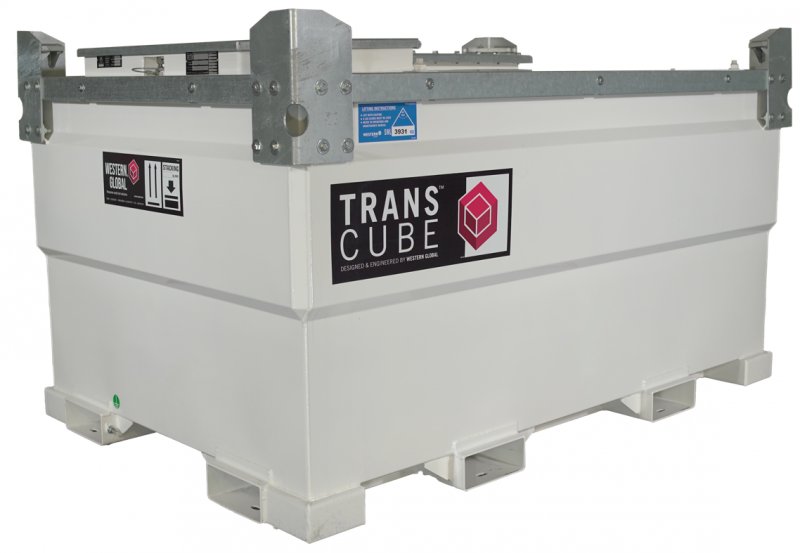

    Western Transcube Global 30TCG

    The Western Transcube Global 3000 Litre is a fully transportable diesel tank which is approved for transport of diesel fuel under the ADR Regulations. The Transcube Global is fully bunded steel in steel to ensure environmental compliance with Pollution Prevention Guidelines (PPG2). Transcube Global tanks have a larger cabinet than the Contract versions which provides additional storage for larger pumps. Transcube Globals also have 3 sets of ports meaning you can run 3 generators and pump diesel all at the same time. Access manhole allows easy maintenance and inspection of the inner tank which is rerquired for the ADR certification renewel.

    We have a range of pump options for the Western Transcubes including:

    • 12v pump kit including 4m delivery hose and manual nozzle
    • K2 hand pump kit with 4m delivery hose and manual nozzle
    • 5m feed & return hose assemblies for connecting to a generator and available in 3/4", 1/2" and 3/8" Q/R couplers
    • There are are also other options available, including 24v pumps, 240v pumps, 110v pumps, digital flow meters and filters. Please enquire for details.

    Key Benefits of Western Transcube Global

    • Easily stacked 2 high full or 3 high empty to reduce storage space requirements.
    • Access manhole for maintenance and inspection of inner tank.
    • Full load lifting eyes, forklift pockets and internal baffles designed to allow handling of the TransCube Global full of fuel.
    • Secure lockable access hatch to house pumps (electric and hand), and feed and return connections for up to 3 generators.
    • Ability to supply fuel for up to 3 generators and refuel plant machinery all at the same time.
    • Sized to stack inside shipping containers and across truck beds providing economical transportation.
    • Protective galvanised framework preventing damage to tank, paintwork and decals.
    • Removable inner tank for cleaning, maintenance and inspection



    • 3” Fill Point
    • 2” Fill Point
    • Gauge
    • Pressure Vacuum Vent
    • Breather Vent :
    • 1 x ¾” Pump Feed
    • 1 x ½” Generator Feed & Return
    • 4 x 1½” Sockets
    • Inspection Manhole
    • Pump Bracket


    Applications and Uses

    Onsite Fuel Supply

    Easily refuel machinery on site when needed and cut back on fuel delivery waiting times.

    Fuel Transport

    Meeting multiple worldwide transport regulations, the TransCube can transport fuel safety anywhere you need it.

    Generator and Auxiliary Equipment

    With the ability to quickly and efficiently connect to 3 diesel powered pieces of equipment and refuel equipment via pump at the same time.


    30TCG Specifications

     Model  30TCG
     Capacity - Nominal  2980 Litres
     Capacity - Safe FIll (95%)  2831 Litres
     Dimensions (L x W x H)  2296 x 1550 x 1323 mm
     Weight - Empty  1100 kg
     Weight - Full  3931 kg
     Design Approvals   UL142, CAN/ULC-S601, UN-IBC, AS-1692 2006, ADG, VLAREM, KIWA


    Pumps Explained

    12V Pump

    Electric fuel pump for dispensing diesel.

    • 12v Pump, 4 m cable c/w battery clips
    • Heavy duty 3/4'' 4 m delvery hose
    • 1.2 m suction hose
    • Bypass
    • Mechanical flow meter
    • 3/4'' Automatic shut off trigger nozzle
    • 45 lpm flow rate
    • 30 m duty run-time


    Hand Pump

    • Manual operation
    • Semi Rotary fuel pump
    • Suction Hose
    • Heavy Duty 3/4'' 4 m Delivery hose
    • Manual Operating trigger nozzle
    • Continuous duty cycle


    Do you need a versatile telemetry system for remote tank monitoring?

    Check out the WAPex system, perfect for any size tank and any tank which is transportable, so you can monitor the levels anywhere the tank is located.

    Suitable for Agricultural, haulage & logistics, facilities management and FOD.

    Click here for more information - WAPex

    Western Transcube Global 3000 Litre Specification

    • Product Code: WT
    • Delivery Options: Customer Offloading
    • Guarantee: 8 Year Warranty
    • Made From: Steel
    • Suitable For Fuel: Diesel, Gas Oil, HVO
    • Tank Type: Bunded, Transportable
    • UN Certified / Approved for Transport under ADR: Yes

    Western Transcube Global 3000 Litre Delivery Information

    Our supplier can deliver to mainland UK and Northern Ireland locations but excludes offshore islands and locations and delivery is not included in the tank price

    Delivery is a kerbside delivery service only and not a "drop at your door service".

    Arrangements must be made by the customer to manoeuvre tanks into position.

    Deliveries can be made by articulated lorry and it is the customers' responsibility to ensure safe and adequate access for large lorries plus off loading facilities at the delivery address.

    Off loading of heavy items should be made by fork lift or similar heavy lifting equipment

    Tanks cannot be left without a customer signature

    Western Transcube Global 3000 Litre Tank Compliance

    U.N (United Nations) Approved IBC (Intermediate Bulk Container) approved for the transport of diesel fuel under the ADR regulations.

    The TransCube Global is 110% bunded (steel in steel) to ensure environmental compliance with Pollution Prevention Guidelines (PPG2)
