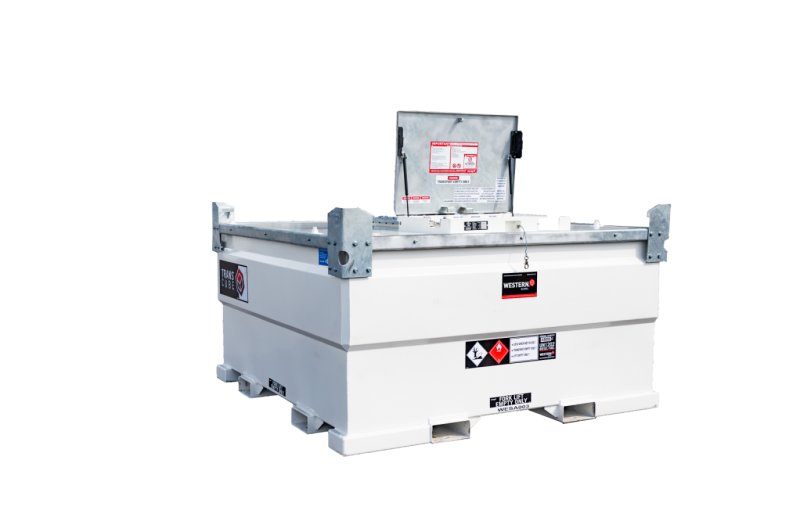

Western Transcube Global Standby 4330 Litre Diesel Tank

Product Ref: 50TCG

Customer Offloading 3 Year Guarantee Steel Diesel, Gas Oil, HVO Diesel, Gas Oil, HVO Diesel, Gas Oil, HVO Bunded
  • Volume: 4330ltr
  • Weight: 1680.000kg
  • Dimensions: L:2300mm W:2300mm H:1320mm
  • Footprint (L+W): 2300mm + 2300mm
  • Lead time approx. 2 - 3 working days

    Home Delivery

    United Kingdom mainland delivery from FREE ex VAT

    FREE Delivery to Mainland UK, Customer Offload - Postcode Exclusions Apply

    check delivery cost

    Choose Pump Specification Required:

    Western Transcube Global Standby 4330 Litre Diesel Tank What is a bunded tank?

    A bunded tank consists of a 'tank within a tank'.

    The inner tank is the primary storage vessel, whilst the outer tank acts as a failsafe.

    In the event of a spill, surplus fuel will safely and securely be stored within the outer tank and an environmental pollution incident will be averted.

    Western Transcube Global Standby 4330 Litre Diesel Tank Downloadable Documents

    Western Transcube Global Standby 4330 Litre Diesel Tank Description

    Western Transcube Standby 4330 Litre Static Diesel Tank

    The Western Transcube Standby 4330 Litre is fully bunded in steel to ensure environmental compliance with Pollution Prevention Guidelines (PPG2).

    All of the flexibility and features of the TransCube Global, but in a larger capacity. The TransCube Standby range is for stationary use only and is ideal for static auxiliary applications

    Transcube Standby also has 3 sets of ports meaning you can run 3 generators and pump diesel all at the same time. Access manhole allows easy maintenance and inspection of the inner tank

    We have a range of pump options for the Western Transcubes including:

    • 12v pump kit including 4m delivery hose and manual nozzle
    • K2 hand pump kit with 4m delivery hose and manual nozzle
    • 5m feed & return hose assemblies for connecting to a generator and available in 3/4", 1/2" and 3/8" Q/R couplers
    • There are are also other options available, including 24v pumps, 240v pumps, 110v pumps, digital flow meters and filters. Please enquire for details.

    Key Benefits of Western Transcube Standby:

    • Easily stacked 2 high full or 3 high empty to reduce storage space requirements.
    • Access manhole for maintenance and inspection of inner tank.
    • Full load lifting eyes and forklift pockets
    • Lockable equipment cabinet. Equipment and ports are secure and spills are contained. Secure hose access enables fuelling while cabinet is locked
    • Ability to supply fuel for up to 3 generators and refuel plant machinery all at the same time.
    • Sized to stack inside shipping containers and across truck beds providing economical transportation.
    • Protective galvanized framework preventing damage to tank, paintwork and decals.
    • Removable inner tank for cleaning, maintenance and inspection

    Features

    • 3” Fill Point
    • 2” Fill Point
    • Gauge
    • Pressure Vacuum Vent
    • Breather Vent :
    • 1 x ¾” Pump Feed
    • 1 x ½” Generator Feed & Return
    • 4 x 1½” Sockets
    • Inspection Manhole
    • Pump Bracket



    Applications and Uses

    Onsite Fuel Supply

    Easily refuel machinery on site when needed and cut back on fuel delivery waiting times.

    Generator and Auxiliary Equipment

    With the ability to quickly and efficiently connect to 3 diesel powered pieces of equipment and refuel equipment via pump at the same time.



    50TCG Specifications

     Model  50TCG
     Capacity - Nominal  4558 Litres
     Capacity - Safe Fill (95%)  4330 Litres
     Dimensions (L x W x H)  2300mm x 2300mm x 1320mm
     Weight - Empty  1680 kg
     Weight - Full  6600 kg
     Design Approvals  UL142, CAN/ULC-S601, BS799-5



    Pumps Explained

    12V Pump

    Electric fuel pump for dispensing diesel.

    • 12v Pump, 4 m cable c/w battery clips
    • Heavy duty 3/4'' 4 m delvery hose
    • 1.2 m suction hose
    • Bypass
    • Mechanical flow meter

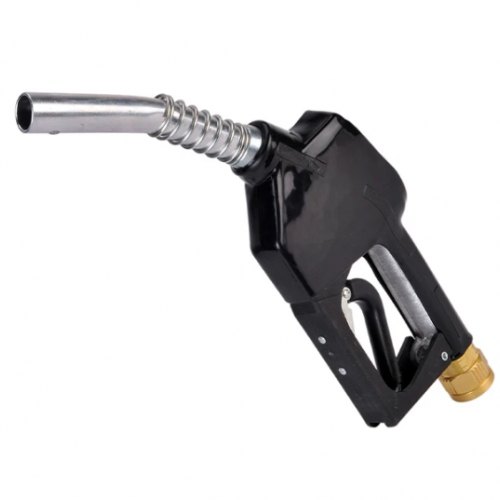

    • 3/4'' Automatic shut off trigger nozzle
    • 45 lpm flow rate
    • 30 m duty run-time

    Hand Pump

    • Manual operation
    • Semi Rotary fuel pump
    • Suction Hose
    • Heavy Duty 3/4'' 4 m Delivery hose
    • Manual Operating trigger nozzle
    • Continuous duty cycle

    Do you need a versatile telemetry system for remote tank monitoring?

    Check out the WAPex system, perfect for any size tank and any tank which is transportable, so you can monitor the levels anywhere the tank is located.

    Suitable for Agricultural, haulage & logistics, facilities management and FOD.

    Click here for more information - WAPex

    Western Transcube Global Standby 4330 Litre Diesel Tank Specification

    • Product Code: WT
    • Delivery Options: Customer Offloading
    • Guarantee: 3 Year Guarantee
    • Made From: Steel
    • Suitable For Fuel: Diesel, Gas Oil, HVO
    • Tank Type: Bunded
    • Footprint (L+W): 2300mm + 2300mm

    Western Transcube Global Standby 4330 Litre Diesel Tank Delivery Information

    Our supplier can deliver to mainland UK and Northern Ireland locations but excludes offshore islands and locations and delivery is not included in the tank price

    Delivery is a kerbside delivery service only and not a "drop at your door service".

    Arrangements must be made by the customer to manoeuvre tanks into position.

    Deliveries can be made by articulated lorry and it is the customers' responsibility to ensure safe and adequate access for large lorries plus off loading facilities at the delivery address.

    Off loading of heavy items should be made by fork lift or similar heavy lifting equipment

    Tanks cannot be left without a customer signature

    Western Transcube Global Standby 4330 Litre Diesel Tank Tank Compliance

    Envriobulka static 110% bunded fuel tank

    Built to BS799 Part 5 & to comply with PPG2 Regulations 110% bunded fuel storage tank to comply with PPG2 ({Pollution Prevention Guidelines) Regulations.

    Manufactured to BS799 Part 5- Specification for Oil Storage Tanks



    Western Transcube Global Standby 4330 Litre Diesel Tank Returns Information

    Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

    All Items must be returned unused, refunds cannot be issued for used or previously installed items.

    Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

    If you wish to return goods, please complete the form on this page to provide further information.

    Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

    Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

    Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.

    View Fuel Tank Shop return policy now.
