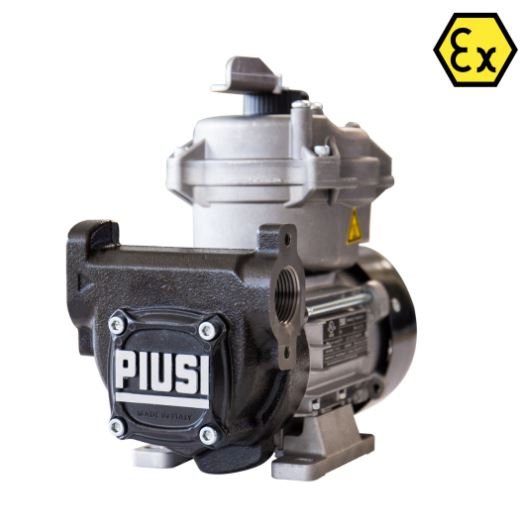

Piusi EX56 Fuel Transfer ATEX Pump
Product Ref: F00580030
Home Delivery
United Kingdom mainland delivery from FREE ex VAT
Free Delivery to Mainland UK - (Postcode exclusions apply to AB, BT, DD, EH, FK, G, GY, HS, IM, IV, JE, KA, KW, KY, ML, PA20+ & PH, PO30+, ZE Please Check With Us)
login to savePiusi EX56 Fuel Transfer ATEX Pump Downloadable Documents
EX56 Data SheetPiusi EX56 Fuel Transfer ATEX Pump Description
Piusi EX56 Fuel Transfer ATEX Pump
Introducing the Panther EX56, the latest innovation from Italian manufacturer Piusi. This ATEX-approved 230V fuel transfer pump upholds the trusted Panther pump quality, which has been a staple in the fuel industry for over two decades.
Equipped with a reliable AC motor, the Panther EX56 is designed for continuous operation, ensuring uninterrupted fuel dispensing and large-scale fuel transfers. Unlike its predecessor, the Piusi EX50, this model operates without a duty cycle and offers an improved flow rate of 56 litres per minute, making it more efficient than similar alternatives.
Engineered for safe fuel transfer in Zone 1 environments, this ATEX-certified pump is suitable for petrol, kerosene, diesel, jet fuel, and HVO, meeting strict European safety regulations for explosion-proof equipment.
Built with a robust cast iron body, this self-priming mains-powered pump is designed for long-term durability. Additional options, such as a version with a drum connector and nozzle switch, are also available.
The Panther EX56 holds ATEX certification II2 G Ex db h IIB T4 Gb, ensuring compliance with industry safety standards
Product Features:
- Self-priming explosion proof pump
- For diesel, petrol, Kerosene, HVO/GTL, Aspen 2/4
- Sintered steel rotor & Technopolymer vanes
- Cast iron pump body with anti-corrosion paint
- Incorporated bypass valve & viton lip ring seal
- Maximum flow rate: 56ltr Per Min
- Continuous running
- 1” F BSP inlet/outlet ports
- Thermal motor overload protection
- Version with drum connector & nozzle switch available
- Protection grade: IP55
- 230v
- ATEX Zone 1 certified II2 G Ex db h IIB T4 Gb
**PLEASE NOTE: POWER CABLES & CONNECTORS ARE DEPENDENT UPON THE INDIVIDUAL RISK ASSESSMENT FOR THE CONNECTION METHOD BETWEEN THE ATEX PIUSI FUEL PUMP AND POWER SOURCE. THIS PUMP DOES NOT COME WITH POWER CABLES AND END USER MUST SUPPLY THEIR OWN AFTER THE CORRECT ATEX RISK ASSESSMENT HAS BEEN COMPLETED**
Piusi EX56 Fuel Transfer ATEX Pump Specification
- Product Code: CT
- Guarantee: 1 Year Guarantee
- Suitable For Fuel: Petrol, Diesel, Heating Oil, JET A1
