Piusi Ocio Fuel Tank Level Gauge

Product Ref: F0075510D

Lead Time 2-3 Days - AdBlue & 110 version out of stock with supplier. Due end August / Mid September

Home Delivery

United Kingdom mainland delivery from £9.95 ex VAT

Parcel Delivery (Highlands & Islands are charged a higher fee than standard)

check delivery cost

Choose option:


Piusi Ocio Fuel Tank Level Gauge Downloadable Documents

Piusi Ocio Fuel Tank Level Gauge Description

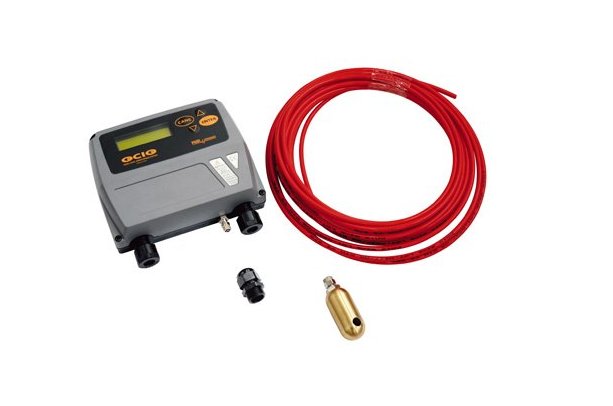

Piusi Ocio Fuel Tank Gauge

The Piusi Ocio Fuel Tank Gauge is a continuous reading, digital tank level monitoring device for use on tanks up to 4 metres high. The Piusi fuel tank level gauge detects the static pressure generated by the fluid height using a flexible capillary which is inserted into the tank. Once calibrated using the tank measurements, these fuel tank gauges illustrate the level reading either in mm, litres or percentage depending on the user’s preference. There is also an alert function which can be set by the user to warn of possible high and low level statuses. A 4-20ma model is also available for use with building management systems. These fuel tank contents gauges are also available in a version specifically for the use with AdBlue™ or DEF as it is referred to in America, and there is a kit available to make the standard Ocio compatible with oil.

  • Digital fuel tank level indicator
  • Tank probe with 10 metres capillary
  • For tanks between 600-4000mm high
  • High/low level statuses can be set up
  • Suitable for diesel, water, windscreen, or urea (depending on model)
  • IP55 Rated
  • %, litre and mm readings
  • ½” M BSP balance chamber fitting
  • Accuracy +/- 1%
  • Supplied with two relays for connection to other equipment
  • Oil kit available to add to standard Ocio
  • Optional advanced software available

Please note: Piusi is Italian made and therefore supplied with a 2 pin European plug (Euro plug).  You will either need to change the plug for a UK 3 pin plug or utilise an adaptor.

Suitable for Diesel and Water

Piusi Ocio Fuel Tank Level Gauge Specification

  • Product Code: CT
  • Suitable For Fuel: Diesel, AdBlue, Bio Fuel

Piusi Ocio Fuel Tank Level Gauge Customer Reviews

By on
"We have a piusi ocio system and the controller failed so ordered up a new one came promptly within a week and fitted and started working straight away. the original one failed as rats had chewed through the hose causing the unit to run continuously."
Star Rating 5

Piusi Ocio Fuel Tank Level Gauge Delivery Information


The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page.  Standard tank deliveries are "kerbside" which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.


Tanks Over 2500L – Articulated Lorry – Customer Offload:

These tanks will be delivered on an articulated vehicle (approximately 16.5m long x 2.6m wide x 3m high) which has no offloading on board, it is the customer's responsibility to offload the tank, which may require a telehandler / forklift.  Curtain sided vehicles are also used, so please note that if there are obstacles or hanging branches on the road to the delivery site etc, the driver may refuse to drive the vehicle to the customer's location due to the possibility of damaging the vehicle. Please let us know if there are any obstructions before delivery, so we can arrange alternative transport.


18 Tonne Tail Lift HGV

This vehicle is the size of the largest bin lorries (for comparison) and is approximately 8.2m long x 2.6m wide x 4m high, often curtain sided so please note that if there are hanging branches etc, these vehicles will not attempt to drive down due to the possibility of damaging the vehicle and so it is recommended that a smaller vehicle is requested. Tanks will be lowered to the ground but not positioned as this is a kerbside delivery.  If a smaller vehicle is required, please email us at sales@fueltankshop.co.uk quoting your order number and name.


HIAB Delivery

HIAB delivery is available but must be requested and there will be an additional cost for this service. If a HIAB delivery is required, please email us at sales@fueltankshop.co.uk quoting your order number and name, and we will come back to you with a price for this service.



Most accessories will be delivered within 1-3 working days (certain products and postcodes may take longer, please check the product page for update to date information). If you require them quicker, we can on occasions offer a next day service (please contact us to discuss). If the item(s) are out of stock, we will advise you of the expected lead time, and you will of course have the opportunity to cancel with a full refund.



Piusi Ocio Fuel Tank Level Gauge Returns Information

Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

All Items must be returned unused, refunds cannot be issued for used or previously installed items.

Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

If you wish to return goods, please complete the form on this page to provide further information.

Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.

View Fuel Tank Shop return policy now.
