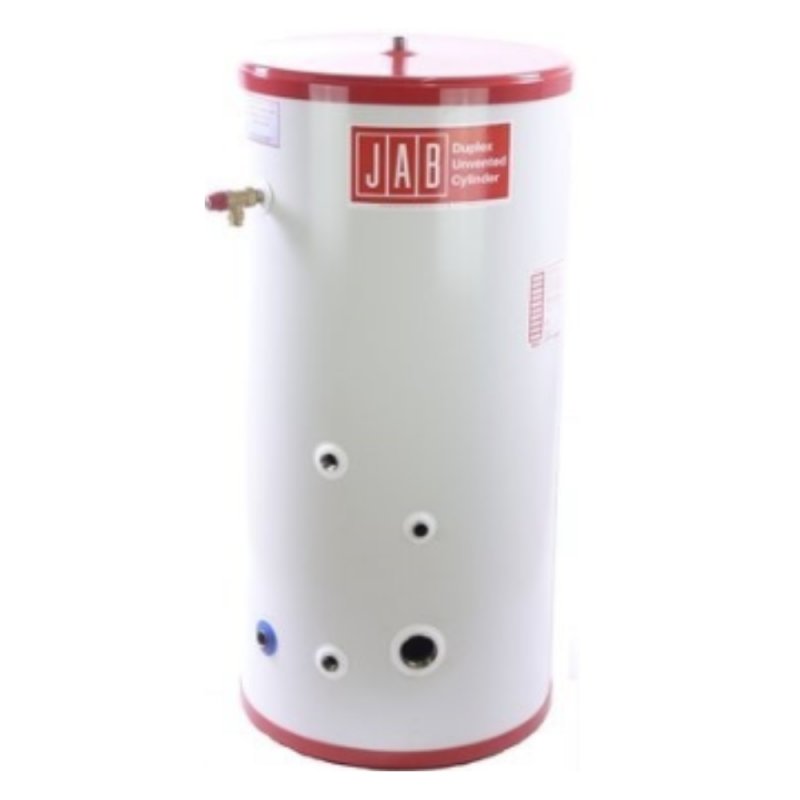

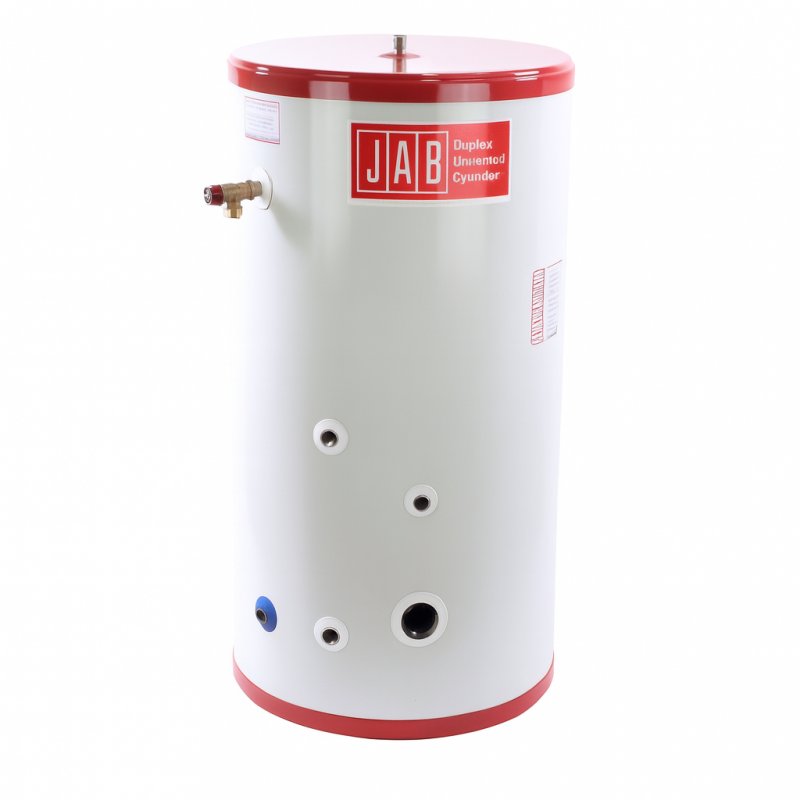

JAB DUC 2 90L Direct Slim Unvented Cylinder
Product Ref: JD2090DSLIM
(allow 7 Working days for delivery)
Home Delivery
United Kingdom mainland delivery from FREE ex VAT
FREE Delivery to Mainland UK
login to saveJAB DUC 2 90L Direct Slim Unvented Cylinder Downloadable Documents
JAB DUC 2 Direct Slim Cylinder Data SheetJAB DUC 2 90L Direct Slim Unvented Cylinder Description
JAB DUC 2 90L Direct Slim Unvented Cylinder
The JAB DUC 2 90L Direct Slim Unvented Cylinder is a space-saving hot water storage solution designed for modern living. Compact in design yet generous in capacity, it's the perfect choice for homes and flats that need reliable mains-pressure hot water but have limited installation space.
With direct electric heating and robust construction, it delivers performance, efficiency, and convenience in a single, compact package.
Designed with installation in mind, allowing most existing airing cupboards to be used. The ideal choice for the replacement of standard copper cylinders.
Applications
- Suitable for small flats or 1-beroom homes with low demand
- Typical Use: 1-2 People, 1 Bathroom (shower or Bath)
- Apartments or flats where space is limited but mains-pressure hot water is needed
- Properties without a central heating system (all electric homes)
- Renovations and retrofits where a slim, efficient hot water cylinder is the best fit
Key Features & Benefits
- 90-Litre Capacity - Suited to small to medium homes with moderate hot water demand
- Slimline Design - Narrow profile makes it ideal for installation in tight spaces such as cupboards or utility areas.
- Direct Heating - Fitted with an immersion heater to heat the stored water directly, making it independent of a boiler
- Unvented System - Provides mains-pressure hot water for improved flow rates at taps and showers
- High-quality construction - Made from corrosion-resistant materials for durability and long service life.
- Efficient Insulation - factory-applied foam insulation reduces heat loss and energy use
- Safe and Reliable - Built-in safety controls, thermostatic regulation, and pressure relief for peace of mind
- Low maintenance - Simple design with minimal upkeep requirements
How it works
Being a direct cylinder, the JAB DUC 2 90L uses an immersion heater to heat the water stored inside. Connected to the mains supply, it delivers pressurised hot water directly to taps and showers without the need for a cold water tank. This makes it an excellent choice for properties without a central heating boiler or where additional hot water storage is required.
The unvented design means water is supplied at mains pressure, offering a more powerful flow compared to traditional vented cylinders.
Specifications
| Product Code | JD2090DSLIM |
| Nominal Capacity (L) | 90 |
| Height (mm) | 900 |
| Diameter Ø (mm) | 470 |
| Reheat From Cold (mins) | 52 |
| Reheat from 70% Draw-off (mins) | 27 |
| ERP band | C |
| Immersions Rating (kW) | 2 x 3 |
| Standing Heat Loss (kWh/24hrs) | 1.37 |
All direct units are supplied with:
- 2 x 3kw 240v s/p Immersion Heaters
- 1- Expansion Vessel
- 1 x T & P Relief Valve
- 1 x 3 bar Inlet Chain
* Please note, the image is for visual purposes only and may be slightly different
JAB DUC 2 90L Direct Slim Unvented Cylinder Specification
- Product Code: HWS
- Guarantee: 25 Year Guarantee
