Brigon Soot Scale Chart

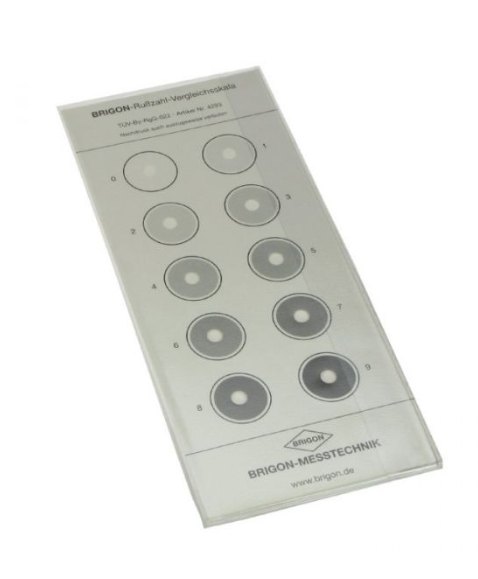

The Brigon Soot Scale Chart is a precision reference tool designed for professionals and technicians working with oil burners, boilers, and flue systems. It provides a clear, visual method to assess soot deposits and rating, enabling accurate combustion tuning, diagnostics, and maintenance. Whether you're servicing a residential heating system or working in a commercial boiler room, this chart supports best-practice combustion analysis.
Key Features & Benefits
-
Standardized Soot Measurement
The chart displays graduated soot deposit levels—typically ranging across recognized soot density classes - so you can match observed soot accumulation directly against the scale. This allows consistent, repeatable assessments from job to job. -
Clear Visual Markings
High-contrast shading and labelling make it easy to compare soot deposits, even in low light or when used in the field. No guesswork. -
Durable Material
Made from robust materials suitable for workshop or field use (resistant to oil, grime, and general wear). It is built to survive the rigours of a burner maintenance environment. -
Compact & Portable
Small enough to fit in a technician’s toolkit or jacket pocket, yet large enough to provide clear visual comparisons when held up against soot-laden surfaces. -
One-Year Warranty
Covered against manufacturing defects, giving you confidence in long-term use.
Applications
-
Boiler & Burner Servicing
Use the chart during routine burner tuning to evaluate how clean or dirty combustion is, enabling you to adjust air/fuel ratios for optimum efficiency. -
Combustion Diagnostics
Identifying soot severity helps pinpoint issues: poor atomization, improper air intake, fuel quality problems, or burner misalignment. -
Preventive Maintenance
Regular checks with the soot scale chart allow early detection of fouling, soot build-up, or combustion drift - helping you intervene before performance suffers or damage occurs. -
Training & Quality Control
As a standard visual reference, this chart is excellent in training new technicians or in quality control protocols to ensure consistent evaluations across different workers or sites.
Technical / Usage Notes
-
Always view soot deposits in uniform, diffuse lighting to reduce shadows or glare that may mislead your judgment.
-
Hold the chart next to the component or flue surface being judged - never just eyeball from memory.
-
Use in conjunction with flue gas analysers, draft gauges, or carbon monoxide detectors for a holistic combustion analysis.
-
Clean the chart occasionally (wipe with a soft, dry or lightly damp cloth) to maintain clarity of shading and scale.
