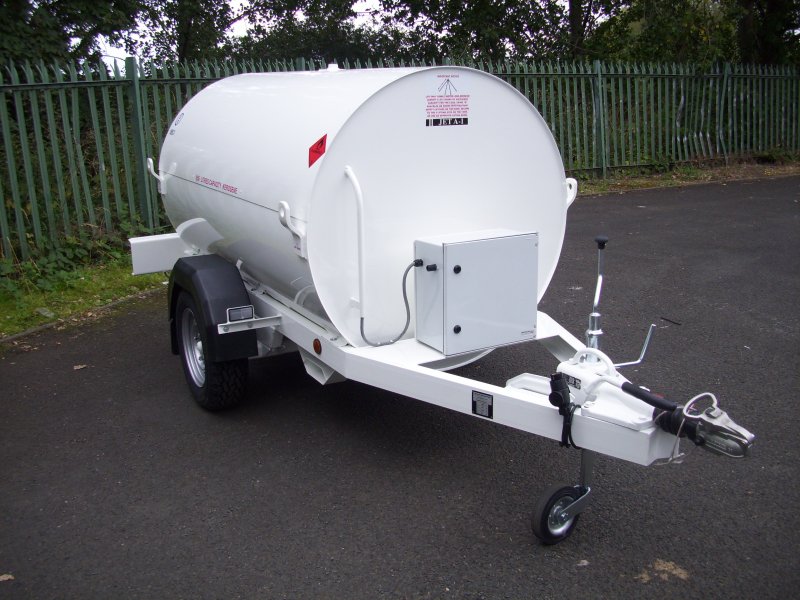

950 Litre U.N. Approved Bunded Jet A1 EU Highway Bowser

Product Ref: 950JET

Steel JET A1 Bunded, Transportable
  • Volume: 980ltr
  • Weight: 476.000kg
  • Dimensions: L:3555mm W:1550mm H:1524mm
  • Lead time approx. 6 weeks

    Custom Delivery Required

    Delivery price on application.

    updown

    950 Litre U.N. Approved Bunded Jet A1 EU Highway Bowser Tank Compliance

    The 950 litre bunded Jet A1 EU highway bowser is constructed from a polyethylene inner tank to ensure a clean fuel storage solution, secured in a steel outer bund.

    This bunded Jet A1 EU highway bowser comes with lockable rear door, four lifting points and two fork sockets (for when the tank is out of the chassis). Complete with a fully certified single axle highway towable trailer. The A-frame trailer is fully welded and manufactured from steel and then galvanised as standard, Painted chassis are available upon request

    The 950 litre bunded Jet A1 EU highway bowser is fully U.N. certified for 10 YEARS for the storage and transportation of fuel. Please see link https://www.hse.gov.uk/cdg/commonproblems/bowsers.htm

    950 Litre U.N. Approved Bunded Jet A1 EU Highway Bowser Downloadable Documents

    950 Litre U.N. Approved Bunded Jet A1 EU Highway Bowser Description

    950 Litre UN Approved Bunded JET A1 EU Highway Bowser


    950 litre (200 gallons) road towable bunded JetA1 bowser.  Certified UN 1202 (For Road Haulage).

    Chassis: Constructed from 100 x 50 RSC fully welded with front standing plate and A frame drawbar. Hot dip galvanized

    Axle/Suspension: Single Knott-Avonride 1500kg torsion beam axle and fitted with 200 x 50 auto reverse brakes on 4 stud 5 ½” pcd hubs

    Wheels & Tyres: 2 No 175 x 13 x 8 ply radial tyres

    Coupling: Knott-Avonride 2000kg posibrake over run auto reverse c/w spring assisted handbrake lever, breakaway cable & 40mm ring eye or 50mm ball.

    Ancillary Equipment: Moulded mudguards, mud flaps, rear support stand, telescopic front jockey wheel, side reflectors, front reflectors, full road lighting c/w 13 pin plug & 7 pin adaptor

    Outer bund tank:

    • Cylindrical in section constructed in 3mm mild steel with removable top section for tank access.
    • Rear access door, fitted with stainless steel hinge and fully lockable.
    • Bund contains 110% of inner tank.
    • 4 lifting eyes.
    • Fork truck sockets for use when tank not fitted in chassis.

    Inner Fuel Tank:

    • Constructed from translucent heavy duty polyethylene
    • 2” filler with cap & chain.
    • 1” manual vent valve
    • ½” top mounted suction & return connections.
    • Pressure relief valve
    • Bottom outlet valve.

    Pump:

    • 12 volt flameproof pump
    • 100Ah battery in box
    • Facet filter monitor
    • 7m hose stowed on bracket
    • Bonding reel
    • ZVF trigger nozzle
    • Sample hand pump
    • Non re-sale flowmeter.

    Finish:

    • Primer and two top coats, single British Standard colour.





    950 Litre U.N. Approved Bunded Jet A1 EU Highway Bowser Specification

    • Product Code: TE
    • Made From: Steel
    • Suitable For Fuel: JET A1
    • Tank Type: Bunded, Transportable
    • UN Certified / Approved for Transport under ADR: Yes

    950 Litre U.N. Approved Bunded Jet A1 EU Highway Bowser Delivery Information

    Our supplier can deliver to mainland UK and Northern Ireland locations but excludes offshore islands and locations and delivery is not included in the tank price

    Delivery is a kerbside delivery service only and not a "drop at your door service".

    Arrangements must be made by the customer to manoeuvre tanks into position.

    Deliveries can be made by articulated lorry and it is the customers' responsibility to ensure safe and adequate access for large lorries plus off loading facilities at the delivery address.

    Off loading of heavy items should be made by fork lift with extended forks or similar heavy lifting equipment

    Tanks cannot be left without a customer signature
