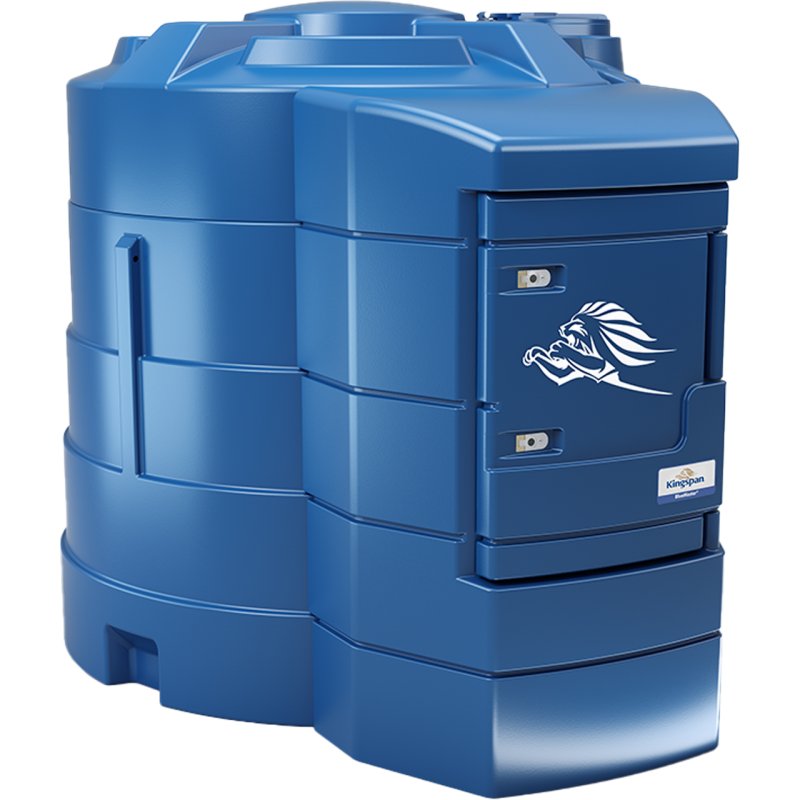

Titan 5000 Litre - BlueMaster AdBlue Dispenser - Advanced

Product Ref: 0010204

Customer Offloading 10 Year Guarantee - Tank only Plastic AdBlue Vertical
  • Volume: 5000ltr
  • Dimensions: L:2850mm W:2250mm H:2350mm
  • Home Delivery

    United Kingdom mainland delivery from FREE ex VAT

    FREE STANDARD Delivery for TITAN Tanks - Via articulated lorry, customer to off-load

    check delivery cost

    updown
    You may also need:

    Titan 5000 Litre - BlueMaster AdBlue Dispenser - Advanced Downloadable Documents

    Titan 5000 Litre - BlueMaster AdBlue Dispenser - Advanced Video

    Titan 5000 Litre - BlueMaster AdBlue Dispenser - Advanced Description

    Titan 5000 Litre - BlueMaster AdBlue Dispenser - Advanced

    The 5000 litre/1100 Gallon BlueMaster storage and dispensing tank has been specifically designed for the secure dispensing, management, and protection of AdBlue.

    Manufactured with a double skin and fitted with an intelligent Tank Monitoring System (TMS)

    Specifications

    • Double Skinned Tank
    • Submersible Pump
    • 2" Stainless Steel Dry Coupling Connection
    • Kingspan TMS
    • Piusi Automatic Dispensing Nozzle with nozzle holder pump switch
    • 3/4” EPDM Delivery Hose (8m on 5,000 Slimline)
    • Flowmeter
    • Prepared for Kingspan WAP Telemetry
    • Light in Housing

    Tank Monitoring System Features (TMS)

    • Power supply for system devices
    • LCD display
    • Pump on/off control via nozzle holder switch
    • Housing light control
    • Overfill alarm
    • 100 impulse/litre output
    • Flow measurement
    • Contents measurement – via Ultrasonic Sensor
    • Nozzle position indication
    • Level and leak alerts
    • 4-20 mA output

    Closed Fluid Path - Which is very important to make sure and maintain AdBlue Purity.

    Complaint with current EN ISO 9001:2015 Regulations



    Optional Extras at additional cost and lead time - Contact us for pricing

    • ZVA Nozzle
    • Hose Reel

    ** The ZVA Automatic AdBlue Magnetic Nozzle is designed for use in conjunction with the ELAFIX 40 adaptor in order to prevent the costly miss-filling of AdBlue into the diesel tank.

    This magnetic spout ZVA Nozzle will only allow fluid to pass once it has been magnetically opened by the ELAFIX AdBlue magnetic adaptor fitted within the vehicle filler neck. **

    Titan 5000 Litre - BlueMaster AdBlue Dispenser - Advanced Specification

    • Product Code: TT
    • Delivery Options: Customer Offloading
    • Guarantee: 10 Year Guarantee - Tank only
    • Made From: Plastic
    • Suitable For Fuel: AdBlue
    • Tank Shape: Vertical

    Titan 5000 Litre - BlueMaster AdBlue Dispenser - Advanced Delivery Information

    Tanks:

    The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page.  Standard tank deliveries are "kerbside" which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.



    Tanks Over 2500L – Articulated Lorry – Customer Offload:

    These tanks will be delivered on an articulated vehicle (approximately 16.5m long x 2.6m wide x 3m high) which has no offloading on board, it is the customer's responsibility to offload the tank, which may require a telehandler / forklift.  Curtain sided vehicles are also used, so please note that if there are obstacles or hanging branches on the road to the delivery site etc, the driver may refuse to drive the vehicle to the customer's location due to the possibility of damaging the vehicle. Please let us know if there are any obstructions before delivery, so we can arrange alternative transport.



    18 Tonne Tail Lift HGV

    This vehicle is the size of the largest bin lorries (for comparison) and is approximately 8.2m long x 2.6m wide x 4m high, often curtain sided so please note that if there are hanging branches etc, these vehicles will not attempt to drive down due to the possibility of damaging the vehicle and so it is recommended that a smaller vehicle is requested. Tanks will be lowered to the ground but not positioned as this is a kerbside delivery.  If a smaller vehicle is required, please email us at sales@fueltankshop.co.uk quoting your order number and name.



    HIAB Delivery

    HIAB delivery is available but must be requested and there will be an additional cost for this service. If a HIAB delivery is required, please email us at sales@fueltankshop.co.uk quoting your order number and name, and we will come back to you with a price for this service.



    Accessories:

    Most accessories will be delivered within 1-3 working days. If you require them quicker, we can on occasions offer a next day service (please contact us to discuss). If the item(s) are out of stock, we will advise you of the expected lead time, and you will of course have the opportunity to cancel with a full refund.





    Titan 5000 Litre - BlueMaster AdBlue Dispenser - Advanced Returns Information

    Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

    All Items must be returned unused, refunds cannot be issued for used or previously installed items.

    Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

    If you wish to return goods, please complete the form on this page to provide further information.

    Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

    Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

    Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.

    View Fuel Tank Shop return policy now.

    Titan 5000 Litre - BlueMaster AdBlue Dispenser - Advanced Brochure
