Piusi Wall Mounted EX50 Fuel Transfer ATEX Pump

Product Ref: F00377000

Home Delivery

United Kingdom mainland delivery from FREE ex VAT

Free Delivery to Mainland UK - (Postcode exclusions apply to AB, BT, DD, EH, FK, G, GY, HS, IM, IV, JE, KA, KW, KY, ML, PA20+ & PH, PO30+, ZE Please Check With Us)

check delivery cost

updown
£743.00 ex VAT
(£891.60 inc VAT)

Piusi Wall Mounted EX50 Fuel Transfer ATEX Pump Downloadable Documents

Piusi Wall Mounted EX50 Fuel Transfer ATEX Pump Description

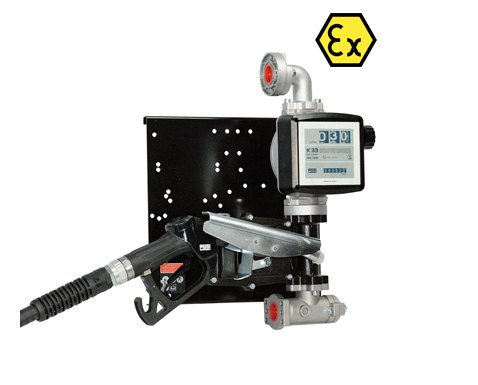

Piusi Wall Mounted EX50 Fuel Transfer ATEX Pump

The Piusi Wall Mounted EX50 ATEX Fuel Transfer Pump is a plated fuel transfer pump kit for dispensing flammable liquid in zone 1 environments. This ATEX approved Piusi fuel pump satisfies the European directives for explosion proof equipment, which makes it suitable for transferring petrol, kerosene or non-flammable liquids such as diesel within a potentially explosive atmosphere.

The ATEX transfer pump is a ready to go solution ideal for connecting straight onto a wall or a tank in static installations. The kit includes a mounting plate, Piusi ATEX automatic nozzle with nozzle holder and switch, delivery hose, mechanical flow meter and inline mesh suction strainer.

Specification

  • Explosion proof kerosene, diesel & petrol transfer pump on a plate
  • Automatic nozzle c/w nozzle holder & switch
  • Inline mesh suction strainer
  • Duty cycle 30 min on/ 60 min off
  • 230v
  • Integrated bypass valve
  • Flow rate: 50lpm (litres per minute)
  • 4m parker delivery hose with bend protection
  • Mechanical ATEX K33 flow meter
  • ATEX certified: II2G Ex d II A T4 Gb

Please note: Piusi is Italian made and therefore supplied with a 2 pin European plug (Europlug).  You will either need to change the plug for a UK 3 pin plug or utilise an adaptor.

Piusi Wall Mounted EX50 Fuel Transfer ATEX Pump Specification

  • Product Code: CT
  • Suitable For Fuel: Petrol, Diesel, Gas Oil

Piusi Wall Mounted EX50 Fuel Transfer ATEX Pump Delivery Information

Tanks:

The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page.  Standard tank deliveries are "kerbside" which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.



Tanks Over 2500L – Articulated Lorry – Customer Offload:

These tanks will be delivered on an articulated vehicle (approximately 16.5m long x 2.6m wide x 3m high) which has no offloading on board, it is the customer's responsibility to offload the tank, which may require a telehandler / forklift.  Curtain sided vehicles are also used, so please note that if there are obstacles or hanging branches on the road to the delivery site etc, the driver may refuse to drive the vehicle to the customer's location due to the possibility of damaging the vehicle. Please let us know if there are any obstructions before delivery, so we can arrange alternative transport.



18 Tonne Tail Lift HGV

This vehicle is the size of the largest bin lorries (for comparison) and is approximately 8.2m long x 2.6m wide x 4m high, often curtain sided so please note that if there are hanging branches etc, these vehicles will not attempt to drive down due to the possibility of damaging the vehicle and so it is recommended that a smaller vehicle is requested. Tanks will be lowered to the ground but not positioned as this is a kerbside delivery.  If a smaller vehicle is required, please email us at sales@fueltankshop.co.uk quoting your order number and name.



HIAB Delivery

HIAB delivery is available but must be requested and there will be an additional cost for this service. If a HIAB delivery is required, please email us at sales@fueltankshop.co.uk quoting your order number and name, and we will come back to you with a price for this service.



Accessories:

Most accessories will be delivered within 1-3 working days. If you require them quicker, we can on occasions offer a next day service (please contact us to discuss). If the item(s) are out of stock, we will advise you of the expected lead time, and you will of course have the opportunity to cancel with a full refund.





Piusi Wall Mounted EX50 Fuel Transfer ATEX Pump Returns Information

Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

All Items must be returned unused, refunds cannot be issued for used or previously installed items.

Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

If you wish to return goods, please complete the form on this page to provide further information.

Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.

View Fuel Tank Shop return policy now.
