Piusi Bi Pump Diesel Transfer Pump

Product Ref: 363A0A / 363B0A / 363010 / 363030 / 36302A / 36304

Home Delivery

United Kingdom mainland delivery from £9.95 ex VAT

Parcel Delivery (Highlands & Islands are charged a higher fee than standard)

check delivery cost

Choose option:

updown
from £366.94 ex VAT
(£440.33 inc VAT)
You may also need:
Piusi Pump Carry Plate Kit
Piusi Pump Carry Plate Kit
£92.12 ex VAT
(£110.54 inc VAT)

Piusi Bi Pump Diesel Transfer Pump Downloadable Documents

Piusi Bi Pump Diesel Transfer Pump Description

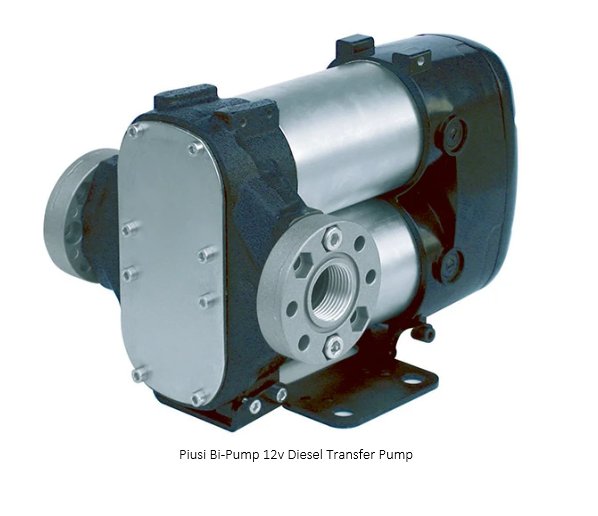

Piusi Bi Pump Diesel Transfer Pump

*Please note the image is for display purposes only and the carry handle is an optional extra*

The Piusi Bi-Pump portable diesel transfer pump is powerful and reliable and is designed for high flow diesel transfer and mobile refuelling. The Bi Pump diesel dispensing pump is essentially two self-priming, cast iron, rotary vane 24 or 12v diesel transfer pumps put together, to provide a greater flow rate. Thanks to its refilling speed and its low voltage, this Piusi pump is designed for refuelling large agricultural vehicles and plant equipment in off-site applications.

This diesel refuelling pump benefits from a sturdy construction, incorporated bypass valve, IP55 protection rating and an on-off switch. .

  • Self-priming BP3000 diesel fuel transfer pump
  • Sintered steel rotors & acetal resin vanes
  • Cast iron pump body
  • Incorporated bypass valve
  • Flow rate: 85ltr Per Min
  • On/off switch
  • Cable & clips 2 and 4 mtr options (on selected models)
  • Direct current brush motors with permanent magnet stators
  • 30min duty cycle
  • 1” BSP flanged inlet/outlet ports
  • Protection grade: IP55
  • Optional carry handle
  • Available in 12v/24v

Piusi Bi Pump Diesel Transfer Pump Specification

  • Product Code: CT
  • Suitable For Fuel: Diesel, Gas Oil

Piusi Bi Pump Diesel Transfer Pump Customer Reviews

By on
"Pump was no problem.
The supplied cable and clips was confusing.
Wired it into the motor box, BROWN cable to Positive terminal, BLUE cable to NEGATIVE terminal. Connected RED clip to battery positive and BLACK clip to battery negative. Pump ran but did not pump fuel!! After checking found that clips on the supplied cable were not fitted the the appropriate colored conductors. (Red to Brown = Positive or Live. Black to Blue = Negative or Neutral).
The terminal eyelets fitted had to be replaced as they were too small for the terminal screw on the Motor switch!"
Star Rating 4
By on
"So far all good and working well"
Star Rating 4
By on
"Excellent service right through, help with ensuring it was the correct pump, quick delivery and good price. Would certainly use again and recommend to anyone. "
Star Rating 5
By on
"First class pump. Quick transfer rate and easy to install. Recommended."
Star Rating 5
