Locking Angle Brass Gate Valve

Product Ref: OAB3046

Approx 2-3 Days

Home Delivery

United Kingdom mainland delivery from £9.95 ex VAT

Parcel Delivery (Highlands & Islands are charged a higher fee than standard)

check delivery cost

Locking Angle Brass Gate Valve Description

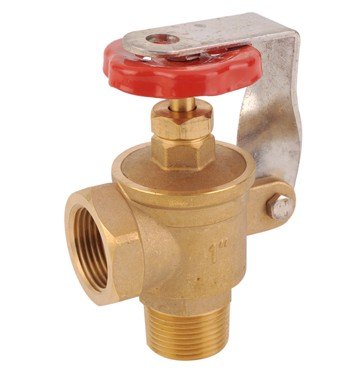

Locking Angle Brass Gate Valve

The Locking Angle Brass Gate Valve is used primarily on the bottom outlet of a gravity fed diesel storage tank. These gate valves are designed to come out at 90º to take away the pressure on the hose, and to maximize the flow rate through the delivery hose without restriction. The locking lever on these gate valves allows it to be padlocked when not in use. This angle gate valve is supplied as standard on some of our Gravity Hose Kits.

  • Brass gate valve
  • NBR seals
  • 1” M x F threads
  • PN8 rated
  • Suitable for water, diesel and oil
  • Bore DN (mm) - 24.5
  • Pressure Rating (Bar) - PN8
  • Length (mm) - 90
  • Height (mm) - 80


Locking Angle Brass Gate Valve Specification

  • Product Code: CT
  • Suitable For Fuel: Diesel, Gas Oil, Heating Oil, Waste Oil, Bio Fuel, Lubricant, Clean Oil, Water

Locking Angle Brass Gate Valve Customer Reviews

By on
"Well the valve does what it's supposed to do, except the standard size padlock that I have doesn't fit, so I need to buy another one with a longer shank. Also the item was marked at £18.50 plus VAT and then with postage the total came to nearly double that, which was a bit unexpected."
Star Rating 4

Locking Angle Brass Gate Valve Delivery Information


The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page.  Standard tank deliveries are "kerbside" which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.


Tanks Over 2500L – Articulated Lorry – Customer Offload:

These tanks will be delivered on an articulated vehicle (approximately 16.5m long x 2.6m wide x 3m high) which has no offloading on board, it is the customer's responsibility to offload the tank, which may require a telehandler / forklift.  Curtain sided vehicles are also used, so please note that if there are obstacles or hanging branches on the road to the delivery site etc, the driver may refuse to drive the vehicle to the customer's location due to the possibility of damaging the vehicle. Please let us know if there are any obstructions before delivery, so we can arrange alternative transport.


18 Tonne Tail Lift HGV

This vehicle is the size of the largest bin lorries (for comparison) and is approximately 8.2m long x 2.6m wide x 4m high, often curtain sided so please note that if there are hanging branches etc, these vehicles will not attempt to drive down due to the possibility of damaging the vehicle and so it is recommended that a smaller vehicle is requested. Tanks will be lowered to the ground but not positioned as this is a kerbside delivery.  If a smaller vehicle is required, please email us at sales@fueltankshop.co.uk quoting your order number and name.


HIAB Delivery

HIAB delivery is available but must be requested and there will be an additional cost for this service. If a HIAB delivery is required, please email us at sales@fueltankshop.co.uk quoting your order number and name, and we will come back to you with a price for this service.



Most accessories will be delivered within 1-3 working days (certain products and postcodes may take longer, please check the product page for update to date information). If you require them quicker, we can on occasions offer a next day service (please contact us to discuss). If the item(s) are out of stock, we will advise you of the expected lead time, and you will of course have the opportunity to cancel with a full refund.



Locking Angle Brass Gate Valve Returns Information

Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

All Items must be returned unused, refunds cannot be issued for used or previously installed items.

Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

If you wish to return goods, please complete the form on this page to provide further information.

Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.

View Fuel Tank Shop return policy now.
