Klargester BioDisc BA Sewage Treatment Plant- 6 People

Klargester BioDisc BA Sewage Treatment Plant- 6 People

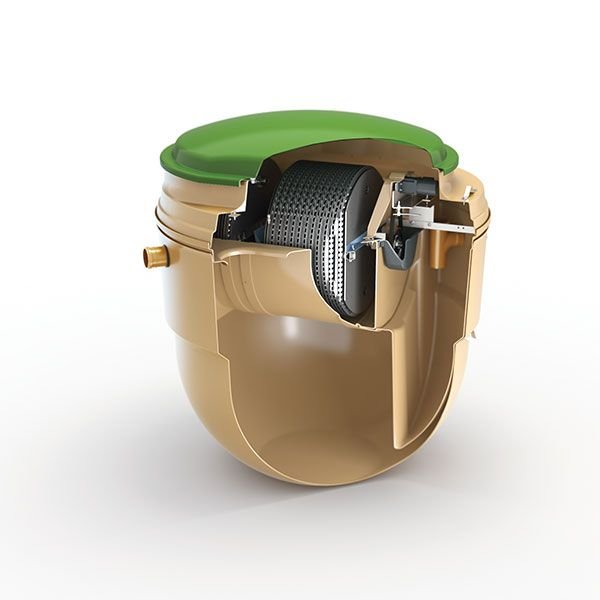

The Klargester BioDisc sewage treatment plant provides a reliable, efficient and environmentally safe solution to your sewage disposal needs perfect for domestic dwellings without access to mains drainage. Ideal for locations where discharge is to sub-surface irrigation (soakaway), or to a suitable watercourse where approved by the Regulator, and where a septic tank will not meet the required standards. The Klargester BioDisc is a packaged sewage treatment plant utilising Rotating Biological Contractor technology for small domestic applications. This process offers inherent cost and performance benefits with a low carbon footprint. In normal domestic situations the BioDisc will produce effluent qualities of 8mg/I BOD, 13mg/I SS, 4mg/I ammonia and 2mg/I phosphate. Using rotating biological contractor technology the BioDisc delivers a pollution removal level in excess of 95%

Choose from either Gravity or Integral Pumped System (IPS):
Gravity is the standard no cost option, however where the inlet to the watercourse or soakaway is higher than the outlet of the treatment plant you will require the optional Integral Pumped System (IPS) as this will pump the waste water uphill and into your discharge point. The pumped system (IPS) also comes with a high level alarm.

Klargester BA Tank Features

• Affordable running costs and maintenance costs
• Low noise when in operation and odours free - to BS EN13725 standard
• Suitable for homes with up to 6 people
• Low profile covers for minimal visual impact
• Invert options to match the site
• Control panel issues an immediate alert when a problem occurs
• Single phase standard power supply
• Optional integral pump available
• Certified to European Standard EN - 12566-3
• CE marked

Technical Data

Delivery

All the our Klargester tanks are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.

Do you require Commissioning?

To ensure your system operates to maximum efficiency, we recommend tried and tested Commissioning by our own British Water and Safe Building trained engineers. Our unrivalled knowledge means that we are best placed to carry out bespoke assessments to get your system up and running. The commissioning will also provide you with a unique checklist against your system, ensuring your complete peace of mind and reassurance that your system's mechanical and electrical components are in good working order.

What's included in the commissioning?

The below is carried out out by a Kingspan Service Engineer, and will only be checked if the unit has been installed in line with the provided installation guidelines.

• Check Plant is level, 5mm tolerance
• Confirm the ground around the plant is level, flat and that the lid securely fastens
• Confirm the panel has been mounted correctly
• Make the required connections to the panel using correct glands
• Make all electrical connections within the tank
• Ensure all safety guards are fitted
• Sat all greasomatics within the plant (if applicable)
• Check belt/chain tension and alignment
• Check pump float activates freely (pumped discharge only)
• Check operation of sludge return pump (nitrification plants only)
• Check direction of disc pack
• Check levels within unit
• Test and set any Alarms supplied with the unit

If the BioFicient/BioTec has been purchased, commissioning includes the above plus:

• Check the air blower is secure
• Set forward feed airlift (larger plants)
• Make sure there is adequate air supply
• Connect all airlines and set valves
• Make sure BioZones have adequate air supply
• Wire and set timer solenoid for sludge return (if applicable)

On completion they will provide a site specific commissioning certificate

*terms and conditions apply
