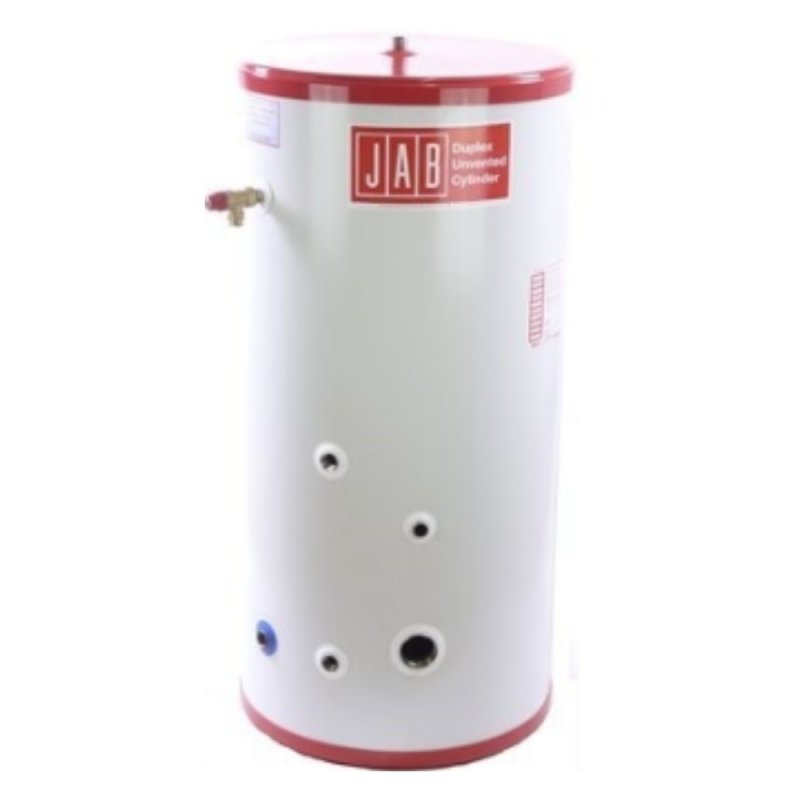

JAB DUC 2 90L Indirect Slim Unvented Cylinder

Product Ref: JD2090ISLIM

25 Year Guarantee
  • Volume: 90ltr
  • Dimensions: H:900mm
  • Diameter: 470mm
  • (allow 7 Working days for delivery)

    Home Delivery

    United Kingdom mainland delivery from FREE ex VAT

    FREE Delivery to Mainland UK

    check delivery cost

    JAB DUC 2 90L Indirect Slim Unvented Cylinder Downloadable Documents

    JAB DUC 2 90L Indirect Slim Unvented Cylinder Description

    JAB DUC 2 90L Indirect Slim Unvented S/S Cylinder

    The JAB DUC 2 90L Indirect Slim Unvented Stainless Steel Cylinder is a high-performance domestic hot water storage cylinder designed to deliver reliable, mains-pressure hot water to taps, showers, and appliances throughout the home.

    Constructed from high-grade duplex stainless steel for durability and corrosion resistance, the DUC 2 90 provides long service life with minimal maintenance. Its compact 90-Litre capacity makes it ideal for smaller homes, apartments, and en-suite systems, while the unvented design eliminates the need for a cold-water storage tank - freeing up valuable loft space and providing powerful water pressure at every outlet.

    This indirect model is designed to be heated by a gas or oil boiler, with an additional immersion heater connection for backup or off-peak heating.

    Designed with installation in mind, allowing most existing airing cupboards to be used. The ideal choice for the replacement of standard copper cylinders.



    Applications

    • Domestic and light commercial properties
    • Properties seeking mains-pressure hot water without loft tanks
    • Homes using a gas or oil boiler for water heating
    • Modernisation or replacement of traditional vented systems
    • En-Suite bathrooms or low-profile hot water installations
    • Ideal for properties with limited space
    • Typical use: 1-Bedroom flats or small apartments with 1 bathroom.



    Key Features & Benefits

    • 90-Litre Capacity - 90-litre stainless stel unvented cylinder
    • Indirect coil for boiler connection
    • Factory-Fitted high-performance installation
    • Factory tested to meet G3 Building Regulations
    • High-Pressure Performance- Delivers strong, consistent mains-pressure hot water
    • Compact Design - Space-saving cylinder ideal for cupboards, lofts, or utility rooms
    • Efficient heating - Fast heat recovery from connected boilers
    • Durable Stainless Steel Build - Corrosion-resistant for long service life
    • No Cold-Water Tank Required - Saves loft space and simplifies installation
    • Energy-Efficient - Advanced insulation reduces heat loss and energy costs
    • Compliant and Safe - Supplied with all safety controls and G3 Certification
    • 25-Year Warranty - Including One Year On-Site Warranty
    • U.K. Manufactured



    How it works

    1. Colds Mains Supply: The cylinder takes in cold water directly from the mains supply
    2. Primary Heating: The indirect coil inside the cylinder is heated by your central heating boiler, transferring heat to the stored water
    3. Hot Water Storage: The heated water is stored in the stainless-steel vessel, ready for use
    4. Backup Heating: An immersion heater can be used as an alternative or secondary heat source
    5. Mains Pressure Delivery: Hot water is supplied to outlets at mains pressure, ensuring strong flow rates and consistent temperature.



    Specifications

    Product Code JD2090ISLIM
    Nominal Capacity (L) 90
    Height (mm) 900
    Diameter Ø (mm) 470
    Reheat From Cold (Minutes) 26
    Reheat from 70% Draw-off (minutes) 18
    ERP Band C
    Immersion Rating (kW) 3
    Standing Heat Loss (kWh/24hrs) 1.37



    All indirect units are supplied with:

    • 1 x Dual Stat. And high Limit Stat
    • 1 x 3kW 240v s/p Immersion heater
    • 1 x Expansion Vessel
    • 1 x T & P Relief Valve
    • 1 x 3 bar Inlet Chain
    • 1 x Two Port Motorised Valve



    * Please note, the image is for visual purposes only and may be slightly different upon arrival
