Capillary Fire Valve - 90 Degree 1/4 Inch - Anglo Nordic

Product Ref: 1407210/1407211/1407212

(allow 5 Working days for delivery)

Home Delivery

United Kingdom mainland delivery from £9.95 ex VAT

Parcel Delivery (Highlands & Islands are charged a higher fee than standard)

check delivery cost

Choose option:

updown

Capillary Fire Valve - 90 Degree 1/4 Inch - Anglo Nordic Downloadable Documents

Capillary Fire Valve - 90 Degree 1/4 Inch - Anglo Nordic Description

Capillary Fire Valve - 90 Degree 1/4 Inch - Anglo Nordic

Anglo Nordic capillary fire valves provide a dependable and affordable option compared with other leading brands.

OFCERT Licence No. 0953051502



What Are Fire Valves?

Fire safety valves are essential components used in oil-fired boilers and other oil-burning appliances that may be exposed to fire risks. When ambient temperatures exceed a defined limit, the valve automatically activates to shut off the fuel supply to the burner, helping to prevent the spread of fire.

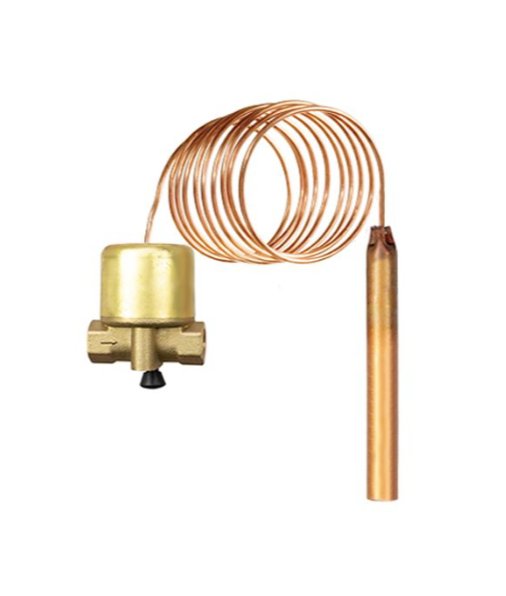

This model operates using a capillary mechanism: a temperature-sensing probe is linked to the trip mechanism via a hollow copper capillary tube. Available in 2m, 3m, and 6m lengths, this allows for flexible installation even when the fuel line is positioned at a distance from the appliance.

Also known as Remote Sensing Fire Valves, these units must be installed in accordance with BS 5410: Part 1: 1997, which is cited in the Building Regulations and Standards for:

  • England and Wales (Part J)

  • Scotland (Part F)

  • Republic of Ireland (Part J)



Important Safety Notes

Non-compliance with the following points may void the product warranty:

  • Suitable only for Class C and D fuel oils and biofuel blends up to B35.
  • Installation and associated pipework should be carried out only by a qualified engineer, in line with BS 5410 Part 1 and all relevant local building regulations.



Flow Rates

  • Kerosene: 56 L/h at 1m head or 85 L/h at 2m head

  • Diesel: 50 L/h at 1m head or 76 L/h at 2m head



Maintenance

When properly installed, the Capillary Fire Valve (CFV) requires no routine maintenance. However, it should be tested annually by applying heat to the sensor until the rated shut-off temperature is reached. The reset/shut-off button located underneath the valve body should pop out automatically, indicating activation. Once the sensor has cooled, press the button back in to reopen the valve and restore fuel flow.

Capillary Fire Valve - 90 Degree 1/4 Inch - Anglo Nordic Specification

  • Product Code: HY
  • Guarantee: 1 Year Guarantee
  • Suitable For Fuel: Heating Oil
