Oil Tank Sight Gauge - Atkinson Tankmaster

Fuel Tank Shop Oil Tank Sight Gauge - Atkinson Tankmaster

Product Description

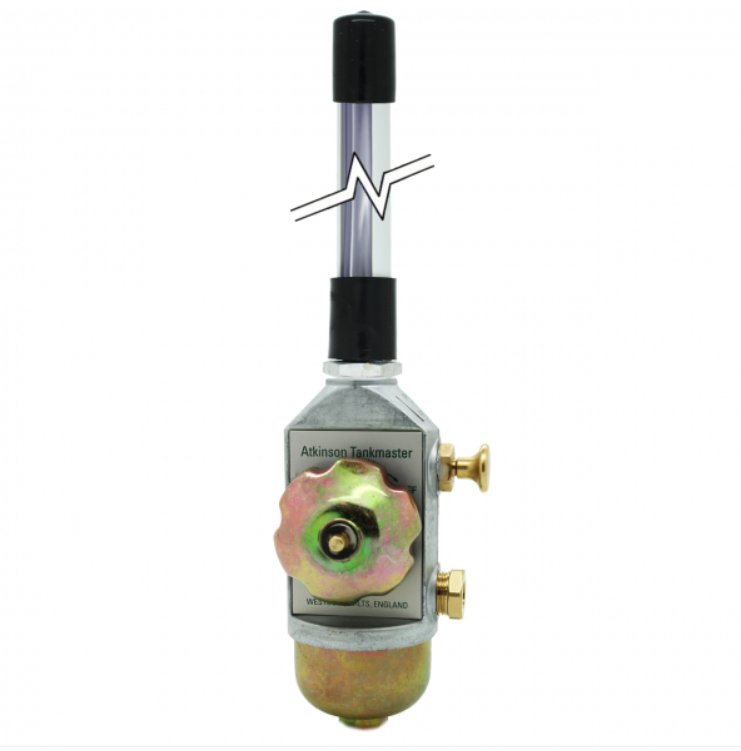

Oil Tank Sight Gauge - Atkinson Tankmaster Valve 4-in-1 Sight Gauge
Basic visual sight gauge for single skin oil tanks with an integral oil filter, shut off valve & fire valve. Choice of sight gauge sizes to suit most tanks (4ft 6" to 10ft).

Manual 4-in-1 level gauge for single skin tanks:
1 - Control valve to turn on/off oil supply
2 - Pull to read valve/sight tube allows inspection of tank contents level
3 - Integral filter to ensure only clean oil is allowed to pass from the tank
4 - Self-closing hand wheel isolates oil supply in case of fire near the tank;

Atkinson Tankmaster Features

  • PVC Sight Gauge
  • Pull-To-Read valve to isolate flow into tube during rest
  • On/Off Handwheel
  • Eutectic Solder Firevalve built into handwheel
  • 10mm Brass Compression fitting outlet
  • 52 Micron Nylon Filter (Replaceable)
  • Reversible body for left or right hand exit of compression fitting
  • Standoff Clip for mounting top of tube to top of tank
  • 1/2" BSP Male Tank Fitting (if fitting to a 1" outlet you will need an extension piece - see below)
  • Mounting kit, for top of sight tube
  • Full instructions

Tankmaster Adaptor (Extension Pieces)

  • Required for fitting to 1" BSP outlets (as Tankmaster body is 1/2")
  • Required for plastic tanks (when fitting to a plastic tank the outlet will be recessed - you will require an extension fitting to ensure the Atkinson Tankmaster Valve does not foul the end of the tank and prevent installation)
  • Available in 1", 3 1/2", 6 1/4" and 7 1/4" (1" BSP Male Tank fitting/lock-nut at one end and 1/2" BSP Female at the other end - select your required length from the options)

Tip: Sight Gauges should not be fitted to bunded tanks; however, they may be used on any single skinned tank or in any area that is protected by a bund.

Product Code: TM4790

Approx 3-5 Days

from £37.40 ex VAT
(£44.88 inc VAT)
Delivery Options
  • Parcel Delivery (Highlands & Islands are charged a higher fee than standard)
    £9.95 (£11.94 inc VAT)

Certain postcodes in Wales, Scotland, highlands and Islands may have additional charges, please click here to check your postcode

up down

Item: ATK

Returns Information

Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to 4.6 & 4.7. **

Please be aware that returning a tank can be complicated and expensive so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

Delivery Information

Tanks:

The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page.  Standard tank deliveries are "kerbside".

Accessories:

Most accessories will be delivered within 1-3 working days. If you require them quicker, we can on occasions offer a next day service (please contact us to discuss). If the item(s) are out of stock we will advise you of the expected lead time and you will of course have the opportunity to cancel with a full refund.
