Unitel Fuel Tank Level Gauge (Percentage)

Product Ref: OAB9000

Approx 2-3 Days

Home Delivery

United Kingdom mainland delivery from £9.95 ex VAT

Parcel Delivery (Highlands & Islands are charged a higher fee than standard)

check delivery cost

Unitel Fuel Tank Level Gauge (Percentage) Downloadable Documents

Unitel Fuel Tank Level Gauge (Percentage) Description

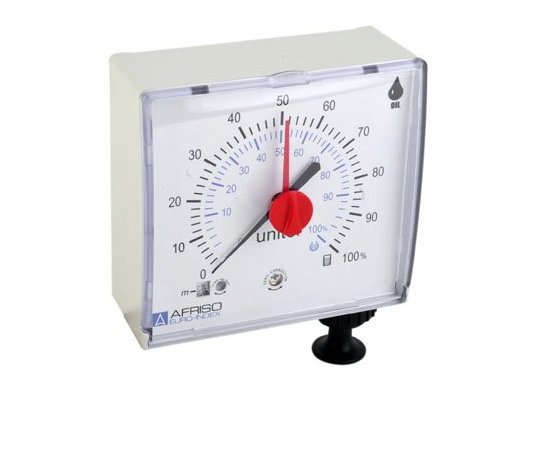

Unitel Hydrostatic Fuel Tank Gauge

The Unitel Hydrostatic Fuel Tank Gauge from Afriso is a pneumatic tank level indicator designed for use primarily on fuel oil and diesel tanks. It has a spring-loaded plunger that you pull and release until the needle settles on the contents left within the storage tank, which is then displayed clearly as a percentage on its large mechanical face. This fuel tank level gauge is suitable for both horizontal and rectangular tanks, with heights between 900mm and 3000mm, making the Unitel a highly popular and versatile tank level indicator.

The Unitel fuel tank gauge also benefits from a handy adjustable second needle for setting a level parameter, which you can then use to indicate the level at which you need to reorder fuel. Supplied in an impact resistant casing, the contents gauge can be easily wall or tank mounted.

Features of the Unitel Hydrostatic Fuel Tank Level Indicator:

  • Pneumatic fuel tank contents gauge
  • Percentage reading
  • Spring-loaded plunger to pull/release
  • 1” and ½'' M BSP dual threaded
  • Supplied with 20 metres of PVC capillary
  • For tanks between 900mm-3000mm
  • Accuracy +/-3% at full scale
  • Gauge face 145mm x 135mm
  • For horizontal & rectangular tanks
  • Suitable for diesel, kerosene, biodiesel up to B100, water and urea

Unitel Fuel Tank Level Gauge (Percentage) Specification

  • Product Code: CT
