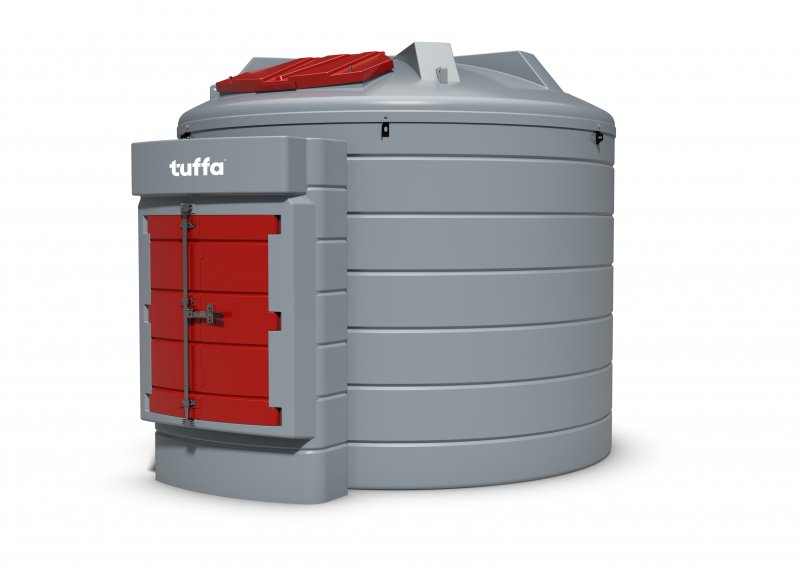

Tuffa 10000L Plastic Bunded Diesel Dispensing Tank

Product Ref: 10000VFBS

10000 litre plastic bunded diesel dispensing tank c/w 240v pump, flow meter, filter and automatic nozzle

Customer Offloading 10 Year Guarantee - Tank only Plastic Diesel, Gas Oil, HVO Diesel, Gas Oil, HVO Diesel, Gas Oil, HVO Vertical Bunded
  • Volume: 10000ltr
  • Weight: 500.000kg
  • Dimensions: H:2590mm
  • Footprint (L+W): 3490mm + 2890mm
  • Diameter: 2890mm
  • Lead time approx. 2 - 3 weeks for standard specification

    Home Delivery

    United Kingdom mainland delivery from FREE ex VAT

    FREE Delivery to Mainland UK, Customer Offload - Postcode Exclusions Apply

    check delivery cost

    Choose option:
    Choose option:
    Choose option:

    You may also need:
    65 Litre Fuel Spill Kit - Round Drum OSK6
    65 Litre Fuel Spill Kit - Round Drum OSK6
    £85.00 ex VAT
    (£102.00 inc VAT)
    Boot Cleaner Premium
    Boot Cleaner Premium
    £467.00 ex VAT
    (£560.40 inc VAT)

    Tuffa 10000L Plastic Bunded Diesel Dispensing Tank Tank Compliance

    Compliant with current requirements for commercial diesel storage and dispensing - please see attached PDF for further details

    Tuffa 10000L Plastic Bunded Diesel Dispensing Tank Video

    Tuffa 10000L Plastic Bunded Diesel Dispensing Tank Description

    10000L Bunded Steel Diesel Dispensing Tank

    Tuffa’s 10000 litre plastic bunded diesel tank (2200 gallon) is an above-ground diesel fuel station consisting of a primary tank (which holds the fuel) surrounded by a bund and fitted with a cabinet which secures the tank’s ancillary equipment. This tank is fitted with premium ancillary equipment as standard including an external pump, K33 mechanical flow meter, automatic shut off nozzle and FMS gauge and alarm. Optional extras and upgrades are also available including a fuel management system, pulse meter and high flow pump. This is also the largest model we manufacture available with a 12V/24V pump enabling charge directly from a vehicle, making it popular with industries such as agriculture where the tank’s intended location does not have mains power. The 10000 litre plastic bunded diesel tank is complete and ready to use requiring only a hard, flat concrete base and an electrical connection (if not choosing the 12/24V version). This tank is compatible with white or red diesel and HVO100 or HVO diesel blends. With a life expectancy in excess of 20 years (when correctly installed, maintained and used), and a 10 year warranty when registered, this bunded diesel tank is safe and durable

    This tank is ideal for domestic and non-domestic purposes.


    • External pump 230v
    • 6m of delivery hose
    • Automatic shut off nozzle
    • K33 mechanical flow meter
    • Nozzle holster
    • Control panel with key switch 230v
    • 2″ BSP fill connection with cap and chain
    • Overfill prevention valve
    • Vent
    • FMS gauge and alarm 230V
    • 10 micron water and particulate filtration
    • Lockable cabinet
    • HVO Compatible


    Available with optional upgrades:

    • Fuel management
    • High flow pump (85lpm - If using Hose Reel it is 78lpm)
    • 10m hose reel
    • Various configurations available

    **Please note that image 2 is showing the inside of the cabinet with the Fuel Management and Hose Reel Options**

    Tuffa 10000L Plastic Bunded Diesel Dispensing Tank Specification

    • Product Code: TF
    • Delivery Options: Customer Offloading
    • Guarantee: 10 Year Guarantee - Tank only
    • Made From: Plastic
    • Suitable For Fuel: Diesel, Gas Oil, HVO
    • Tank Shape: Vertical
    • Tank Type: Bunded
    • Footprint (L+W): 3490mm + 2890mm

    Tuffa 10000L Plastic Bunded Diesel Dispensing Tank Delivery Information


    The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page.  Standard tank deliveries are "kerbside" which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.


    Tanks Over 2500L – Articulated Lorry – Customer Offload:

    These tanks will be delivered on an articulated vehicle (approximately 16.5m long x 2.6m wide x 3m high) which has no offloading on board, it is the customer's responsibility to offload the tank, which may require a telehandler / forklift.  Curtain sided vehicles are also used, so please note that if there are obstacles or hanging branches on the road to the delivery site etc, the driver may refuse to drive the vehicle to the customer's location due to the possibility of damaging the vehicle. Please let us know if there are any obstructions before delivery, so we can arrange alternative transport.


    18 Tonne Tail Lift HGV

    This vehicle is the size of the largest bin lorries (for comparison) and is approximately 8.2m long x 2.6m wide x 4m high, often curtain sided so please note that if there are hanging branches etc, these vehicles will not attempt to drive down due to the possibility of damaging the vehicle and so it is recommended that a smaller vehicle is requested. Tanks will be lowered to the ground but not positioned as this is a kerbside delivery.  If a smaller vehicle is required, please email us at sales@fueltankshop.co.uk quoting your order number and name.


    HIAB Delivery

    HIAB delivery is available but must be requested and there will be an additional cost for this service. If a HIAB delivery is required, please email us at sales@fueltankshop.co.uk quoting your order number and name, and we will come back to you with a price for this service.



    Most accessories will be delivered within 1-3 working days. If you require them quicker, we can on occasions offer a next day service (please contact us to discuss). If the item(s) are out of stock, we will advise you of the expected lead time, and you will of course have the opportunity to cancel with a full refund.



    Tuffa 10000L Plastic Bunded Diesel Dispensing Tank Returns Information

    Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

    All Items must be returned unused, refunds cannot be issued for used or previously installed items.

    Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

    If you wish to return goods, please complete the form on this page to provide further information.

    Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

    Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

    Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.
