Stainless Steel Chemical Hand Pump

Product Ref: CTS2010

Approx 2-3 Days

Home Delivery

United Kingdom mainland delivery from FREE ex VAT

Free Delivery to Mainland UK - (Postcode exclusions apply to AB, BT, DD, EH, FK, G, GY, HS, IM, IV, JE, KA, KW, KY, ML, PA20+ & PH, PO30+, ZE Please Check With Us)

check delivery cost

updown
You may also need:
EVO Recycled - General Purpose EVO Drum Topper


EVO Recycled - General Purpose EVO Drum Topper
from £23.00 ex VAT
(£27.60 inc VAT)

Stainless Steel Chemical Hand Pump General Safety Information

1. Always carefully read, thoroughly understand and follow the pump operating instructions. Use this pump correctly and with care for the purpose for which it is intended. Failure to do may cause damage or personal injury, and will invalidate the warranty. Retain instructions for future reference.

2. Contact your chemical or fluid supplier to check for compatibility with pump prior to installation and operation

3. Prior to use, always carefully and thoroughly read and understand the COSHH / MSDS information contained in the Safety Data Sheet supplied for the chemical which is to be pumped.

4. Wear protective clothing (goggles, face masks, long sleeves, long trousers, gloves, aprons, etc.) as set forth in the COSHH / MSDS Safety Data Sheet when pumping any hazardous chemicals.

5. Certain liquids, pump & containers should be grounded to avoid static electricity, refer to COSHH / MSDS sheets and site RA.

6. Use the pump in a ventilated area.

7. Pump should be washed out before it is used since processing lubricants may contaminate the fluids.

8. Prior to use, inspect your pump thoroughly verifying its proper assembly.

9. If pump is removed from drum, it should be thoroughly rinsed in a liquid that is compatible with both the pump and fluid.

Stainless Steel Chemical Hand Pump Description

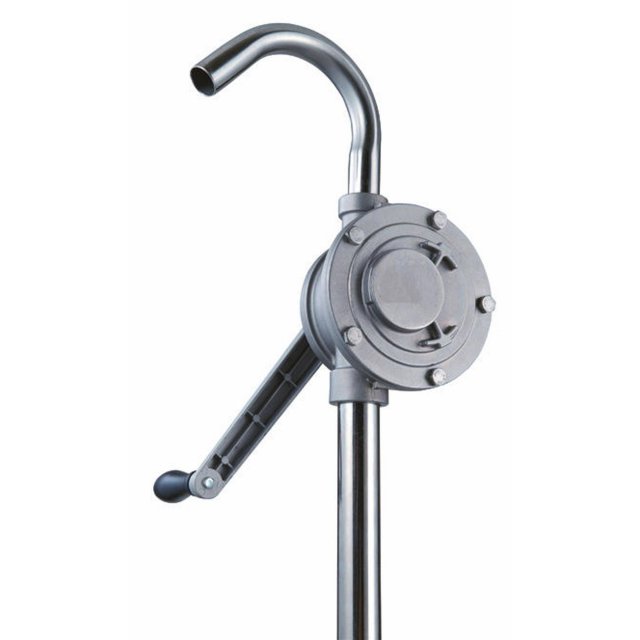

Stainless Steel Chemical Hand Pump

The Stainless Steel Chemical Hand Pump is a sturdy rotary hand pump for the manual dispensing of a wide range of fluids. This pump is suitable for use with corrosive chemicals, alcohols, acids, alkalis, oils, solvents, lubricants and also for use as a hand fuel pump.


Features:

  • Rotary Manual Oil, Diesel and Chemical Hand Pump
  • Stainless steel and Teflon consutrction
  • Max flow rate: 280ml/rotation
  • Max viscosity: 410cSt
  • 1'' curved spout
  • 2'' bung adaptor
  • 3 part 1060mm suction pipe

Specification

  • Max Flow (ml/rotation) - 280
  • Suction Inlet – 1 1/4'' O/D
  • Suction Length – 1060mm
  • Dispensing Outlet – 1'' O/D – Bent Spout
  • Mounting – 2” BSP
  • Chemicals, diesel, oil

Stainless Steel Chemical Hand Pump Specification

  • Product Code: CT
  • Suitable For Fuel: Diesel, Gas Oil, Lubricant

Stainless Steel Chemical Hand Pump Customer Reviews

By on
"gute Qualit├Ąt, schnelle Lieferung"
Star Rating 5

Stainless Steel Chemical Hand Pump Assembly and Installation

1. Check to see if all parts are included.

2. Assemble handle (Ref No. 13-15) to Handle Shaft (Ref No. 12). Align set screw (Ref No. 16) to indent of Shaft (Ref No. 2) and tighten the set screw (Ref No. 16)

3. In order to avoid leakage, please use appropriate sealant to seal three suction pipe (Ref No. 19). Insert the bung adapter (Ref No. 17+18) into suction pipe (Ref No. 19) and thread suction pipe (Ref No. 19) into pump inlet.

4. Insert pump and suction tube assembled with bung adapter into the drum, and then tighten bung adapter thumb screw (Ref No. 18) by hand. Be sure to set pump and suction tube assembly so that the suction tube is at the desired depth in the drum and is not blocked.

Stainless Steel Chemical Hand Pump Operation

1. Ensure pump is securely mounted to the drum and all safety precautions have been observed.

2. Turn the handle in clockwise direction and discharge liquid into appropriate container.

3. Check that there are no leaks.

Warning: The pump will become harder to turn if used with high viscosity liquid (~400cSt), which may shorten the life of the pump.

4. Ensure pump is stored correctly and secured when not in use – refer to site RA.
