Piusi Filtroll Diesel Oil Filtration Unit

Product Ref: F00506000 / F00506010 / F00506060

Home Delivery

United Kingdom mainland delivery from FREE ex VAT

Free Delivery to Mainland UK - (Postcode exclusions apply to AB, BT, DD, EH, FK, G, GY, HS, IM, IV, JE, KA, KW, KY, ML, PA20+ & PH, PO30+, ZE Please Check With Us)

check delivery cost

Choose option:

updown
You may also need:
Piusi Clear Captor Fuel Filter Element
Piusi Clear Captor Fuel Filter Element
£27.73 ex VAT
(£33.28 inc VAT)
Piusi Water Captor 150l Element Only
Piusi Water Captor 150l Element Only
£103.11 ex VAT
(£123.73 inc VAT)

Piusi Filtroll Diesel Oil Filtration Unit Description

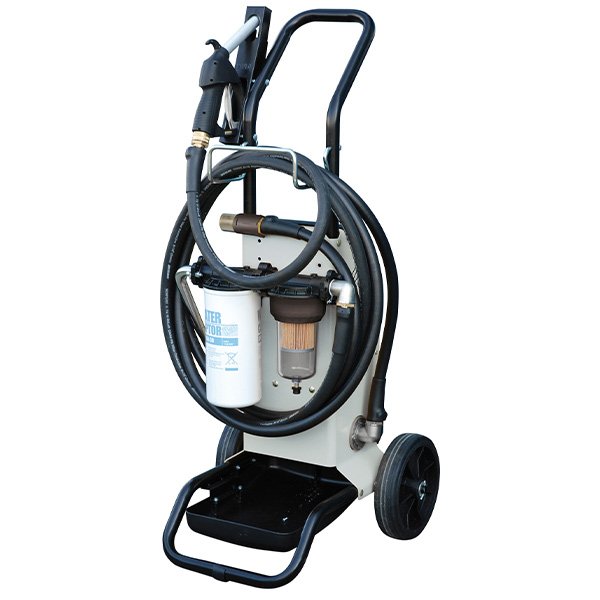

Piusi Filtroll - Portable Diesel Filter

The Piusi Filtroll is a portable filtration unit, which provides double filtering of diesel by absorbing any water or particle impurities that are in the fuel. This particle and water filter system comes in the form of a trolley featuring sturdy wheels, a drip tray to prevent environmental damage, pump and suction and delivery hoses. 12v and 230v pump options.

  • First stage filtering of 30 micron for water (Piusi Water Captor F00611020A)
  • Second stage filtering of 5 micron for particles (Piusis Clear Captor F00611030A)

230v Diesel Version:

  • Max flow rate (lpm) - 56
  • 230v
  • Nozzle type - Self 3000
  • Filter - 1 x 30u Water and 1 x 5u Particle
  • Suction Hose - 4m
  • Delivery Hose - 4m

 230v Oil & Diesel Version:

  • Max flow rate (lpm) - 25
  • 230v
  • Nozzle type - 1' Tube
  • Filter - 1 x 30u Water and 1 x 5u Particle
  • Max fluid viscosity - 500 cSt
  • Suction Hose - 3m
  • Delivery Hose - 3m

12v Diesel Version:

  • Max flow rate (lpm) - 56
  • 12v
  • Nozzle type - Self 3000
  • Filter - 1 x 30u Water and 1 x 5u Particle
  • Suction Hose - 4m
  • Delivery Hose - 4m

Applications

Piusi Filtroll can be used to transfer diesel from one tank to another, cleaning it quickly and efficiently in the process or as a fuel dispenser directly to equipment. Piusi Filtroll helps to maintain bulk amounts of good quality diesel. Excess water collects in glass bowls below the filter body and can be released for disposal.

Please note: Piusi is Italian made and therefore supplied with a 2 pin European plug (Europlug).  You will either need to change the plug for a UK 3 pin plug or utilise an adaptor.
