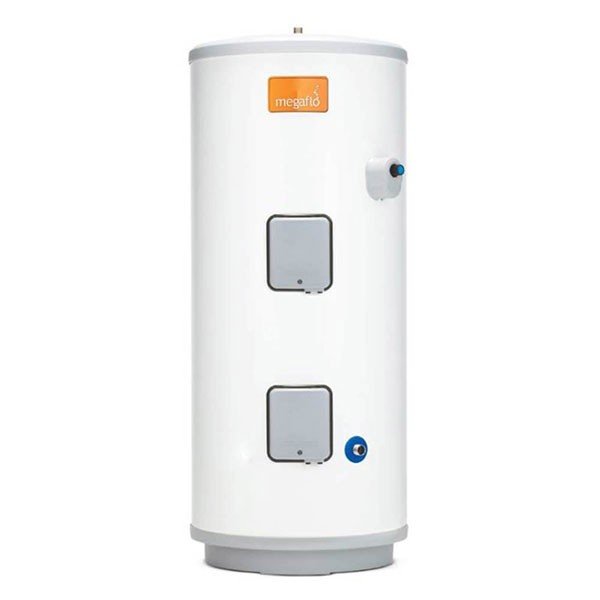

Megaflo Eco 145 Litre Direct Unvented Hot Water Cylinder

Product Ref: 95050464

25 Year Guarantee
  • Volume: 145ltr
  • Weight: 31.000kg
  • Dimensions: H:1229mm
  • Diameter: 579mm
  • Lead time approx. 2 working days

    Home Delivery

    United Kingdom mainland delivery from FREE ex VAT

    FREE Standard Cylinder Delivery - Postcode exclusions apply to AB, IV, PH, PA, KW, HS, KA, KY, DD, BT, TR, PO30, GY, JE, IM

    check delivery cost


    Megaflo Eco 145 Litre Direct Unvented Hot Water Cylinder Downloadable Documents

    Megaflo Eco 145 Litre Direct Unvented Hot Water Cylinder Description

    Heatrae Sadia Megaflo 145 Litre Eco Direct Unvented Hot Water Cylinder

    Heatrae Sadia Megaflo are the market leaders in Hot Water Cylinders. The internal expansion system keeps external pipework to a minimum, removing the need for a separate expansion vessel. UK designed, engineered and manufactured, to exacting detail and from Duplex stainless steel. 100% pressure tested to 1.6MPa (16 bar) The unit is supplied complete with all the necessary safety and control devices needed to allow connection to the cold water mains. All these components are preset

    Package includes:

    • Cylinder incorporating 2 x factory fitted immersion heaters and thermal controls
    • factory fitted temperature and pressure relief valve `
    • Instructions (inc benchmark commissioning checklist & service record)
    • Cold water control pack `
    • Combination valve (inc pressure reducing valve, pressure relief valve, check valve and isolating valve)
    • Tundish
    •  T&P relief valve insulation set
    • Drain valve
    • Titanium electric heating elements

    Heatrae Sadia Megaflo Eco Direct Unvented Hot Water Cylinder Specification

    • Internal floating baffle expansion system
    • 60mm of CFC / HCFC-free injected foam for the best possible heat retention and energy efficiency
    • High performance 'coil-in-coil' heat exchanger in indirect models for exceptionally fast recovery times
    • Unique 'L' shaped immersion heater maximises the volume of hot water available when heated electrically
    • Titanium electric heating elements on direct models for extra long-life


    Megaflo Eco 145 Litre Direct Unvented Hot Water Cylinder Specification

    • Product Code: PF
    • Guarantee: 25 Year Guarantee

    Megaflo Eco 145 Litre Direct Unvented Hot Water Cylinder Delivery Information


    The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page.  Standard tank deliveries are "kerbside" which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.


    Tanks Over 2500L – Articulated Lorry – Customer Offload:

    These tanks will be delivered on an articulated vehicle (approximately 16.5m long x 2.6m wide x 3m high) which has no offloading on board, it is the customer's responsibility to offload the tank, which may require a telehandler / forklift.  Curtain sided vehicles are also used, so please note that if there are obstacles or hanging branches on the road to the delivery site etc, the driver may refuse to drive the vehicle to the customer's location due to the possibility of damaging the vehicle. Please let us know if there are any obstructions before delivery, so we can arrange alternative transport.


    18 Tonne Tail Lift HGV

    This vehicle is the size of the largest bin lorries (for comparison) and is approximately 8.2m long x 2.6m wide x 4m high, often curtain sided so please note that if there are hanging branches etc, these vehicles will not attempt to drive down due to the possibility of damaging the vehicle and so it is recommended that a smaller vehicle is requested. Tanks will be lowered to the ground but not positioned as this is a kerbside delivery.  If a smaller vehicle is required, please email us at quoting your order number and name.


    HIAB Delivery

    HIAB delivery is available but must be requested and there will be an additional cost for this service. If a HIAB delivery is required, please email us at quoting your order number and name, and we will come back to you with a price for this service.



    Most accessories will be delivered within 1-3 working days (certain products and postcodes may take longer, please check the product page for update to date information). If you require them quicker, we can on occasions offer a next day service (please contact us to discuss). If the item(s) are out of stock, we will advise you of the expected lead time, and you will of course have the opportunity to cancel with a full refund.



    Megaflo Eco 145 Litre Direct Unvented Hot Water Cylinder Returns Information

    Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

    All Items must be returned unused, refunds cannot be issued for used or previously installed items.

    Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

    If you wish to return goods, please complete the form on this page to provide further information.

    Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

    Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

    Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.

    View Fuel Tank Shop return policy now.
