Diesel Flow Meter - 1 Inch

Product Ref: FM4A

Home Delivery

United Kingdom mainland delivery from £9.95 ex VAT

Parcel Delivery (Highlands & Islands are charged a higher fee than standard)

check delivery cost


Diesel Flow Meter - 1 Inch Description

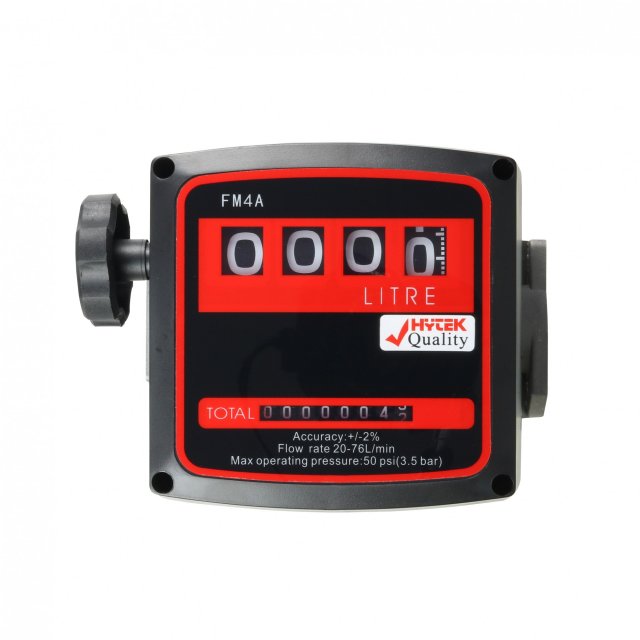

1" Diesel Flow Meter- Diesel Version

The Hytek mechanical flow meter is reliable, inexpensive, easy to install and simple to callibrate in the workplace. Suitable for gravity and electric pump systems. 4 digit subtotals, 7 digit totals.

Robust nutating disc flow meter shows up to 9999 litres


  • Flow rate range 20-76 l/min
  • Only suitable with diesel or biodiesel up to B30
  • Robust nutating disc flow meter shows up to 9999 litres
  • 1” BSPF ports.
  • Max. pressure 50 psi (3.5 bar).
  • Accuracy +/- 2% with adjustable calibration.
  • Aluminium housing.
  • 4 digit register. 8 digit non resettable totaliser.
  • Front face can be rotated in 90 degree increments.

Diesel Flow Meter - 1 Inch Specification

  • Product Code: HY
  • Suitable For Fuel: Diesel, Gas Oil
