Contoil VZO 15/25 Mechanical Oil Meter

Product Ref: CTS2303

Lead time approx. 3 - 5 working days. VZO15 Pulse version currently out of stock with supplier. Lead time approx. 5 weeks

Home Delivery

United Kingdom mainland delivery from £9.95 ex VAT

Parcel Delivery (Highlands & Islands are charged a higher fee than standard)

check delivery cost

Choose option:


Contoil VZO 15/25 Mechanical Oil Meter Description

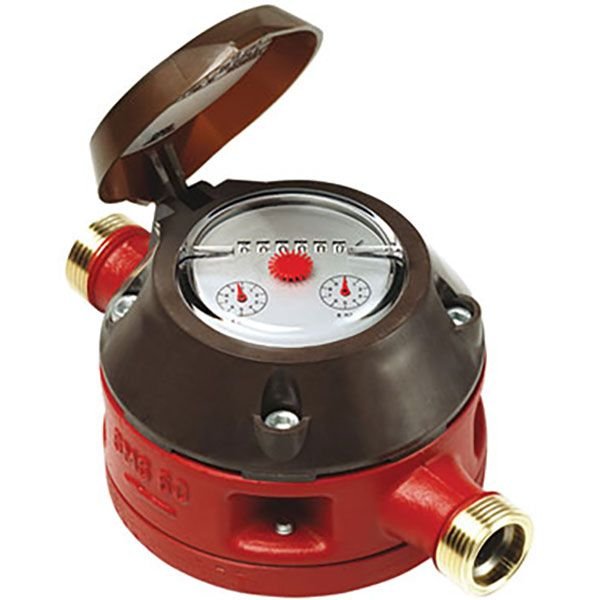

Contoil VZO 15/25 Mechanical Oil Meter

This industry recognised Contoil VZO 15/25 Mechanical Oil Meter is a mechanical display meter for accurately measuring fuel oil consumption. These versions of the Contoil oil flow meter range are designed for use with marine and industrial applications to measure fuel consumption for the likes of boilers, engines and generators. These mechanical display meters can be retrofitted to any existing boiler/burner systems, and are adaptable for installation indoors, outdoors, vertically, horizontally and diagonally. A version of this fuel flow meter is also available with reed switch Pulse Output to transmit consumption information to an external management system or remote display.

  • Mechanical display meter

  • Flow rate: 10-400ltr Per Hour

  • +/-1% accuracy

  • 7 digit non-resettable totaliser

  • Dial indicating 0.09l (VZO15) / and 0.9l (VZO25)

  • VZO15: ½” M BSP inlet/outlet

  • VZO25: 1” M BSP inlet/outlet

  • Maximum operating temperature of +130°C

  • Indoor or outdoor use

  • Can be retrofitted to existing boiler/burner system

  • Lloyds shipping, Germanischer Lloyd & Det Norske Vertias marine certifications available

Contoil VZO 15/25 Mechanical Oil Meter Specification

  • Product Code: CT
  • Suitable For Fuel: Diesel, Gas Oil, Clean Oil

Contoil VZO 15/25 Mechanical Oil Meter Delivery Information


The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page.  Standard tank deliveries are "kerbside" which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.


Tanks Over 2500L – Articulated Lorry – Customer Offload:

These tanks will be delivered on an articulated vehicle (approximately 16.5m long x 2.6m wide x 3m high) which has no offloading on board, it is the customer's responsibility to offload the tank, which may require a telehandler / forklift.  Curtain sided vehicles are also used, so please note that if there are obstacles or hanging branches on the road to the delivery site etc, the driver may refuse to drive the vehicle to the customer's location due to the possibility of damaging the vehicle. Please let us know if there are any obstructions before delivery, so we can arrange alternative transport.


18 Tonne Tail Lift HGV

This vehicle is the size of the largest bin lorries (for comparison) and is approximately 8.2m long x 2.6m wide x 4m high, often curtain sided so please note that if there are hanging branches etc, these vehicles will not attempt to drive down due to the possibility of damaging the vehicle and so it is recommended that a smaller vehicle is requested. Tanks will be lowered to the ground but not positioned as this is a kerbside delivery.  If a smaller vehicle is required, please email us at quoting your order number and name.


HIAB Delivery

HIAB delivery is available but must be requested and there will be an additional cost for this service. If a HIAB delivery is required, please email us at quoting your order number and name, and we will come back to you with a price for this service.



Most accessories will be delivered within 1-3 working days (certain products and postcodes may take longer, please check the product page for update to date information). If you require them quicker, we can on occasions offer a next day service (please contact us to discuss). If the item(s) are out of stock, we will advise you of the expected lead time, and you will of course have the opportunity to cancel with a full refund.



Contoil VZO 15/25 Mechanical Oil Meter Returns Information

Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

All Items must be returned unused, refunds cannot be issued for used or previously installed items.

Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

If you wish to return goods, please complete the form on this page to provide further information.

Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.

View Fuel Tank Shop return policy now.
