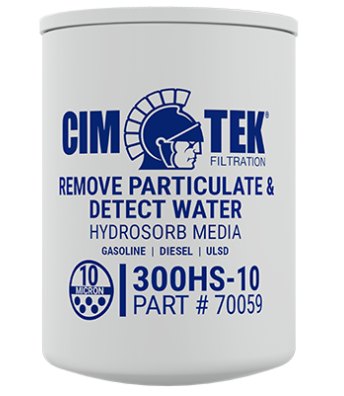

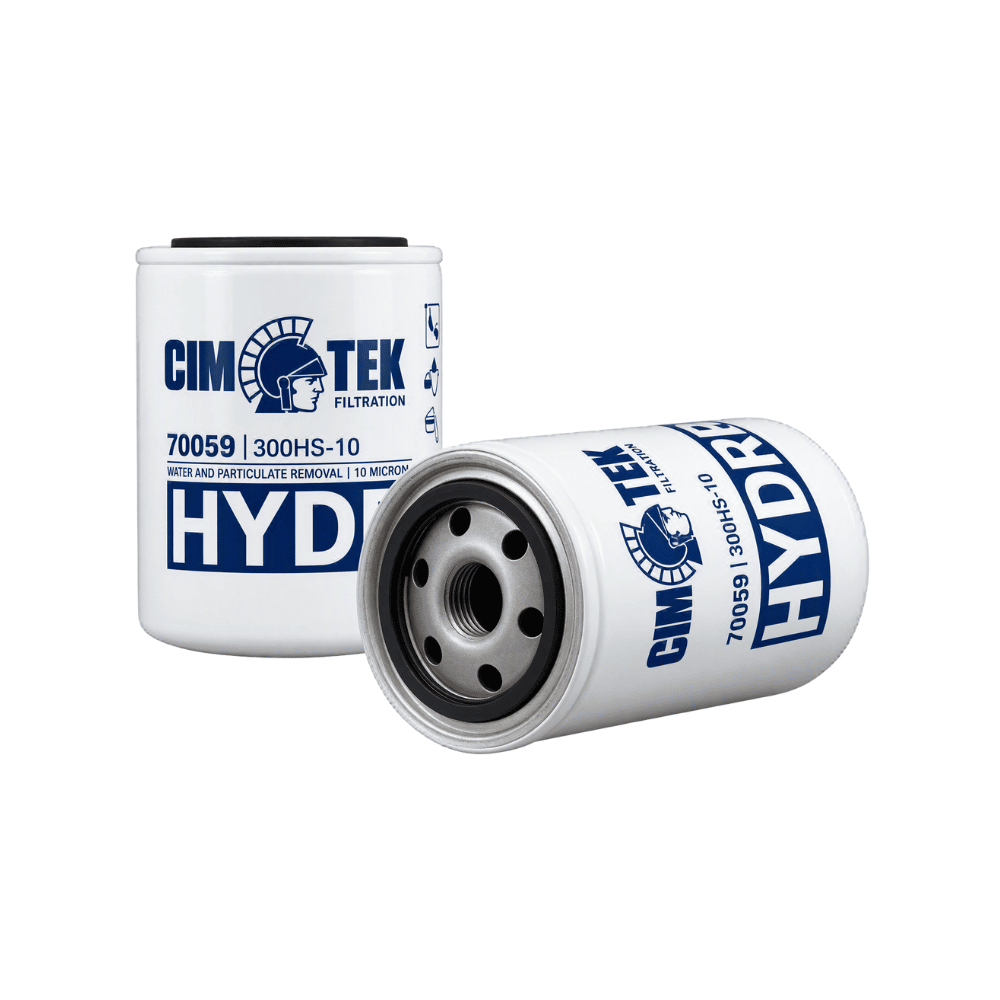

Cim-Tek 70059 300HS-10 Water & particulate fuel filter
Product Overview
Keep stored fuel cleaner and help protect your dispensing equipment with the Cim-Tek 70059 300HS-10 Water & Particulate Fuel Filter. Combining fine particulate filtration with water detection in a compact spin-on design, this filter provides a practical solution for diesel tanks, fuel dispensers and commercial refuelling equipment.
The 10-micron HYDROSORB filter is designed to remove fine particulate contamination while detecting water within the fuel. When water is present, the filter restricts fuel flow, providing an indication that attention is required.
Its compact, half-height design makes it particularly useful where installation space is limited, including the DESO H range of diesel tanks and FM1200CST.
Key Features
- 10-micron filtration to capture fine particulate contamination from fuel.
- Water detection helps identify the presence of water by restricting fuel flow when water is detected.
- combination of particulate removal and water detection within a single filter.
- Compact half-height design, ideal for installations with restricted clearance.
- Spin-on construction makes routine filter replacement straightforward.
- Suitable for diesel and ULSD applications.
- 1"-12 thread connection.
- Maximum working pressure of 50 PSI / 3.4 bar.
- Maximum differential pressure of 25 PSID / 1.7 bar.
- Not suitable for aviation applications.
Water & Particulate Protection
Contamination in stored fuel can cause problems for pumps, dispensing equipment and vehicles. The Cim-Tek 70059 uses 10-micron to remove particulate contamination while also detecting water within the fuel.
This dual-purpose design means a single filter can provide protection against two common sources of fuel contamination, making it well suited to everyday diesel storage and dispensing applications.
Water Detection
One of the key benefits of the Cim-Tek 300HS-10 is its ability to respond to water contamination. If water is detected, the filter is designed to slow the fuel flow, helping alert the operator that water is present and attention may be required.
This provides a useful additional safeguard for equipment supplied from stored fuel.
Compact Design for Limited Spaces
The Cim-Tek 70059 offers effective filtration in a compact package, making it particularly useful for installations where space around the dispensing equipment is limited.
Its half-height canister is ideal for fuel tank installations where a standard full-height filter may leave limited servicing clearance. It is suitable for use with the DESO H range of diesel tanks, making it a convenient replacement filter for compatible systems.
Simple Spin-On Replacement
The spin-on design helps make routine filter maintenance quick and straightforward. When the existing filter reaches the end of its service life, it can simply be removed from the filter head and replaced with a new element.
This replaceable design makes the Cim-Tek 70059 an excellent option for ongoing maintenance of diesel storage and dispensing equipment.
Specifications
| Product Ref | KSP |
|---|---|
| Volume (litres) | 0 |
| Diameter (mm) | 0 |
| Length (mm) | 0 |
| Width (mm) | 0 |
| Height (mm) | 0 |
| Weight (kg) | 0 |
