Air Operated Oil Pumps
Product Ref: AOP.1C/ AOP.3C/ AOP.5C
Home Delivery
United Kingdom mainland delivery from FREE ex VAT
Free Parcel Delivery (Highlands & Islands are charged a higher fee than standard)
login to saveAir Operated Oil Pumps Description

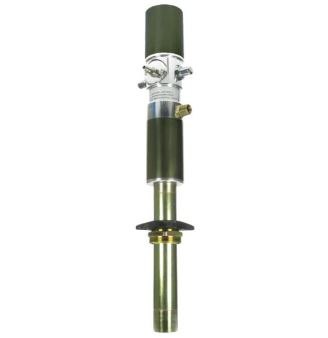

Air Operated Oil Pumps
Designed for efficiency in both garage and commercial workshop environments, this air-operated oil pump mounts directly onto oil tanks or drums for easy dispensing. Ideal for transferring oil into vehicles, jugs, or containers, it’s also compatible with multi-outlet hose reels for greater versatility. Backed by Hytek’s approval and a 2-year parts warranty, this pump delivers reliability and performance where it counts.
Product Features:
- Ration Options: 1:1, 3:1 & 5:1
- Inlet: 1" F BSPP
- Outlet: ½" M BSPP
- Air Inlet: ¼" F BSP
- AOP.1C (1:1) Suitable with waste oil (up to SAE 120)
- AOP3.C (3:1) Suitable with medium/ high viscosity oils (up to SAE 180)
- AOP.5C (5:1) Suitable with high density oils, or where long pipe runs & hose reels are in the line (up to SAE 240)
- Regulate air inlet pressure 70 - 115psi (5-8 bar)
- Max Pressure: 115PSI (8 bar)
- Robust, Reliable & are trouble free
- Stubby pump, comes with a 2" M BSPP drum/ tank adaptor
- 2 year warranty
- **Please Note: Filter regulator & lubricator must be fitted or warranty void**
Air Operated Oil Pumps Specification
- Product Code: HY
- Guarantee: 2 Year Guarantee
- Suitable For Fuel: Waste Oil, Grease
