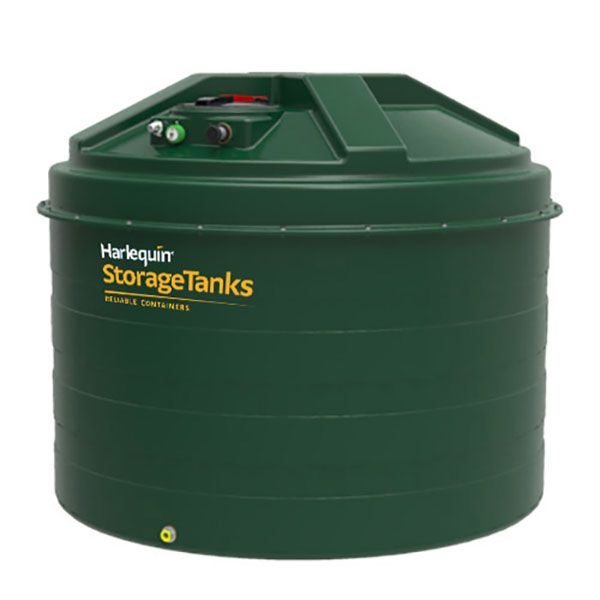

5400 Litre Bunded Oil Tank - Harlequin 5400ITE

Product Ref: 5400ITE / 5400ITT

Supplied complete with Apollo Standard & Bottom Outlet Fitting Kit (or Top Outlet)

10 Year Guarantee - Tank only Plastic Diesel, Gas Oil, Heating Oil, HVO Diesel, Gas Oil, Heating Oil, HVO Diesel, Gas Oil, Heating Oil, HVO Diesel, Gas Oil, Heating Oil, HVO Vertical Bunded
  • Volume: 5000ltr
  • Weight: 325.000kg
  • Dimensions: H:2125mm
  • Diameter: 2575mm
  • IN STOCK - Delivery in 10 Working Days - Bottom Outlet Only

    Home Delivery

    United Kingdom mainland delivery from FREE ex VAT

    FREE STANDARD Delivery for HARLEQUIN Tanks - Via articulated lorry, customer to off-load (Postcode exclusions apply to Highlands & Islands)

    check delivery cost

    Choose Outlet:
    Choose Contents Gauge:

    updown
    from £3,380.00 ex VAT
    (£4,056.00 inc VAT)
    You may also need:
    Tigerloop Original De-Aerator - External Fitting
    Tigerloop Original De-Aerator - External Fitting
    £43.33 ex VAT
    (£52.00 inc VAT)

    5400 Litre Bunded Oil Tank - Harlequin 5400ITE What is a bunded tank?

    A bunded tank consists of a 'tank within a tank'.

    The inner tank is the primary storage vessel, whilst the outer tank acts as a failsafe.

    In the event of a spill, surplus fuel will safely and securely be stored within the outer tank and an environmental pollution incident will be averted.

    5400 Litre Bunded Oil Tank - Harlequin 5400ITE Downloadable Documents

    5400 Litre Bunded Oil Tank - Harlequin 5400ITE Description

    5400ITE / 5400ITT 5400 Litre Harlequin Bunded Oil Tank c/w Apollo Standard & Bottom Outlet Fitting Kit.

    5400 litres (approx. 1188 gallons) bunded kerosene storage tank.

    This quality bunded heating oil tank is suitable for domestic, agricultural, industrial and commercial fuel oil storage.

    Supplied complete with:

    • Apollo Standard (Electronic Contents Gauge)
    • 32 mm Electronic Gauge Fitting Point
    • LRC Failsafe Overfill Prevention Probe
    • Anti-theft tank sticker, displaying the message 'THIS TANK IS ALARMED!'
    • 2" Fill Point
    • 4" Inspection Point
    • Vent
    • 1" BSP Bottom Outlet (complete with Bottom Outlet Fitting Kit/Isolation Valve & Filter), or
    • Atkinson 'Tank Top' Top Outlet System (comprising Floating Oil Tank Suction Line, Non-Return Valve, Fully Serviceable Filter, Anti-Siphon Valve, Self Prime Button and choice of Compression or Push Fit Oil Line Connections)
    • Lockable Manhole Cover

    Options:

    • Bottom Outlet (ITE) or Top Outlet (ITT)
    • Top Outlet tanks are a "Special Order" and therefore "Non-Returnable".

    Manufactured from high grade polyethylene, this British made Harlequin tank is corrosion resistant, has high impact strength and is UV stabilised. All Harlequin Plastics tanks are CE marked and comply with the latest European standards.

    5400 Litre Bunded Oil Tank - Harlequin 5400ITE Specification

    • Product Code: HQ
    • Guarantee: 10 Year Guarantee - Tank only
    • Made From: Plastic
    • Suitable For Fuel: Diesel, Gas Oil, Heating Oil, HVO
    • Tank Shape: Vertical
    • Tank Type: Bunded

    5400 Litre Bunded Oil Tank - Harlequin 5400ITE Installation requirements

    This Oil Tank must be installed and maintained in accordance to the current OFTEC guidelines, by an OFTEC Registered Technician or similarly competent person.

    Fuel Tank Shop and the manufacturer will not be responsible for oil tank installations which do not comply with these requirements.

    OFTEC Base Construction Guidelines (in brief):

    • Adequate for the weight of the tank when full
    • Non-combustible, imperforate and level
    • Constructed of concrete, paving stones or stonework
    • Large enough to extend 300 mm beyond ALL sides of the tanks

    5400 Litre Bunded Oil Tank - Harlequin 5400ITE Delivery Information

    Tanks:

    The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page.  Standard tank deliveries are "kerbside" which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.



    Tanks Over 2500L – Articulated Lorry – Customer Offload:

    These tanks will be delivered on an articulated vehicle (approximately 16.5m long x 2.6m wide x 3m high) which has no offloading on board, it is the customer's responsibility to offload the tank, which may require a telehandler / forklift.  Curtain sided vehicles are also used, so please note that if there are obstacles or hanging branches on the road to the delivery site etc, the driver may refuse to drive the vehicle to the customer's location due to the possibility of damaging the vehicle. Please let us know if there are any obstructions before delivery, so we can arrange alternative transport.



    18 Tonne Tail Lift HGV

    This vehicle is the size of the largest bin lorries (for comparison) and is approximately 8.2m long x 2.6m wide x 4m high, often curtain sided so please note that if there are hanging branches etc, these vehicles will not attempt to drive down due to the possibility of damaging the vehicle and so it is recommended that a smaller vehicle is requested. Tanks will be lowered to the ground but not positioned as this is a kerbside delivery.  If a smaller vehicle is required, please email us at sales@fueltankshop.co.uk quoting your order number and name.



    HIAB Delivery

    HIAB delivery is available but must be requested and there will be an additional cost for this service. If a HIAB delivery is required, please email us at sales@fueltankshop.co.uk quoting your order number and name, and we will come back to you with a price for this service.



    Accessories:

    Most accessories will be delivered within 1-3 working days. If you require them quicker, we can on occasions offer a next day service (please contact us to discuss). If the item(s) are out of stock, we will advise you of the expected lead time, and you will of course have the opportunity to cancel with a full refund.





    5400 Litre Bunded Oil Tank - Harlequin 5400ITE Returns Information

    Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

    All Items must be returned unused, refunds cannot be issued for used or previously installed items.

    Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

    If you wish to return goods, please complete the form on this page to provide further information.

    Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

    Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

    Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.

    View Fuel Tank Shop return policy now.
