5000 Litre Bunded Steel Waste Oil Tank

Product Ref: 5000FBWASTE

1 Year Guarantee Steel Waste Oil Horizontal Bunded
  • Volume: 5000ltr
  • Weight: 900.000kg
  • Dimensions: L:3050mm W:1250mm H:1500mm
  • Lead time approx. 4 - 6 weeks

    Home Delivery

    United Kingdom mainland delivery from FREE ex VAT

    FREE STANDARD Delivery for selected STEEL TANKS - TAIL LIFT Delivery (available for most tanks under 2500 litres) - Lowers tank to ground level to assist in off-loading (Additional charges may be applicable to Scotland, Highlands and Islands & N Ireland)

    check delivery cost


    5000 Litre Bunded Steel Waste Oil Tank What is a bunded tank?

    A bunded tank consists of a 'tank within a tank'.

    The inner tank is the primary storage vessel, whilst the outer tank acts as a failsafe.

    In the event of a spill, surplus fuel will safely and securely be stored within the outer tank and an environmental pollution incident will be averted.

    5000 Litre Bunded Steel Waste Oil Tank Description

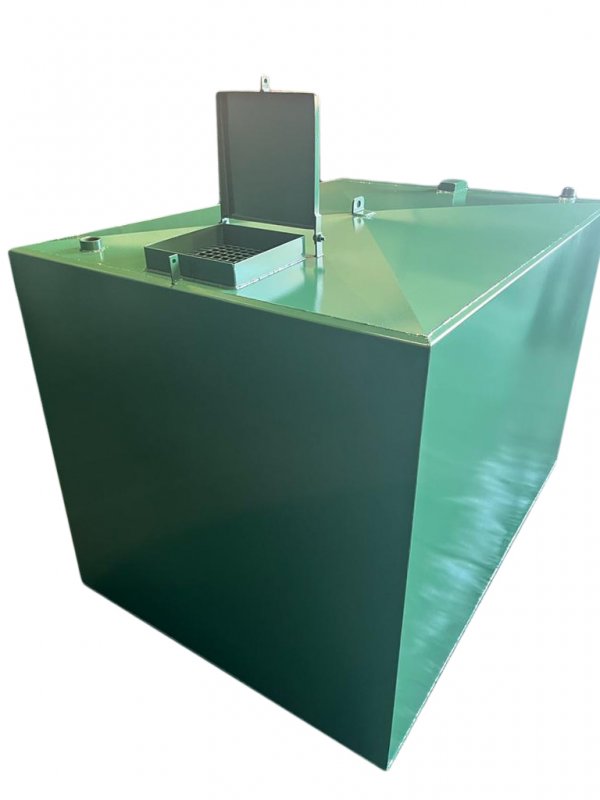

    5000 Litre Steel Bunded Waste Oil Tank

    Quality made budget tank.

    2500 litre (approx. 1100 gallons) bunded waste oil storage tank.

    This bunded steel waste oil tank is ideal for the storage of waste oil.

    Tank Specification:

    • Bunded Steel Tank (3mm)

    • Lockable Hatch With Mesh Screen

    • Socket for connection to automatic fill (not supplied)

    • Socket for suction tube to bottom of tank

    • 2" Vent (inc. Cap)

    • Socket for clock gauge. (Gauge not supplied but can be ordered separately - please select 6ft)

    • Undercoated in red oxide and top coated in gloss green paint

    Optional Extras:

    • Channel Runners - raising tank off the ground to keep tank base dry (not included in quoted height dimension)

    • Lifting Eye

    Compliant with:

    • Oil Pollution Prevention Guidelines (England & Wales) 2002 PPG2

    Images for illustrative purposes only

    5000 Litre Bunded Steel Waste Oil Tank Specification

    • Product Code: HH
    • Guarantee: 1 Year Guarantee
    • Made From: Steel
    • Suitable For Fuel: Waste Oil
    • Tank Shape: Horizontal
    • Tank Type: Bunded

    5000 Litre Bunded Steel Waste Oil Tank Tank Compliance

    Oil Pollution Prevention Guidelines (England & Wales) 2002 PPG2

    5000 Litre Bunded Steel Waste Oil Tank Delivery Information


    The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page.  Standard tank deliveries are "kerbside" which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.


    Tanks Over 2500L – Articulated Lorry – Customer Offload:

    These tanks will be delivered on an articulated vehicle (approximately 16.5m long x 2.6m wide x 3m high) which has no offloading on board, it is the customer's responsibility to offload the tank, which may require a telehandler / forklift.  Curtain sided vehicles are also used, so please note that if there are obstacles or hanging branches on the road to the delivery site etc, the driver may refuse to drive the vehicle to the customer's location due to the possibility of damaging the vehicle. Please let us know if there are any obstructions before delivery, so we can arrange alternative transport.


    18 Tonne Tail Lift HGV

    This vehicle is the size of the largest bin lorries (for comparison) and is approximately 8.2m long x 2.6m wide x 4m high, often curtain sided so please note that if there are hanging branches etc, these vehicles will not attempt to drive down due to the possibility of damaging the vehicle and so it is recommended that a smaller vehicle is requested. Tanks will be lowered to the ground but not positioned as this is a kerbside delivery.  If a smaller vehicle is required, please email us at sales@fueltankshop.co.uk quoting your order number and name.


    HIAB Delivery

    HIAB delivery is available but must be requested and there will be an additional cost for this service. If a HIAB delivery is required, please email us at sales@fueltankshop.co.uk quoting your order number and name, and we will come back to you with a price for this service.



    Most accessories will be delivered within 1-3 working days (certain products and postcodes may take longer, please check the product page for update to date information). If you require them quicker, we can on occasions offer a next day service (please contact us to discuss). If the item(s) are out of stock, we will advise you of the expected lead time, and you will of course have the opportunity to cancel with a full refund.



    5000 Litre Bunded Steel Waste Oil Tank Returns Information

    Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

    All Items must be returned unused, refunds cannot be issued for used or previously installed items.

    Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

    If you wish to return goods, please complete the form on this page to provide further information.

    Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

    Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

    Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.
