2000 Litre Animal Feeder Site Tow Bowser With Trough

Product Ref: TE2000SLAT

Water
  • Volume: 2000ltr
  • Weight: 460.000kg
  • Dimensions: L:3861mm W:1854mm H:1600mm
  • Custom Delivery Required

    Delivery price on application.

    Choose Colour:
    Choose Connector:

    updown
    £3,528.00 ex VAT
    (£4,233.60 inc VAT)

    2000 Litre Animal Feeder Site Tow Bowser With Trough Downloadable Documents

    2000 Litre Animal Feeder Site Tow Bowser With Trough Description

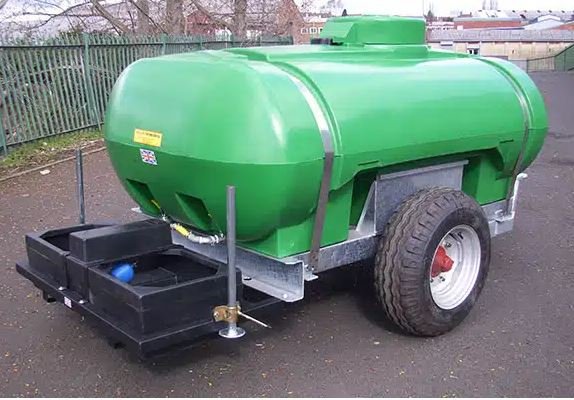

    2000 Litre Animal Feeder Site Tow Bowser With Trough

    This great Site Tow Animal Feeder with its large trough is ideal for off-roading across farmer's fields to deliver water to the livestock as it is manufactured with flotation wheels to enable good ground clearance and a fully welded chassis to ensure it is strong for those rough terrains.

     Fitted with two rear stabilising drop stands to make sure the trailer does not tip back when an animal is drinking from the trough. The trough has a self fill feature where it will refill the trough when the water has dropped below the required amount.

    • Great for use off-road with high clearance and flotation wheels
    • No need to refill the trough manually thanks to its built-in float switch
    • Safe and stable – deployable drop stands prevent the trailer tipping
    • Perfect for a wide range of livestock such as sheep, cattle, deer, and horses
    • Resistant to weather and wear with galvanised steel construction
    • Suitable For Drinking Water - Potable - Blue Only
    • Not WRAS Approved

    Technical Specifications

    CHASSIS:

    Our 2000 Litre Animal Feeder Site Bowser With Large Trough is constructed from a 5mm pressed steel section fully welded with a 100 x 50 R.S.C ‘A’ frame drawbar and a front standplate.

    AXLE/SUSPENSION:

    The Trailer Engineering 2000 Litre Animal Feeder Site Bowser With Large Trough Single comes with a solid beam axle fitted with 6 stud 205 PCD Hubs.

    WHEELS AND TYRES:

    2 No. 10.5 X 15 flotation tyres on 6 stud 205 PCD rims.

    COUPLING:

    2” Forged solid ring eye.

    TANK:

    Our 2000 Litre Animal Feeder Site Bowser With Large Trough comes with a polyethylene moulded tank, elliptical in section, with internal anti-surge baffle, 2” front draw off, 2 rear outlet connections, fitted with an 18” lockable outer hinged manlid cover, inner sealed vented manlid. Tank secured to chassis with 2 stainless steel straps.

    ANCILLARY EQUIPMENT:

    Front Screwjack. Atlas Plastics 30 Gallon Double Water Trough. Tough Strong and a leading industry product fitted with B.S Ball valve. Float protect by plastic cover. 2 rear prop stands.

    Dimensions of Animal Trough :- 47" x 19 x 11 (1193 x 482 x 280 mm)
    Capacity - 136 litres/ 30 Gal.

    FINISH:

    The 2000 Litre Animal Feeder Site Bowser With Large Trough's Poly tank is available in yellow, green, blue or red (blue drinking water) Galvanised chassis.

    PUMP:

    K1 semi rotary hand pump c/w in line ‘Y’ strainer, 15’ of 1" fuel hose & trigger nozzle. Options available on request: Electric Pump, Petrol Pump, Non Resale Flowmeter.

    FINISH

    Tank- Primer and two top coats, single British Standard colour. Galvanised Chassis.



    Only legal to be towed around a site, cannot be towed on public roads/highways

    2000 Litre Animal Feeder Site Tow Bowser With Trough Specification

    • Product Code: TE
    • Suitable For Fuel: Water

    2000 Litre Animal Feeder Site Tow Bowser With Trough Delivery Information

    Tanks:

    The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page.  Standard tank deliveries are "kerbside" which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.



    Tanks Over 2500L – Articulated Lorry – Customer Offload:

    These tanks will be delivered on an articulated vehicle (approximately 16.5m long x 2.6m wide x 3m high) which has no offloading on board, it is the customer's responsibility to offload the tank, which may require a telehandler / forklift.  Curtain sided vehicles are also used, so please note that if there are obstacles or hanging branches on the road to the delivery site etc, the driver may refuse to drive the vehicle to the customer's location due to the possibility of damaging the vehicle. Please let us know if there are any obstructions before delivery, so we can arrange alternative transport.



    18 Tonne Tail Lift HGV

    This vehicle is the size of the largest bin lorries (for comparison) and is approximately 8.2m long x 2.6m wide x 4m high, often curtain sided so please note that if there are hanging branches etc, these vehicles will not attempt to drive down due to the possibility of damaging the vehicle and so it is recommended that a smaller vehicle is requested. Tanks will be lowered to the ground but not positioned as this is a kerbside delivery.  If a smaller vehicle is required, please email us at sales@fueltankshop.co.uk quoting your order number and name.



    HIAB Delivery

    HIAB delivery is available but must be requested and there will be an additional cost for this service. If a HIAB delivery is required, please email us at sales@fueltankshop.co.uk quoting your order number and name, and we will come back to you with a price for this service.



    Accessories:

    Most accessories will be delivered within 1-3 working days. If you require them quicker, we can on occasions offer a next day service (please contact us to discuss). If the item(s) are out of stock, we will advise you of the expected lead time, and you will of course have the opportunity to cancel with a full refund.





    2000 Litre Animal Feeder Site Tow Bowser With Trough Returns Information

    Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

    All Items must be returned unused, refunds cannot be issued for used or previously installed items.

    Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

    If you wish to return goods, please complete the form on this page to provide further information.

    Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

    Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

    Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.
