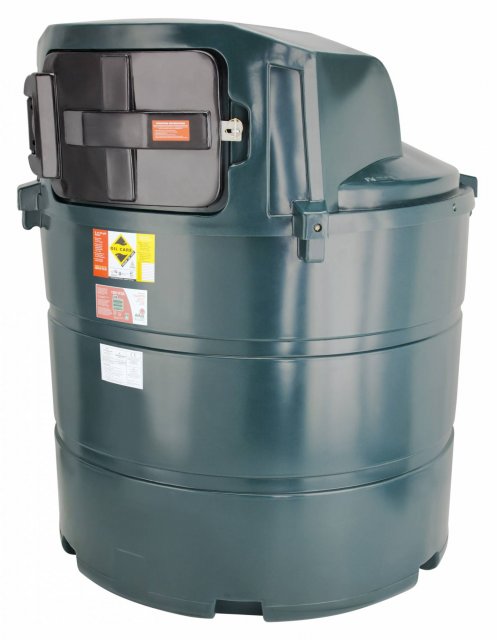

V1300VFDA Bunded Diesel Dispensing Tank
Product Overview
The Atlas 1300VFDA is a vertical 1,300 litre bunded diesel dispensing tank designed to provide secure on-site fuel storage and convenient refuelling for vehicles, plant and machinery. Manufactured from polyethylene and featuring a double-skinned tank-within-a-tank construction, it provides primary fuel storage together with secondary containment.

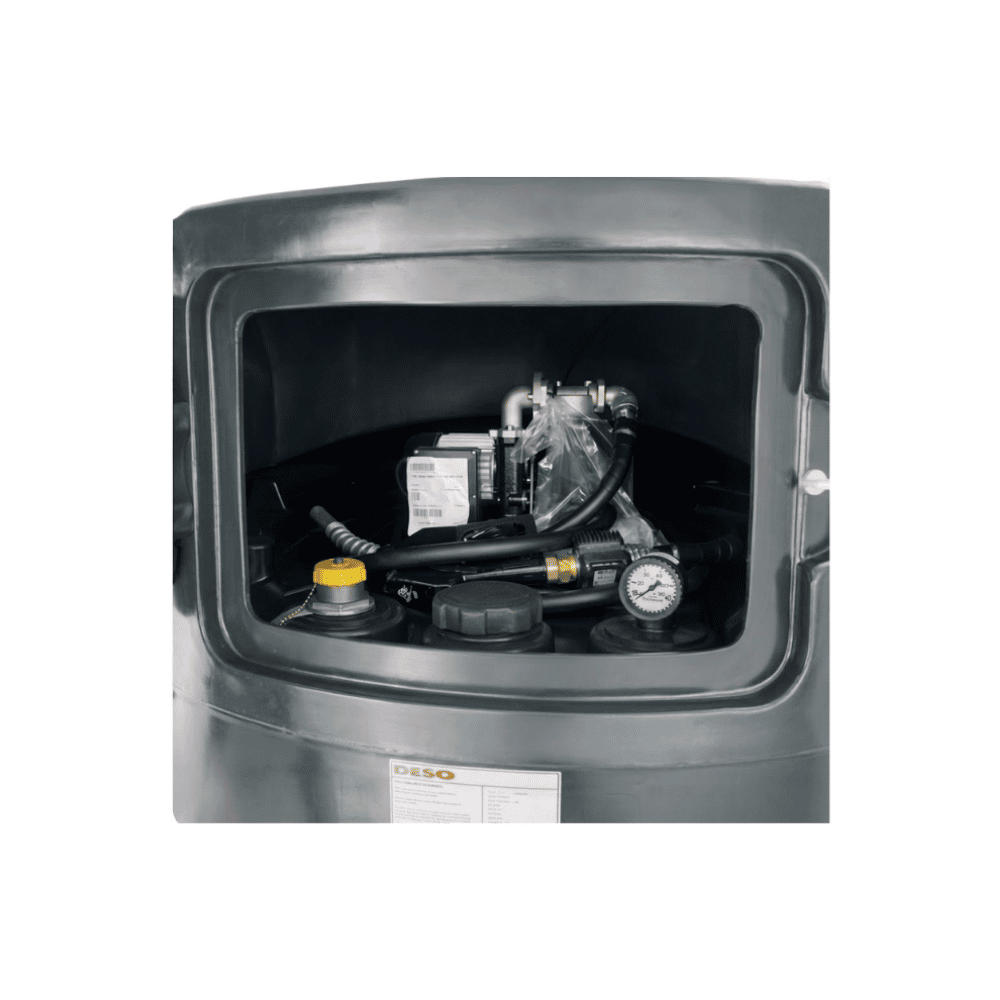

The standard model is supplied with an integral 72 litre-per-minute 230V pump, 6-metre delivery hose, automatic shut-off nozzle, 10-micron water and particulate filter, overfill prevention valve and float level gauge. The tank is suitable for the storage and dispensing of diesel, HVO and specified biodiesel blends.
Key Features
- 1,300 litre nominal fuel storage capacity
- Vertical bunded tank design
- Double-skinned tank-within-a-tank construction
- Polyethylene construction
- Suitable for diesel and HVO
- Suitable for specified biodiesel/FAME blends
- Integral 72 lpm 230V pump
- 6-metre delivery hose
- 3/4" hose
- Automatic shut-off nozzle
- 10-micron water and particulate filter
- Overfill prevention valve
- Float level gauge
- 1,390 × 1,390 mm approximate footprint
- 125 kg tank weight
- 10-year tank-only warranty
Standard Supplied complete with:
- 6 m Delivery Hose (3/4") with Automatic Shut Off Nozzle
- 10 Micron Water and Particulate Filter
- Overfill Prevention Valve
- Float level Gauge
- integral 72lpm 230V Pump
- Tank footprint 1390 mm
Advanced Supplied complete with:
As per the standard with the addition of:
- Digital Flowmeter
- Digital Level Gauge
Applications
The Atlas 1300VFDA is suitable for a range of agricultural, commercial, industrial and plant-related applications where regular access to stored diesel is required.
Typical applications include:
- Farms and agricultural businesses
- Construction and groundworks
- Plant and machinery operations
- Commercial vehicle fleets
- Plant hire businesses
- Workshops and depots
- Industrial sites
- Contractors and maintenance operations
- Businesses requiring on-site diesel storage and dispensing
Its vertical design provides a practical storage solution where a dedicated fuel dispensing point is required without the larger footprint associated with higher-capacity tanks.
Delivery
Standard tank delivery is kerbside, meaning the tank is delivered to the kerb and is not positioned into its final installation location. Customers are responsible for arranging suitable equipment and personnel to manoeuvre the tank into position.
The supplier states that tanks are lowered to ground level but are not positioned as part of the standard kerbside service. HIAB delivery is available by request at additional cost.
Specifications
| Product Ref | AT |
|---|---|
| Volume (litres) | 1,340 |
| Diameter (mm) | 1,410 |
| Height (mm) | 1,740 |
| Weight (kg) | 125 |
| Footprint (L+W) | 1390mm + 1390mm |
| Lead time (working days) | 7 |
Delivery Terms
Estimated Leadtime is 5 to 6 Working Days
The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page. Standard tank deliveries are "kerbside", which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.
Tanks over 2,500L — articulated lorry, customer offload
These tanks are delivered on an articulated vehicle (approximately 16.5m long × 2.6m wide × 3m high) which has no offloading on board. It is the customer's responsibility to offload the tank, which may require a telehandler or forklift.
Curtain-sided vehicles are also used, so please note that if there are obstacles or overhanging branches on the road to the delivery site, the driver may refuse to drive to the location due to the risk of damaging the vehicle. Please let us know about any obstructions before delivery so we can arrange alternative transport.
18-tonne tail-lift HGV
This vehicle is roughly the size of the largest bin lorries — approximately 8.2m long × 2.6m wide × 4m high, and often curtain-sided. If there are overhanging branches, these vehicles will not attempt the route, so a smaller vehicle should be requested.
Tanks are lowered to the ground but not positioned, as this is a kerbside delivery. If a smaller vehicle is required, email sales@fueltankshop.co.uk quoting your order number and name.
HIAB delivery
HIAB delivery is available but must be requested, and carries an additional cost. Email sales@fueltankshop.co.uk quoting your order number and name, and we'll come back to you with a price.
Accessories
Most accessories are delivered within 1–3 working days. Certain products and postcodes may take longer — check the product page for current information. If you need them sooner we can sometimes offer a next-day service; please contact us to discuss. If an item is out of stock we'll advise the expected lead time, and you're free to cancel for a full refund.
Returns Information
Customers may return items within 14 calendar days, as set out in section 7 of our Terms & Conditions.
All items must be returned unused. Refunds cannot be issued for used or previously installed items.
Please be aware that returning a tank can be complicated and expensive, so do check you're ordering the correct item — we strongly suggest checking the dimensions carefully before you buy.
How to return an item
- Complete the form on our returns page with details of your order.
- Once your request is approved, we'll issue a Returns Authorisation Number (RAN) along with instructions on how and where to return your order, and any costs involved.
- Please do not return any goods without this authorisation. Goods cannot be accepted without a valid RAN.
- Returns are not accepted at our Minehead office. Please wait until we contact you before returning anything.
